ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )CT150,ST15#..MTM

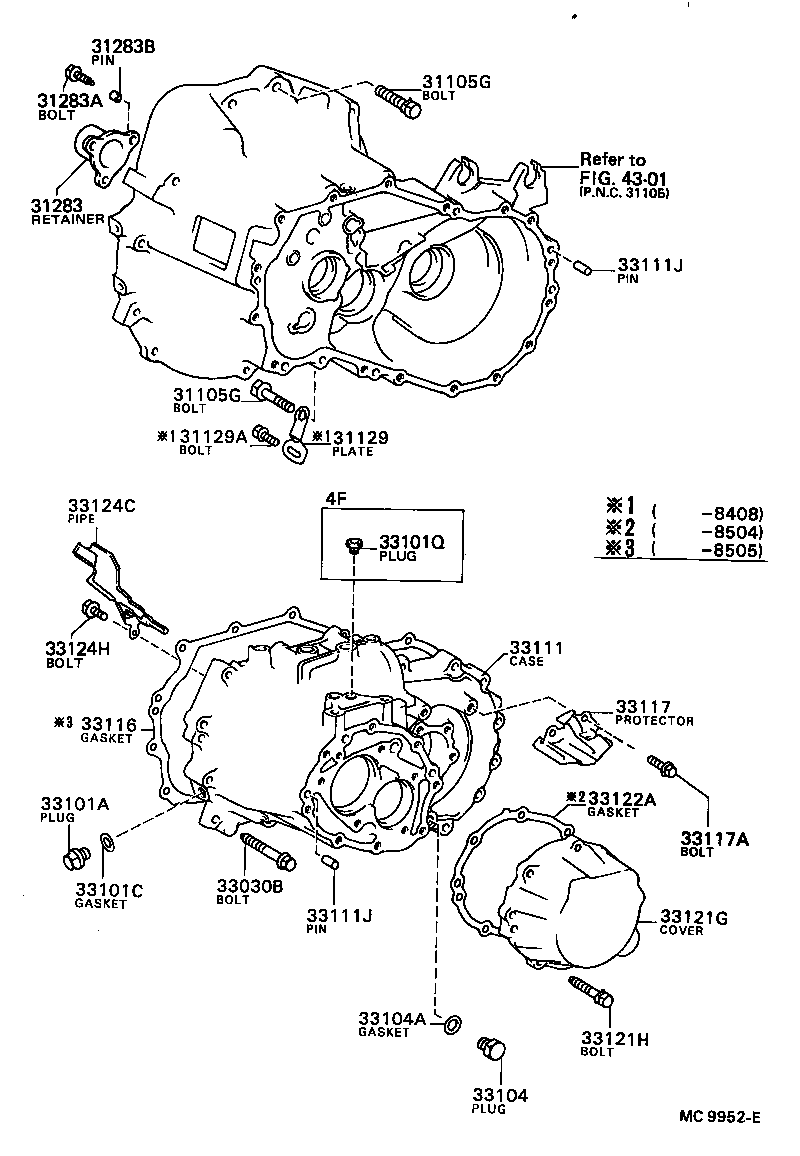

Click highlighted areas on diagram

diagram 31105G 31105G 31129 31129A 31283 31283A 31283B 33030B 33101A 33101C 33101Q 33104 33104A 33111 33111J 33111J 33116 33117 33117A 33121G 33121H 33122A 33124C 33124H 4301
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10055

CT150,ST150..MTM

*10-1.25PX43-26,*10-1.25PX43-26

 1
90119-12168

AT151,CT150,ST15#..MTM

*12-1.25PX55-30,*12-1.25PX55-30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10055

CT150,ST150..MTM

*10-1.25PX43-26,*10-1.25PX43-26

 1
90119-12168

AT151,CT150,ST15#..MTM

*12-1.25PX55-30,*12-1.25PX55-30

 3
31129 - PLATE, BOLT LOCK(MTM)
31129-32010

CT150,ST150..MTM

 1
31129A - BOLT(FOR BOLT LOCK PLATE)
90105-08040

CT150,ST150..MTM

 1
31283 - RETAINER, CLUTCH RELEASE BEARING HUB
31283-32010

CT150,ST15#..MTM

 1
31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90105-06023

CT150,ST15#..MTM

 3
31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90253-08002

CT150,ST15#..MTM

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08042

CT150,ST15#..MTM

*8-1.25PX45-27.5

 17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18002

CT150,ST15#..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18007

AT151,CT150,ST150..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

CT150,ST150..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18007

AT151,CT150,ST150..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-32011

CT150,ST150..MTM

 1
33111-32012

CT150,ST150..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AT151,CT150,ST15#..MTM

L=23,OD=8

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AT151,CT150,ST15#..MTM

L=23,OD=8

 6
33116 - GASKET, MANUAL TRANSMISSION CASE
33116-32011

CT150,ST150..MTM

 1
33116-32010

CT150,ST150..MTM

 1
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-32010

CT150,ST150..MTM

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

AT151,CT150,ST15#..MTM

 2
33121G - COVER, MANUAL TRANSMISSION CASE
33102-32010

CT150,ST150..MTM

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90105-08057

CT150,ST150..MTM

 8
33122A - GASKET, MANUAL TRANSMISSION CASE COVER
33122-32011

CT150,ST150..MTM

 1
33122-32010

CT150,ST150..MTM

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-32010

CT150,ST15#..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91651-60618

CT150,ST15#..MTM

 1
Linked diagrams
4301
