ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )1SL

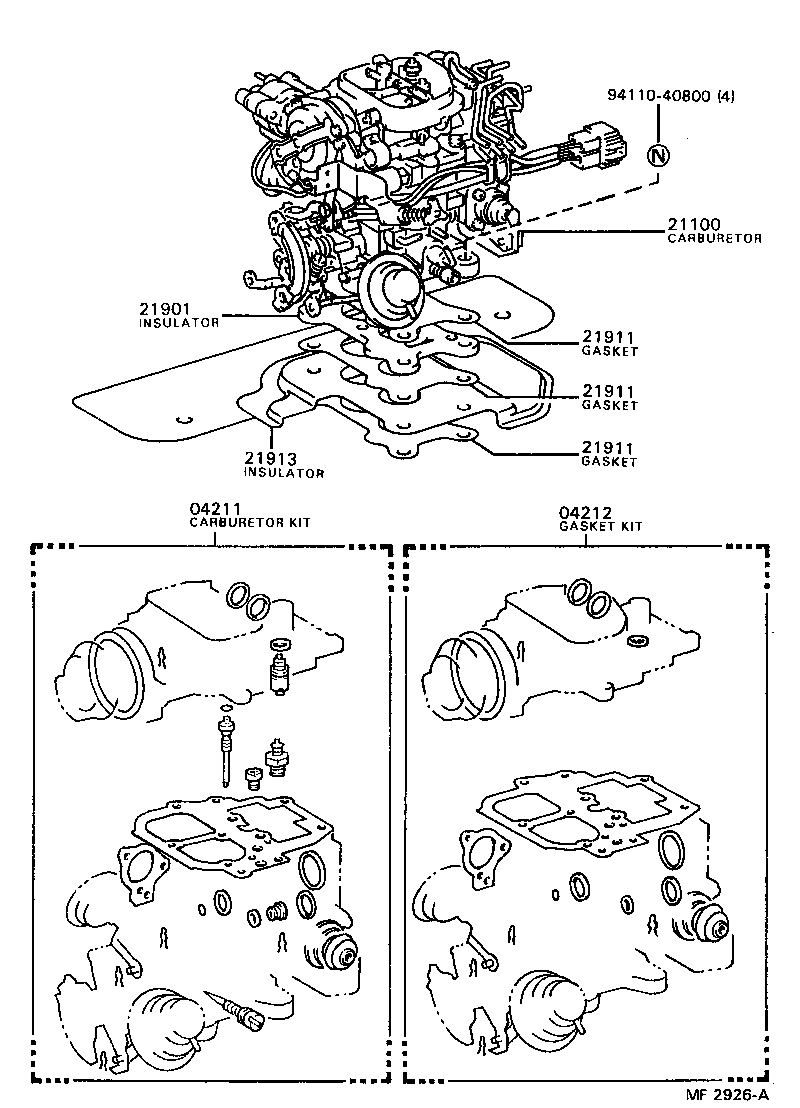

Click highlighted areas on diagram

diagram 04211 04212 21100 21901 21911 21911 21911 21913 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-63040

1SL..ST150..SAA

 1
04212 - GASKET KIT, CARBURETOR
04212-63010

1SL..ST150

 1
21100 - CARBURETOR ASSY
21100-63180

1SL..ST150..5F..SAA

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-63020

1SL..ST150

 1
21911 - GASKET, CARBURETOR
21911-63010

1SL..ST150

 3
21911 - GASKET, CARBURETOR
21911-63010

1SL..ST150

 3
21911 - GASKET, CARBURETOR
21911-63010

1SL..ST150

 3
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21902-63021

1SL..ST150

 1
Common parts
94110-40800
