ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )1SL

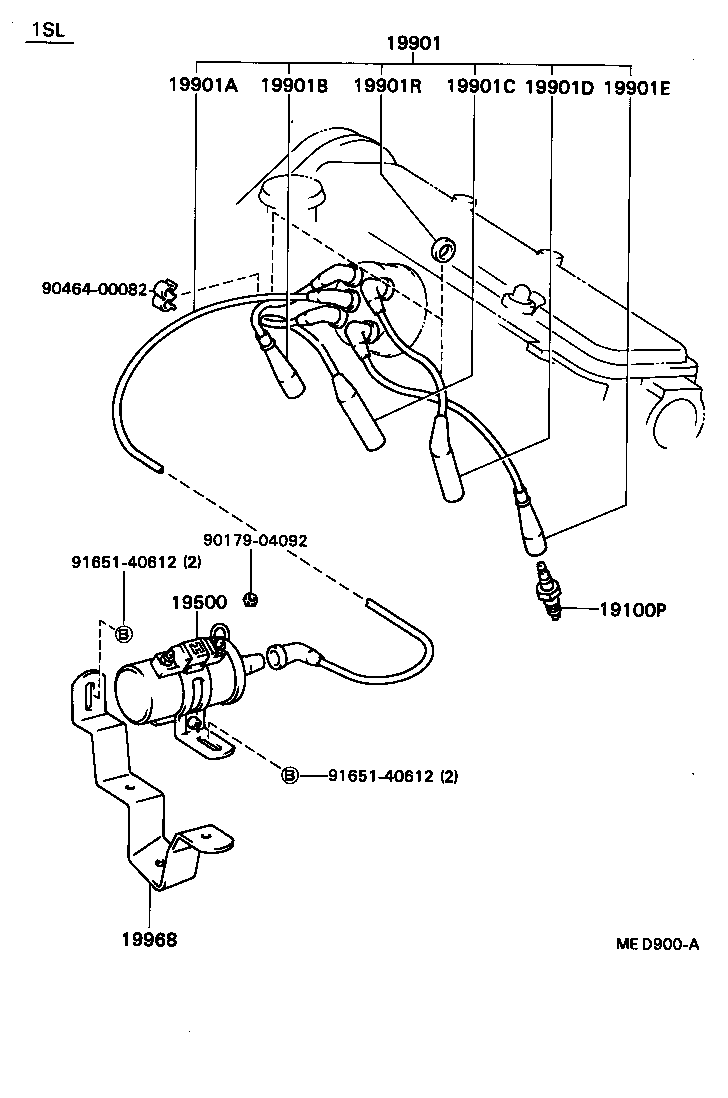

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901R 19968 9017904092 9046400082 9165140612 9165140612
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

1S#,2SEL..ST15#

W16EXR-U,W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02159

1SL..ST150

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21345

1SL..ST150

 1
19901A - CORD, COIL RESISTIVE
90919-13226

1SL..ST150

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12524

1SL..ST150

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12525

1SL..ST150

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12525

1SL..ST150

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12524

1SL..ST150

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

1SL..ST150

 2
19968 - BRACKET, IGNITION COIL
19968-63010

1SL..ST150

 1
Common parts
90179-04092
90464-00082
91651-40612
