ST150L-TLMDSV (1983)
Toyota Corona/Carina 2
Production
Oct 1983
-
Aug 1985
Engine
1SL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

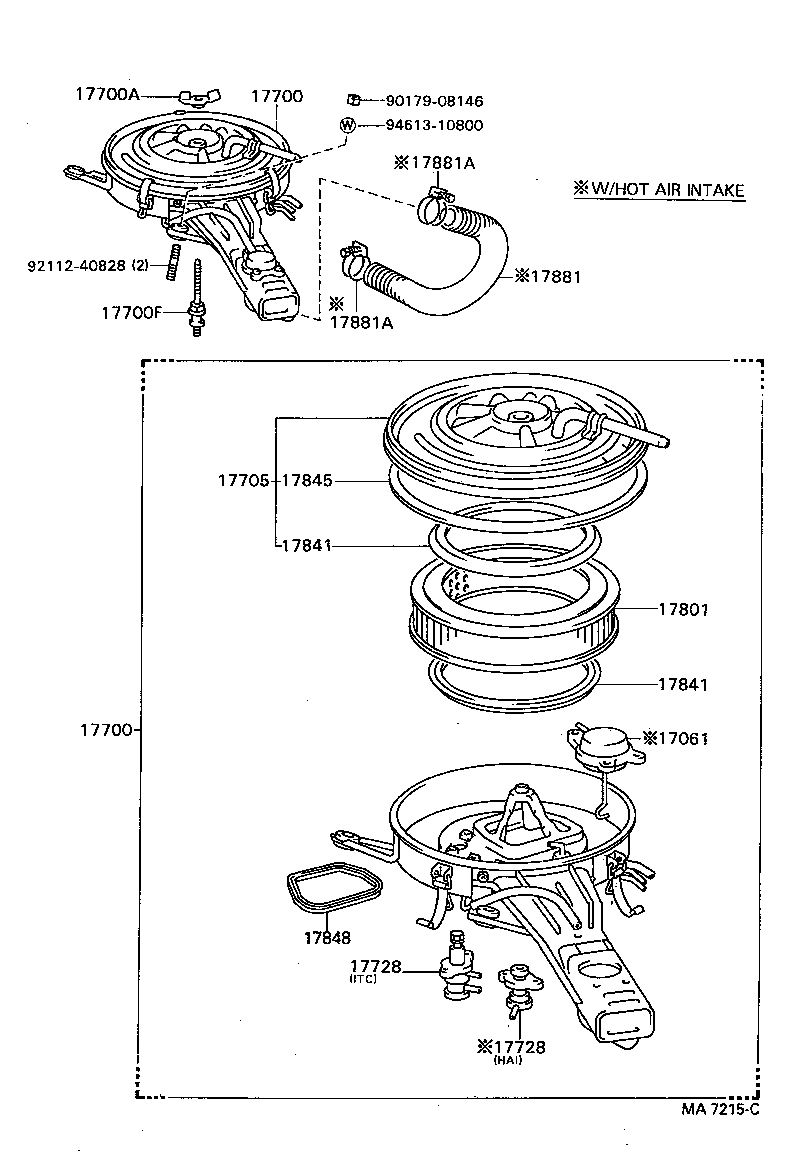

(8310- )1SL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-63050 |
1SL..ST150 |
1 | ||
| 17700-63060 |
1SL..ST150 W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-63050 |
1SL..ST150 |
1 | ||
| 17700-63060 |
1SL..ST150 W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06011 |
1SL..ST150 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06026 |
1SL..ST150 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-63030 |
1SL..ST150 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-63030 |
1SL..ST150 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-63030 |
1SL..ST150 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-25010 |
1SL..ST150 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-63010 |
1SL..ST150 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-63010 |
1SL..ST150 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-37020 |
1SL..ST150 *G,L=980 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-37011 |
1SL..ST150 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 92112-40828 | ||||
| 94613-10800 | ||||

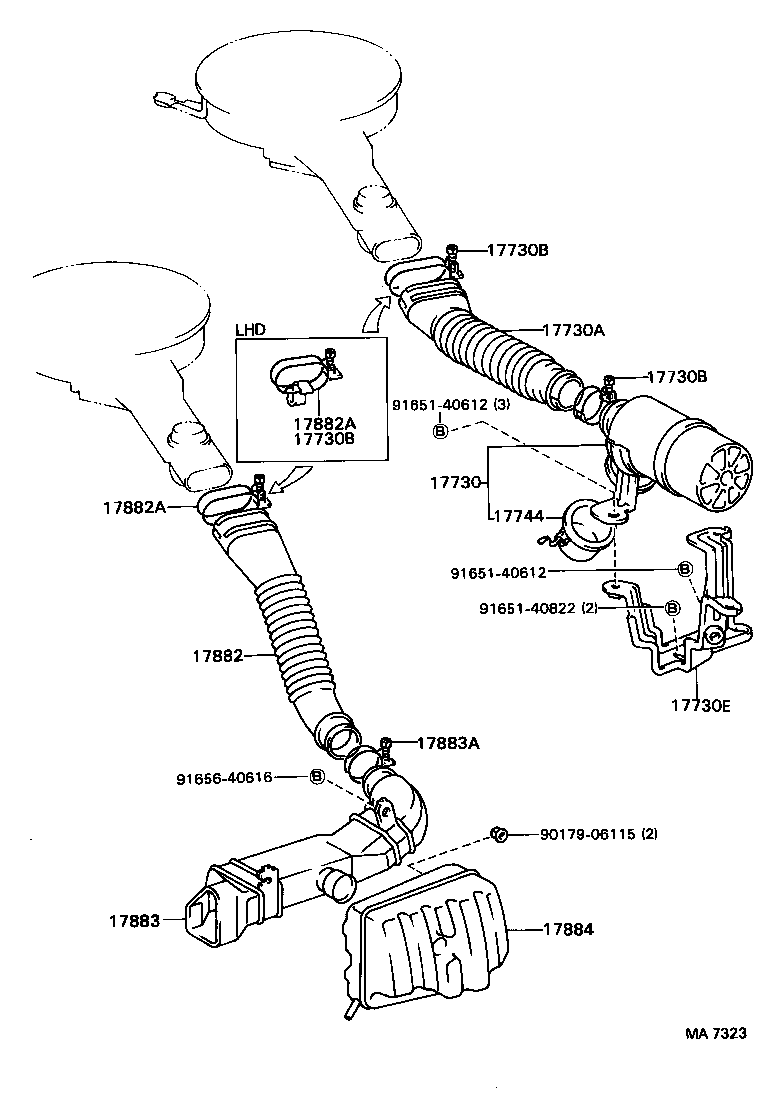

(8310- )1SL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-63010 |
1SL..ST150 |
1 | ||
| 17730A - HOSE, PRECLEANER | ||||
| 17881-63050 |
1SL..ST150 |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10600 |
1SL..ST150 PRE-CLEANER SIDE |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10600 |
1SL..ST150 PRE-CLEANER SIDE |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10600 |
1SL..ST150 PRE-CLEANER SIDE |
1 | ||
| 17730E - BRACKET, PRECLEANER, NO.1 | ||||
| 17741-16010 |
1SL..ST150..GEN,SAA W/PRE-CLEANER |
1 | ||
| 17744 - CUP, PRECLEANER | ||||
| 17744-16010 |
1SL..ST150..GEN,SAA W/PRE-CLEANER |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-20020 |
1SL..ST150..MTM |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 78194-32020 |
1SL..ST150..LHD |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 78194-32020 |
1SL..ST150..LHD |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-20050 |
1SL..ST150 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10650 |
1SL..ST150 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-20010 |
1SL..ST150..GEN,SAA |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91651-40612 | ||||
| 91651-40822 | ||||
| 91656-40616 | ||||
