ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )1S#,2SEL

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16443 16451 16452 16461 16462 16463 16491 16491A 16491B 16491C 16491D 16535
Part # Description Qty Price
16400 - RADIATOR ASSY
16410-63070

1SL..ST150..5F..SAA

 1
16410-63070

1SL..ST150..5F..SAA

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1S#,2SEL..ST15#

 1
23322-54010

1S#,2SEL..ST15#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

1S#,2SEL..ST15#

 1
96711-19007

1S#,2SEL..ST15#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

1S#,2SEL..ST15#

 1
16401-63010

1S#,2SEL..ST15#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-63030

1SL..ST150..5F..SAA

 1
16403-63030

1SL..ST150..5F..SAA

 1
16441 - TANK, RADIATOR, UPPER
16441-63030

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 1
16441-63030

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-63030

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 1
16442-63030

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-15321

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 2
16443-15321

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-63030

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 1
16451-63030

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-63030

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 1
16452-63030

1SL..ST150..3FC..(GEN,TH);1S#,2SEL..ST15#..4F,4FC,5F

 1
16461 - TANK, RADIATOR, LOWER
16461-63070

1S#,2SEL..ST15#..MTM

 1
16461-63070

1S#,2SEL..ST15#..MTM

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-63030

1S#,2SEL..ST15#

 1
16462-63030

1S#,2SEL..ST15#

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-15320

1S#,2SEL..ST15#

 2
16463-15320

1S#,2SEL..ST15#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-63020

1SL..ST150..5F..SAA

 2
16535-63020

1SL..ST150..5F..SAA

 2

(8310- )1S#,2SEL

Click highlighted areas on diagram

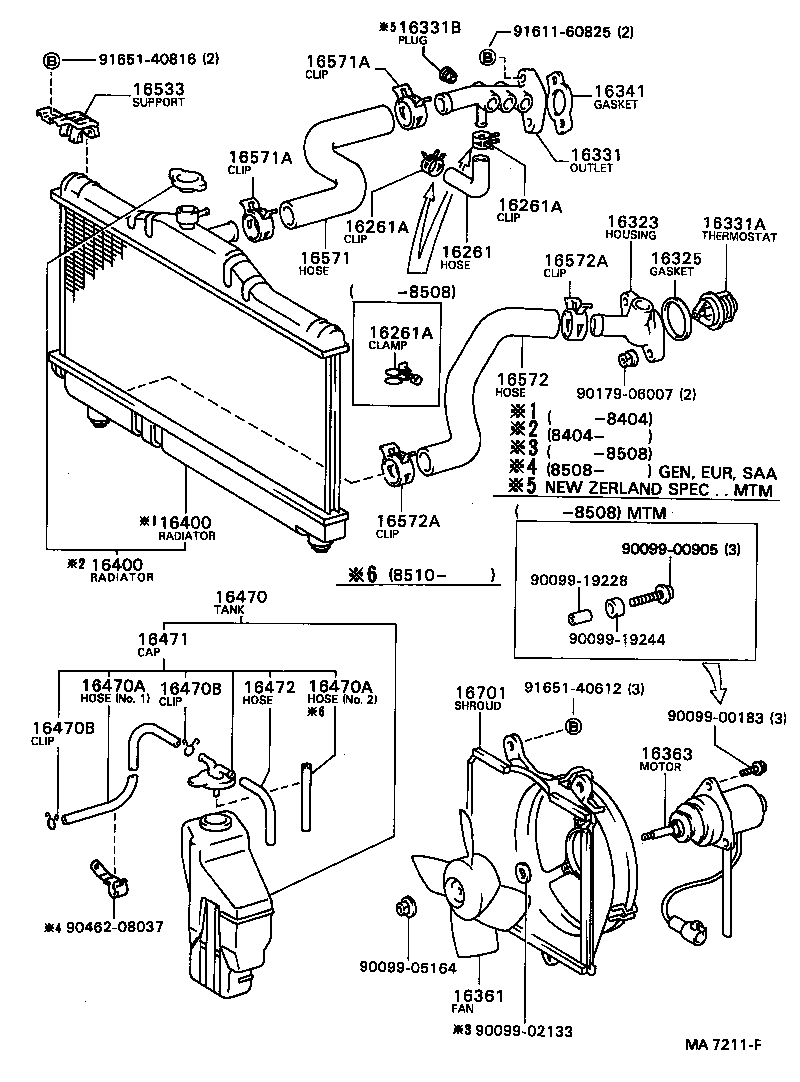

diagram 16261 16261A 16261A 16261A 16323 16325 16331 16331A 16331B 16341 16361 16363 16400 16400 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16571 16571A 16571A 16572 16572A 16572A 16701 9009900183 9009900905 9009902133 9009905164 9009919228 9009919244 9017906007 9046208037 9161160825 9165140612 9165140816
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-63010

1S#,2SEL..ST15#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

1SL..ST150

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

1SL..ST150

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

1SL..ST150

 2
16323 - HOUSING, WATER INLET
16323-63020

1S#,2SEL..ST15#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1S#,2SEL..ST15#

 1
16331 - OUTLET, WATER
16331-63060

1SL..ST150

 1
16331A - THERMOSTAT
90916-03046

1S#,2SEL..ST15#

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-63010

1S#,2SEL..ST15#

 1
16361 - FAN
16361-63030

1SL..ST150..MTM

 1
16363 - MOTOR, COOLING FAN
16363-15090

1SL..ST150..MTM

 1
16400 - RADIATOR ASSY
16410-63070

1SL..ST150..5F..SAA

 1
16400 - RADIATOR ASSY
16410-63070

1SL..ST150..5F..SAA

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-63030

1S#,2SEL..ST15#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

1S#,2SEL..ST15#

*H,L=480,NO.1

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

1S#,2SEL..ST15#

*H,L=480,NO.1

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1S#,2SEL..ST15#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1S#,2SEL..ST15#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-63030

1S#,2SEL..ST15#

 1
16472 - HOSE, BREATHER
85338-30010

1S#,2SEL..ST15#

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-63060

1SL..ST150..5F..SAA

 2
16571 - HOSE, RADIATOR, INLET
16571-63020

1S#,2SEL..ST15#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001

1SL..ST150

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001

1SL..ST150

 2
16572 - HOSE, RADIATOR, OUTLET
16572-63040

1S#,2SEL..ST15#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34001

1SL..ST150

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34001

1SL..ST150

 2
16701 - SHROUD SUB-ASSY, FAN
16711-63060

1SL..ST150..MTM

 1
Common parts
90099-00183
90099-00905
90099-02133
90099-05164
90099-19228
90099-19244
90179-06007
90462-08037
91611-60825
91651-40612
91651-40816
