ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )1S#,2SEL..MTM

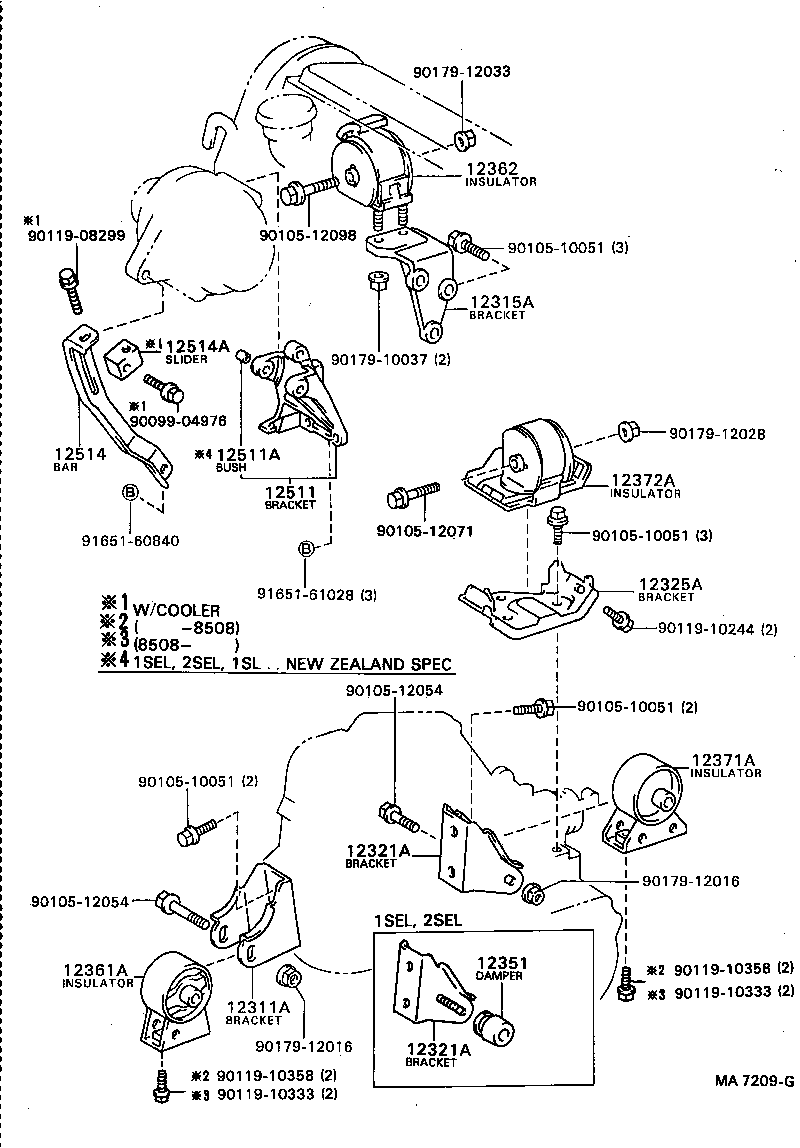

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12321A 12325A 12351 12361A 12362 12371A 12372A 12511 12511A 12514 12514A 3009904976 9010510051 9010510051 9010510051 9010510051 9010512054 9010512054 9010512071 9010512098 9011908299 9011910244 9011910333 9011910333 9011910358 9011910358 9017910037 9017912016 9017912016 9017912028 9017912033 9165160840 9165161028
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-63020

1SL..ST150..MTM

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-63020

1SL..ST150

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-63031

1SL..ST150..MTM

 1
12321-63030

1SL..ST150..MTM

 1
12321-63031

1SL..ST150..MTM

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-63031

1SL..ST150..MTM

 1
12321-63030

1SL..ST150..MTM

 1
12321-63031

1SL..ST150..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-63010

1S#,2SEL..ST15#..MTM

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-63030

1SL..ST150..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-63040

1SL..ST150

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-63031

1S#,2SEL..ST15#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-63010

1SL..ST150..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-63020

1SL..ST150

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-63010

1SL..ST150

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011

1SL..ST150

W/COOLER

 1
Common parts
30099-04976
90105-10051
90105-12054
90105-12071
90105-12098
90119-08299
90119-10244
90119-10333
90119-10358
90179-10037
90179-12016
90179-12028
90179-12033
91651-60840
91651-61028
