ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )1S#,2SEL

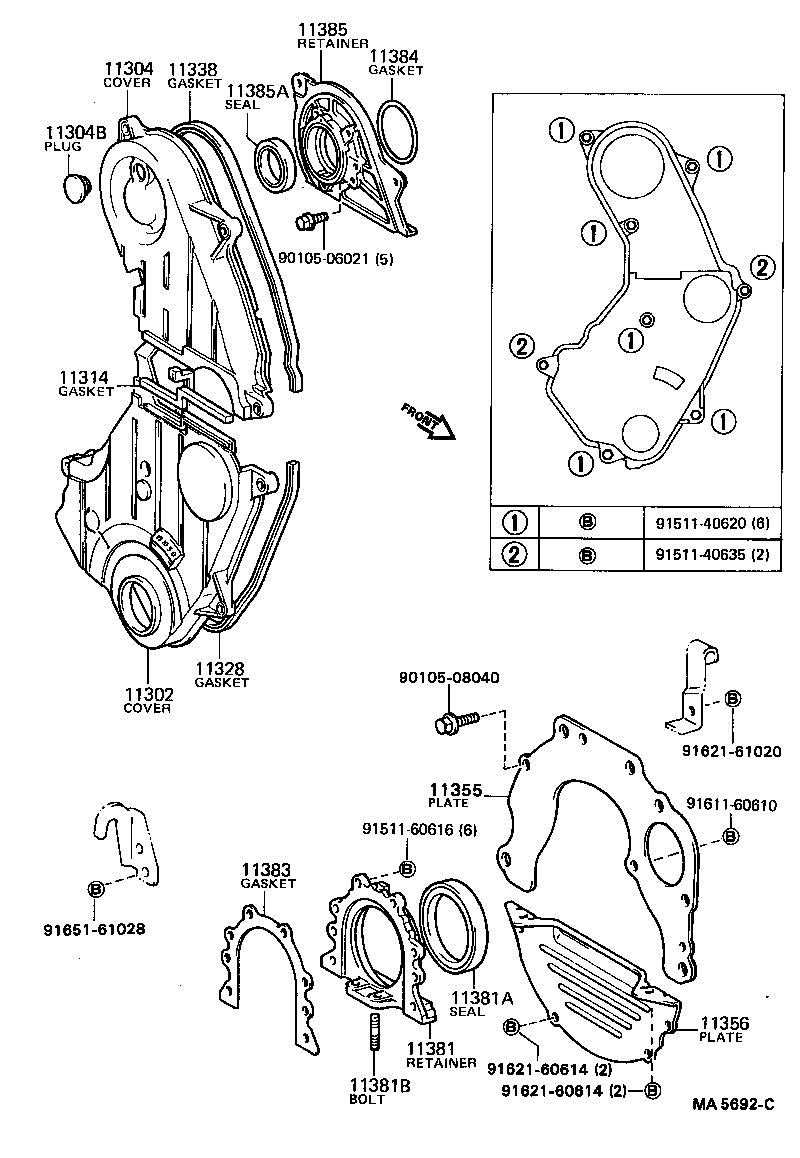

Click highlighted areas on diagram

diagram 11302 11304 11304B 11314 11328 11338 11355 11356 11381 11381A 11381B 11383 11384 11385 11385A 9010506021 9010508040 9151140620 9151140635 9151160616 9161160610 9162160614 9162160614 9162161020 9165161028
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-63010

1S#,2SEL..ST15#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-63010

1S#,2SEL..ST15#

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01334

1S#,2SEL..ST15#

 1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-63010

1S#,2SEL..ST15#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-63010

1S#,2SEL..ST15#

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11329-63010

1S#,2SEL..ST15#

 1
11355 - PLATE, REAR END
11355-63020

1S#,2SEL..ST15#

 1
11356 - PLATE, REAR END, NO.2
11356-63020

1S#,2SEL..ST15#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63010

1S#,2SEL..ST15#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85003

1S#,2SEL..ST15#

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06022

1S#,2SEL..ST15#

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-63010

1S#,2SEL..ST15#

 1
11384 - GASKET, OIL SEAL RETAINER, NO.2
90301-65002

1S#,2SEL..ST15#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-63010

1S#,2SEL..ST15#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38017

1SL..ST150

 1
Common parts
90105-06021
90105-08040
91511-40620
91511-40635
91511-60616
91611-60610
91621-60614
91621-61020
91651-61028
