ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )1S#,2SEL

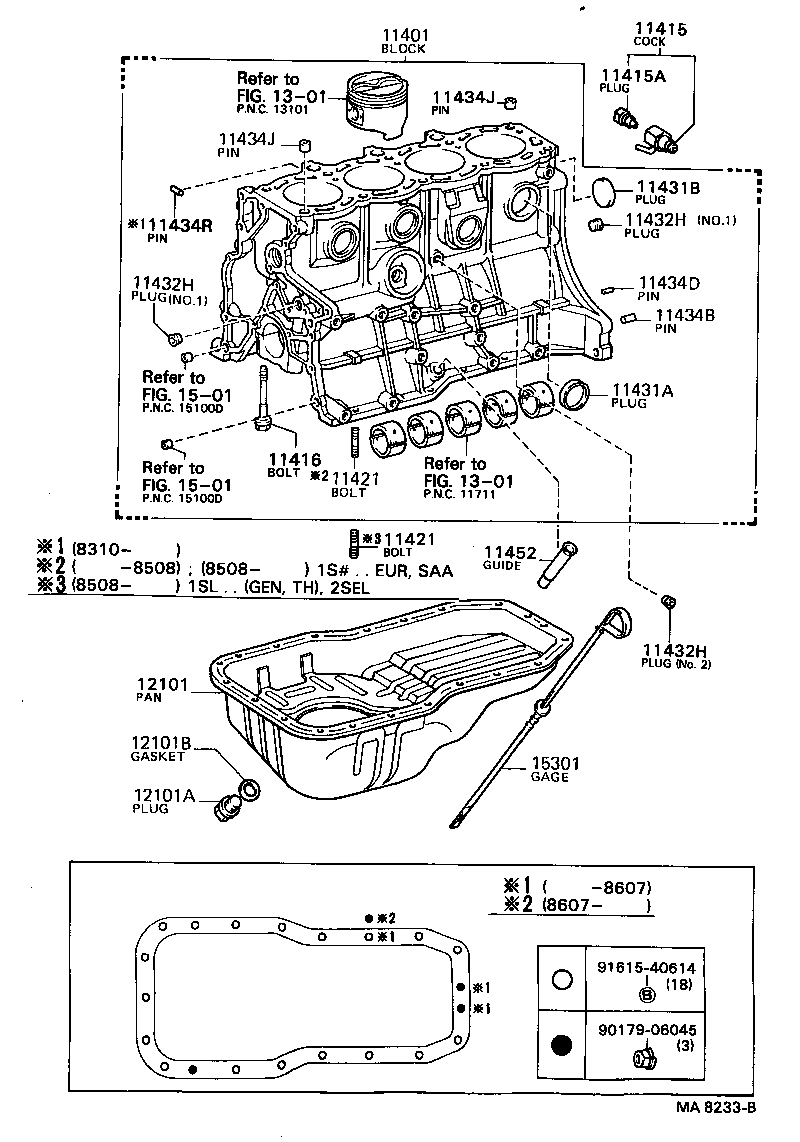

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11421 11421 11431A 11431B 11432H 11432H 11432H 11434B 11434D 11434J 11434J 11434R 11452 12101 12101A 12101B 1301 1301 1501 15301 9017906045 9161540614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69086

1SL..ST150

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09076

1S#,2SEL..ST15#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-14003

1S#,2SEL..ST15#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1S#,2SEL..ST15#

*10-1.25PX67-18

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

1SL..ST150

 2
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

1SL..ST150

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1S#,2SEL..ST15#

OD=35

 8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1S#,2SEL..ST15#

OD=40

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1S#,2SEL..ST15#

NO.1

 2
90344-52003

1S#,2SEL..ST15#

NO.2

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1S#,2SEL..ST15#

NO.1

 2
90344-52003

1S#,2SEL..ST15#

NO.2

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1S#,2SEL..ST15#

NO.1

 2
90344-52003

1S#,2SEL..ST15#

NO.2

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1S#,2SEL..ST15#

L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1S#,2SEL..ST15#

L=14,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1S#,2SEL..ST15#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1S#,2SEL..ST15#

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

1S#,2SEL..ST15#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-63020

1S#,2SEL..ST15#

 1
12101 - PAN SUB-ASSY, OIL
12101-63020

1S#,2SEL..ST15#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1SL..ST150

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1SL..ST150

 1
90430-18244

1SL..ST150

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-63020

1S#,2SEL..ST15#

 1
Common parts
90179-06045
91615-40614
Linked diagrams
1301
1501
