ST150L-TLMDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )1SL

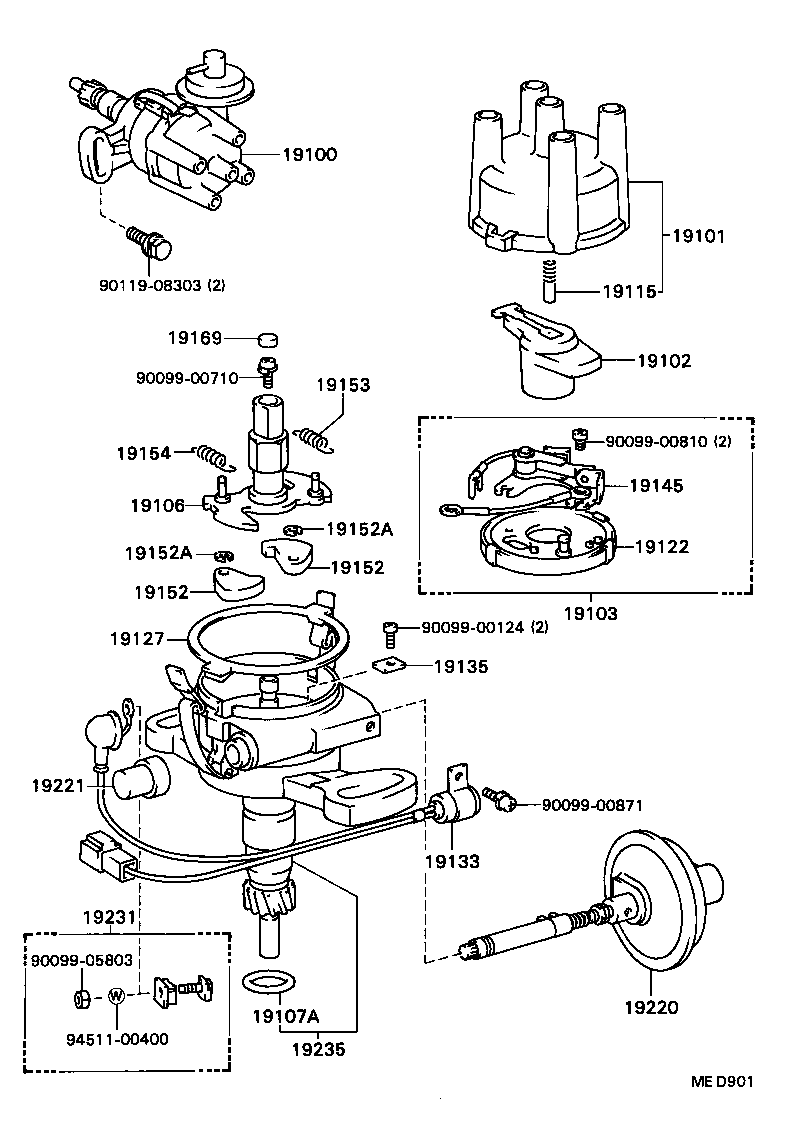

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19106 19107A 19115 19122 19127 19133 19135 19145 19152 19152 19152A 19152A 19153 19154 19169 19220 19221 19231 19235 9009900124 9009900710 9009900810 9009900871 9009905803 9011908303 9451100400
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-63010

1SL..ST150

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-71020

1SL..ST150

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-33012

1SL..ST150

 1
19102-33012

1SL..ST150

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-63010

1SL..ST150

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-38011

1SL..ST150

 1
19106-26022

1SL..ST150

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

1S#,2SEL..ST15#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1SL..ST150

 2
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-63012

1SL..ST150

 1
19127 - PACKING, DUST PROOF
19127-15010

1SL..ST150

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52068

1SL..ST150

 1
19135 - PLATE, HOLDER
90099-02198

1SL..ST150

 2
19145 - POINT, DISTRIBUTOR
19145-37030

1SL..ST150

 1
19152 - WEIGHT, GOVERNOR
19152-44170

1SL..ST150

 2
19152 - WEIGHT, GOVERNOR
19152-44170

1SL..ST150

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

1SL..ST150

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

1SL..ST150

 2
19153 - SPRING, GOVERNOR, A
19153-63012

1SL..ST150

 1
19154 - SPRING, GOVERNOR, B
19154-63012

1SL..ST150

 1
19154-63014

1SL..ST150

 1
19169 - STOPPER, CAM GREASE
19169-32010

1SL..ST150

 1
19169-63011

1SL,2SEL..ST15#

 1
19169-32010

1SL,2SEL..ST15#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-63012

1SL..ST150

 1
19221 - CAP, ADJUSTER, DISTRIBUTOR
19221-60040

1SL..ST150

 1
19221-30030

1SL..ST150

 1
19231 - TERMINAL, DISTRIBUTOR
19231-24140

1SL..ST150

 1
19235 - HOUSING, DISTRIBUTOR
19235-63012

1SL..ST150

 1
Common parts
90099-00124
90099-00710
90099-00810
90099-00871
90099-05803
90119-08303
94511-00400

(8508- )1SL,2SEL

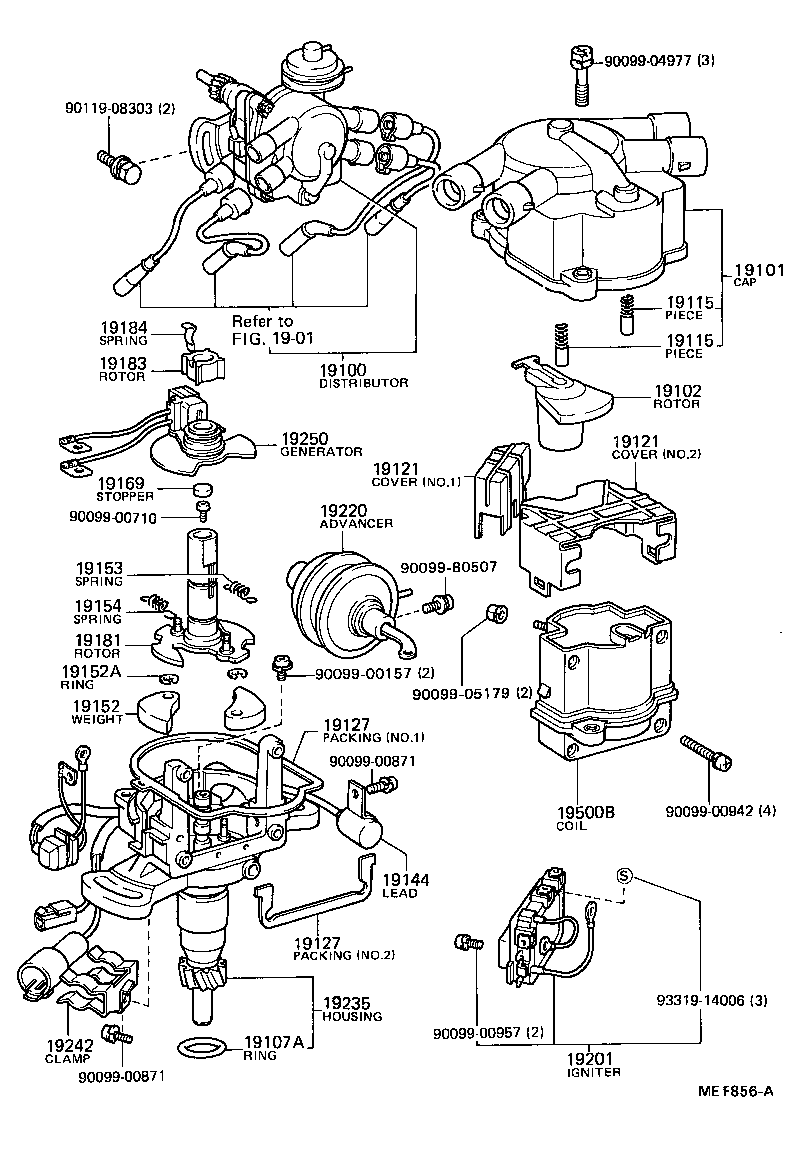

Click highlighted areas on diagram

(8508- )NEW ZEALAND SPEC

diagram 1901 19100 19101 19102 19107A 19115 19115 19121 19121 19127 19127 19144 19152 19152A 19153 19154 19169 19181 19183 19184 19201 19220 19235 19242 19250 19500B 9009900157 9009900710 9009900871 9009900871 9009900942 9009900957 9009904977 9009905179 9009980507 9011908303 9331914006
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-63010

1SL..ST150

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-71020

1SL..ST150

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-33012

1SL..ST150

 1
19102-33012

1SL..ST150

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

1S#,2SEL..ST15#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1SL..ST150

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1SL..ST150

 2
19127 - PACKING, DUST PROOF
19127-15010

1SL..ST150

 1
19127 - PACKING, DUST PROOF
19127-15010

1SL..ST150

 1
19152 - WEIGHT, GOVERNOR
19152-44170

1SL..ST150

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

1SL..ST150

 2
19153 - SPRING, GOVERNOR, A
19153-63012

1SL..ST150

 1
19154 - SPRING, GOVERNOR, B
19154-63012

1SL..ST150

 1
19154-63014

1SL..ST150

 1
19169 - STOPPER, CAM GREASE
19169-32010

1SL..ST150

 1
19169-63011

1SL,2SEL..ST15#

 1
19169-32010

1SL,2SEL..ST15#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-63012

1SL..ST150

 1
19235 - HOUSING, DISTRIBUTOR
19235-63012

1SL..ST150

 1
Common parts
90099-00157
90099-00710
90099-00871
90099-00942
90099-00957
90099-04977
90099-05179
90099-80507
90119-08303
93319-14006
Linked diagrams
1901
