ST150L-TEMNEW (1985)

Toyota Corona/Carina 2

Production Aug 1985 - Nov 1987
Engine 1SEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST151 ; (8508- )ST150..EUG

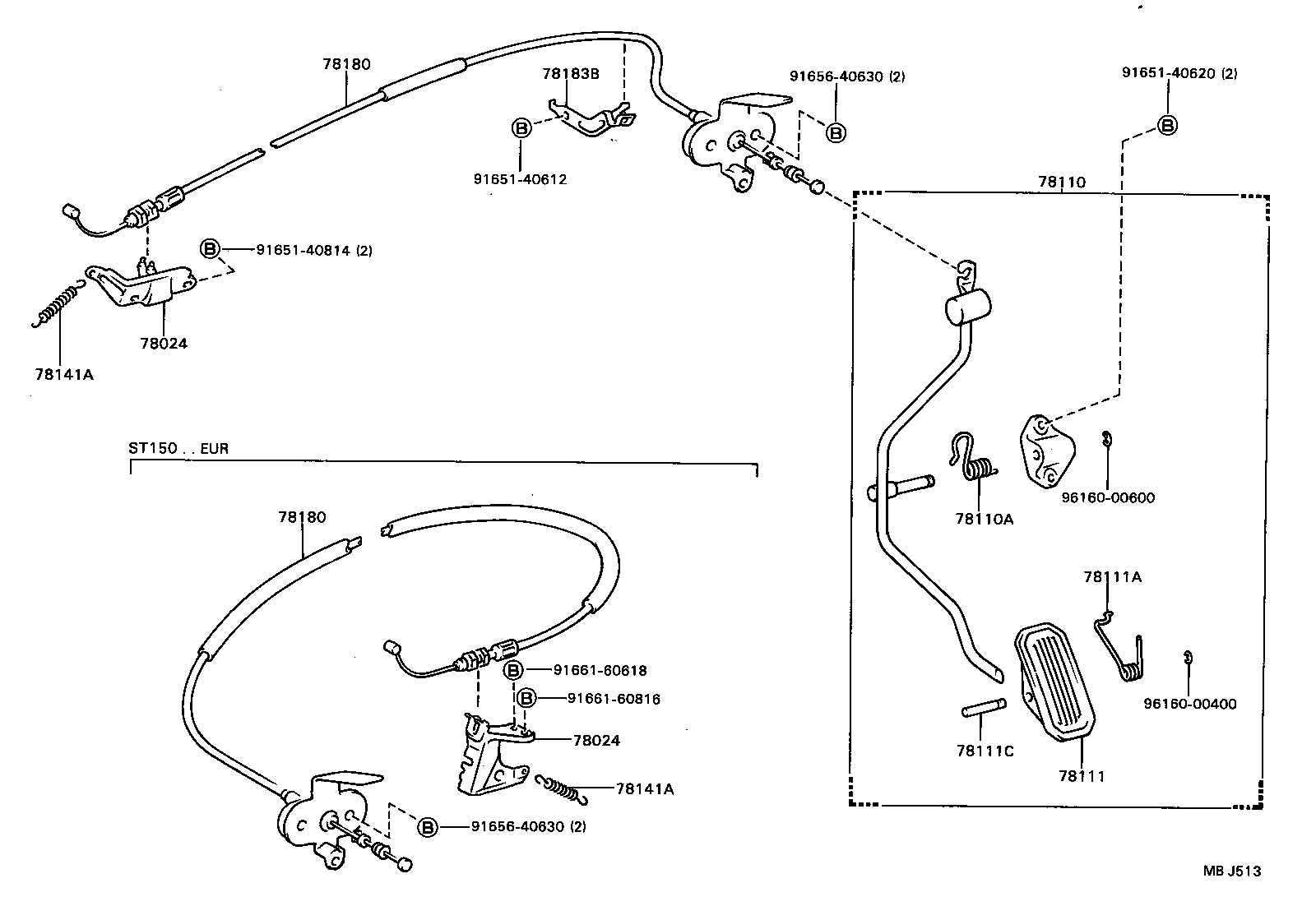

Click highlighted areas on diagram

diagram 78024 78024 78110 78110A 78111 78111A 78111C 78141A 78141A 78180 78180 78183B 9165140612 9165140620 9165140814 9165640630 9165640630 9166160618 9166160816 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32031

ST150..EUG

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32031

ST150..EUG

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-20220

AT151,CT150,ST150..LHD..MTM

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26062

AT151,CT150,ST150..LHD..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AT151,CT150,ST15#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT151,CT150,ST15#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT151,CT150,ST15#

 1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-11002

ST150..EUG

 1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-11002

ST150..EUG

 1
78180 - WIRE ASSY, ACCELERATOR
78180-20590

ST150..EUG

 1
78180 - WIRE ASSY, ACCELERATOR
78180-20590

ST150..EUG

 1
Common parts
91651-40612
91651-40620
91651-40814
91656-40630
91661-60618
91661-60816
96160-00400
96160-00600
