ST150L-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 1SL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )4AL#..EUG,SDZ ; (8508- )1SL ; (8508- )4AL..3FC

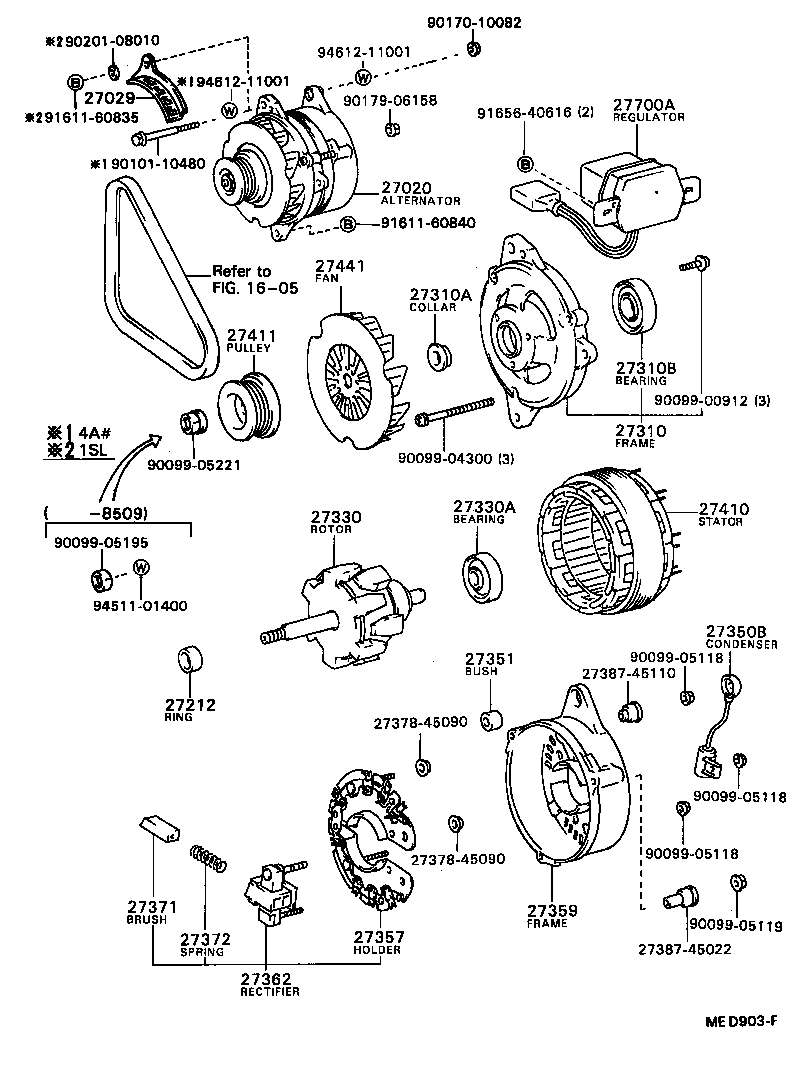

Click highlighted areas on diagram

diagram 1605 27020 27029 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27357 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27441 27700A 9009900912 9009904300 9009905118 9009905118 9009905118 9009905119 9009905195 9009905221 9010110480 9017010082 9017906158 9020108010 9161160835 9161160840 9165640616 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-63020

1SL..ST150

12V 70A,12V 70A

 1
27020-63080

1SL..ST150

12V 45A

 1
27060-63031

1SL..ST150

12V 60A,12V 60A

 1
27060-63030

1SL..ST150

12V 60A

 1
27020-63160

1SL..ST150

12V 50A

 1
27060-63021

1SL..ST150

12V 70A,12V 70A

 1
27029 - COVER, ALTERNATOR
27029-63030

1SL..ST150

12V 45A,50A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-15150

1SL..ST150

12V 50A

 1
27212-39050

1SL..ST150

12V 45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-63011

1SL..ST150

12V 50A

 1
27310-63021

1SL..ST150

12V 70A

 1
27310-63041

1SL..ST150

12V 60A

 1
27310-63080

1SL..ST150

12V 45A

 1
27310-63081

1SL..ST150

12V 45A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-16030

1SL..ST150

12V 45A

 1
27412-16040

1SL..ST150

12V 50A

 1
27412-63030

1SL..ST150

12V 45A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-16040

1SL..ST150

12V 45A

 1
27330-16030

1SL..ST150

12V 50A

 1
27330-10021

1SL..ST150

12V 60A

 1
27330-72100

1SL..ST150

12V 70A

 1
27330-10020

1SL..ST150

12V 60A

 1
27330-72101

1SL..ST150

12V 70A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

1SL..ST150

12V 50A

 1
90099-10111

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

1SL..ST150

12V 70A

 1
27357-15022

1SL..ST150

12V 50A

 1
27357-63040

1SL..ST150

12V 60A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-63021

1SL..ST150

12V 70A

 1
27359-16040

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27359-63010

1SL..ST150

12V 50A

 1
27359-63041

1SL..ST150

12V 60A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15022

1SL..ST150

12V 50A

 1
27362-18011

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

1SL..ST150

12V 50A

 1
27410-38120

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-63030

1SL..ST150

12V 45A,50A

 1
27441 - FAN, ALTERNATOR
27441-16040

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27441-15150

1SL..ST150

12V 50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15040

4AL#,2CL,1SL..AT151,CT150,ST150

12V 45A,50A,55A,60A

 1
27700-15040

4AL,2CL,1SL..AT151,CT150,ST150..GEN,SAA,TH

12V 45A,50A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05118
90099-05119
90099-05195
90099-05221
90101-10480
90170-10082
90179-06158
90201-08010
91611-60835
91611-60840
91656-40616
94511-01400
94612-11001
Linked diagrams
1605

(8310- )1SL

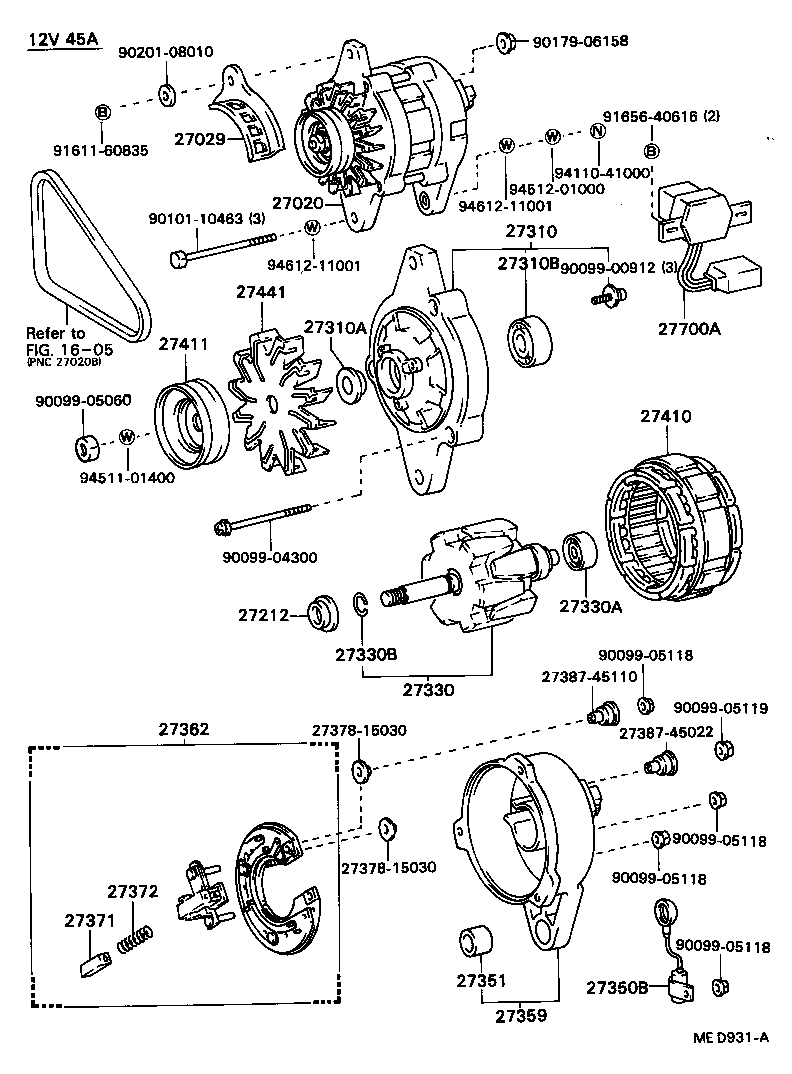

Click highlighted areas on diagram

diagram 1605 27020 27029 27212 27310 27310A 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110463 9017906158 9020108010 9161160835 9165640616 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-63020

1SL..ST150

12V 70A,12V 70A

 1
27020-63080

1SL..ST150

12V 45A

 1
27060-63031

1SL..ST150

12V 60A,12V 60A

 1
27060-63030

1SL..ST150

12V 60A

 1
27020-63160

1SL..ST150

12V 50A

 1
27060-63021

1SL..ST150

12V 70A,12V 70A

 1
27029 - COVER, ALTERNATOR
27029-63030

1SL..ST150

12V 45A,50A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-15150

1SL..ST150

12V 50A

 1
27212-39050

1SL..ST150

12V 45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-63011

1SL..ST150

12V 50A

 1
27310-63021

1SL..ST150

12V 70A

 1
27310-63041

1SL..ST150

12V 60A

 1
27310-63080

1SL..ST150

12V 45A

 1
27310-63081

1SL..ST150

12V 45A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-16030

1SL..ST150

12V 45A

 1
27412-16040

1SL..ST150

12V 50A

 1
27412-63030

1SL..ST150

12V 45A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-16040

1SL..ST150

12V 45A

 1
27330-16030

1SL..ST150

12V 50A

 1
27330-10021

1SL..ST150

12V 60A

 1
27330-72100

1SL..ST150

12V 70A

 1
27330-10020

1SL..ST150

12V 60A

 1
27330-72101

1SL..ST150

12V 70A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

1SL..ST150

12V 50A

 1
90099-10111

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-63021

1SL..ST150

12V 70A

 1
27359-16040

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27359-63010

1SL..ST150

12V 50A

 1
27359-63041

1SL..ST150

12V 60A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15022

1SL..ST150

12V 50A

 1
27362-18011

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

1SL..ST150

12V 50A

 1
27410-38120

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-63030

1SL..ST150

12V 45A,50A

 1
27441 - FAN, ALTERNATOR
27441-16040

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27441-15150

1SL..ST150

12V 50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15040

4AL#,2CL,1SL..AT151,CT150,ST150

12V 45A,50A,55A,60A

 1
27700-15040

4AL,2CL,1SL..AT151,CT150,ST150..GEN,SAA,TH

12V 45A,50A

 1
Common parts
27378-15030
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10463
90179-06158
90201-08010
91611-60835
91656-40616
94110-41000
94511-01400
94512-01000
94612-11001
Linked diagrams
1605

(8508- )4ALC,1S#,2SEL

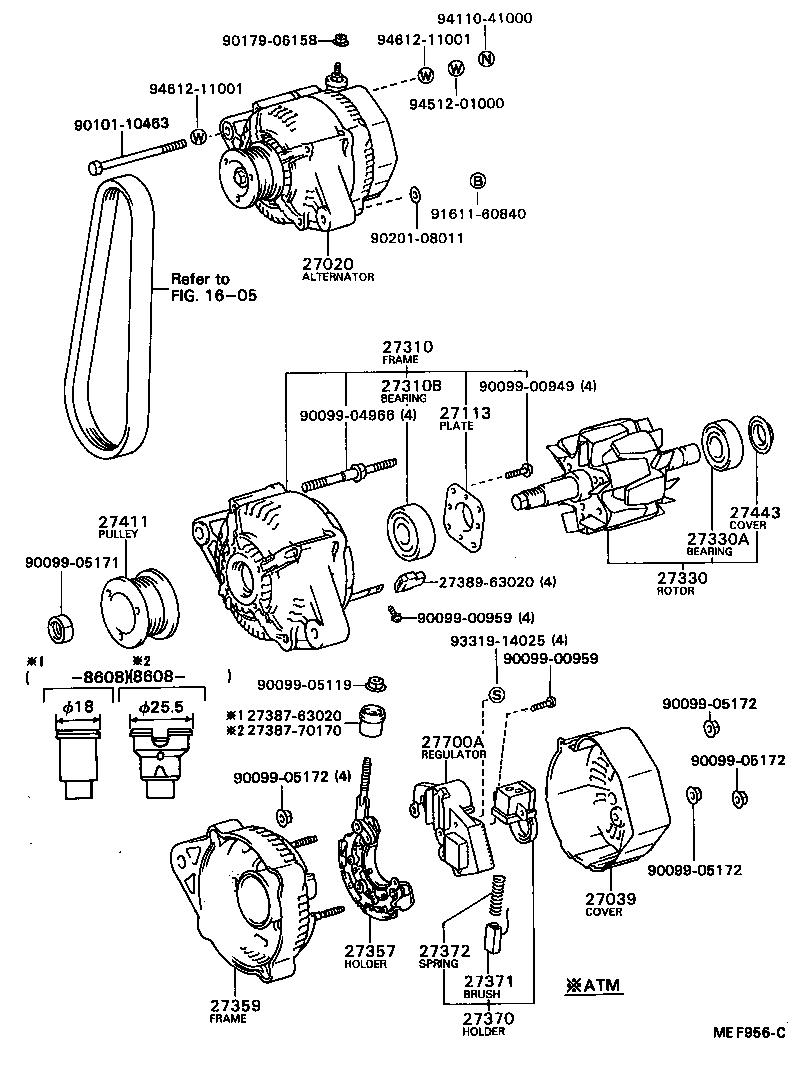

Click highlighted areas on diagram

diagram 1605 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738763020 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9010110463 9017906158 9020108011 9161160840 9331914025 9411041000 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-63020

1SL..ST150

12V 70A,12V 70A

 1
27020-63080

1SL..ST150

12V 45A

 1
27060-63031

1SL..ST150

12V 60A,12V 60A

 1
27060-63030

1SL..ST150

12V 60A

 1
27020-63160

1SL..ST150

12V 50A

 1
27060-63021

1SL..ST150

12V 70A,12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72110

1SL..ST150

12V 60A

 1
27039-72010

1SL..ST150

12V 70A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-63011

1SL..ST150

12V 50A

 1
27310-63021

1SL..ST150

12V 70A

 1
27310-63041

1SL..ST150

12V 60A

 1
27310-63080

1SL..ST150

12V 45A

 1
27310-63081

1SL..ST150

12V 45A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-16040

1SL..ST150

12V 45A

 1
27330-16030

1SL..ST150

12V 50A

 1
27330-10021

1SL..ST150

12V 60A

 1
27330-72100

1SL..ST150

12V 70A

 1
27330-10020

1SL..ST150

12V 60A

 1
27330-72101

1SL..ST150

12V 70A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

1SL..ST150

12V 50A

 1
90099-10111

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

1SL..ST150

12V 70A

 1
27357-15022

1SL..ST150

12V 50A

 1
27357-63040

1SL..ST150

12V 60A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-63021

1SL..ST150

12V 70A

 1
27359-16040

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27359-63010

1SL..ST150

12V 50A

 1
27359-63041

1SL..ST150

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 2
27411 - PULLEY, ALTERNATOR
27411-63030

1SL..ST150

12V 45A,50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15040

4AL#,2CL,1SL..AT151,CT150,ST150

12V 45A,50A,55A,60A

 1
27700-15040

4AL,2CL,1SL..AT151,CT150,ST150..GEN,SAA,TH

12V 45A,50A

 1
Common parts
27387-63020
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10463
90179-06158
90201-08011
91611-60840
93319-14025
94110-41000
94512-01000
94612-11001
Linked diagrams
1605
