ST150L-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 1SL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

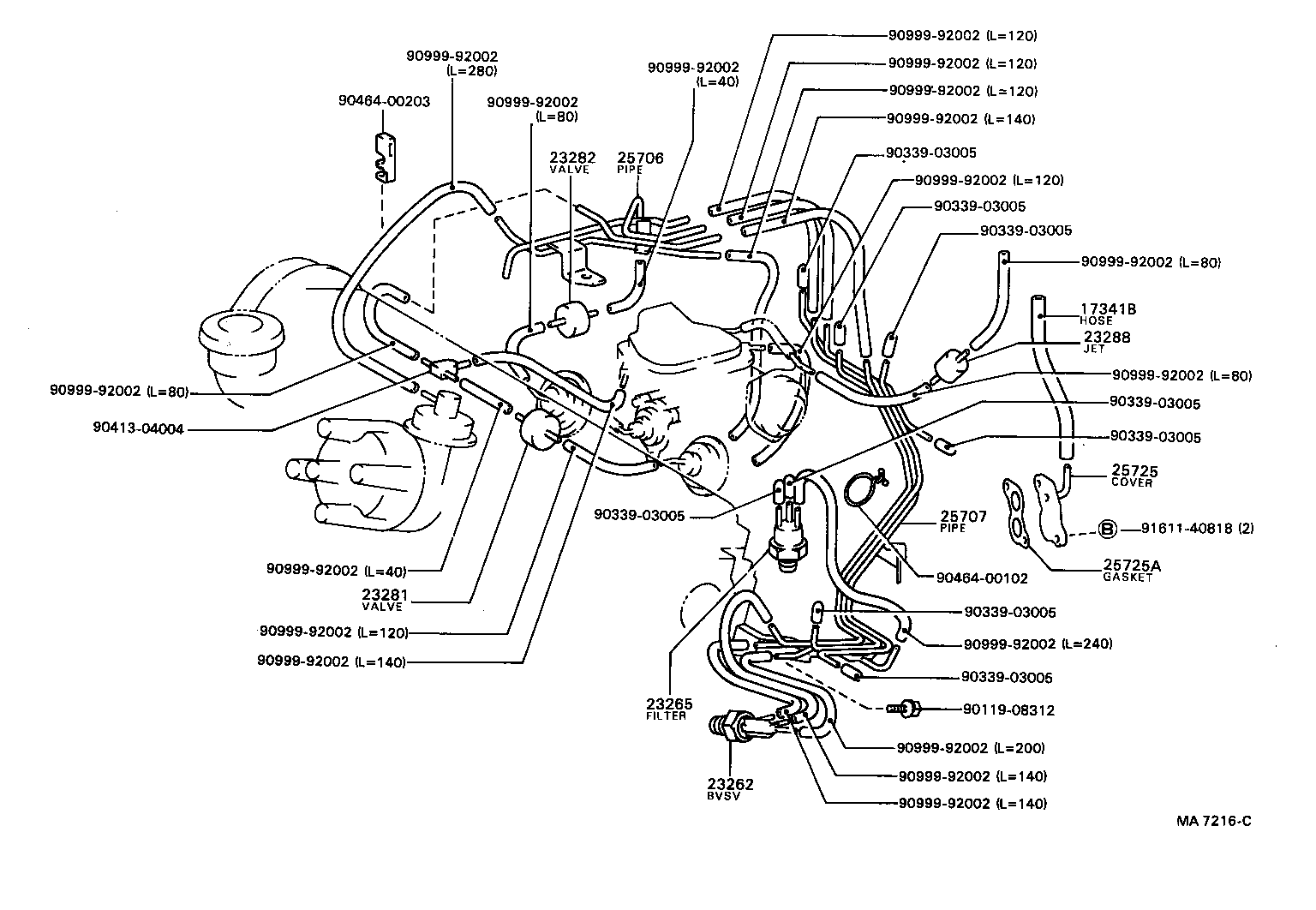

(8310- )1SL..GEN,TH

Click highlighted areas on diagram

diagram 17341B 23262 23265 23281 23282 23288 25706 25707 25725 25725A 9011908312 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9041304004 9046400102 9046400203 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9161140818
Part # Description Qty Price
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-11961

1SL..ST150

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

1SL..ST150

 1
23265 - FILTER, GAS, NO.1
90917-11024

1SL..ST150

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01062

1SL..ST150

 2
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01092

1SL..ST150

 1
23288 - JET, NO.1
90925-04006

1SL..ST150

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-63080

1SL..ST150..GEN,TH

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-63100

1SL..ST150

 1
25725 - COVER, EMISSION CONTROL VALVE
25725-63021

1SL..ST150

 1
25725A - GASKET, EMISSION CONTROL VALVE COVER
25627-63020

1SL..ST150

 1
Common parts
90119-08312
90339-03005
90413-04004
90464-00102
90464-00203
90999-92002
91611-40818

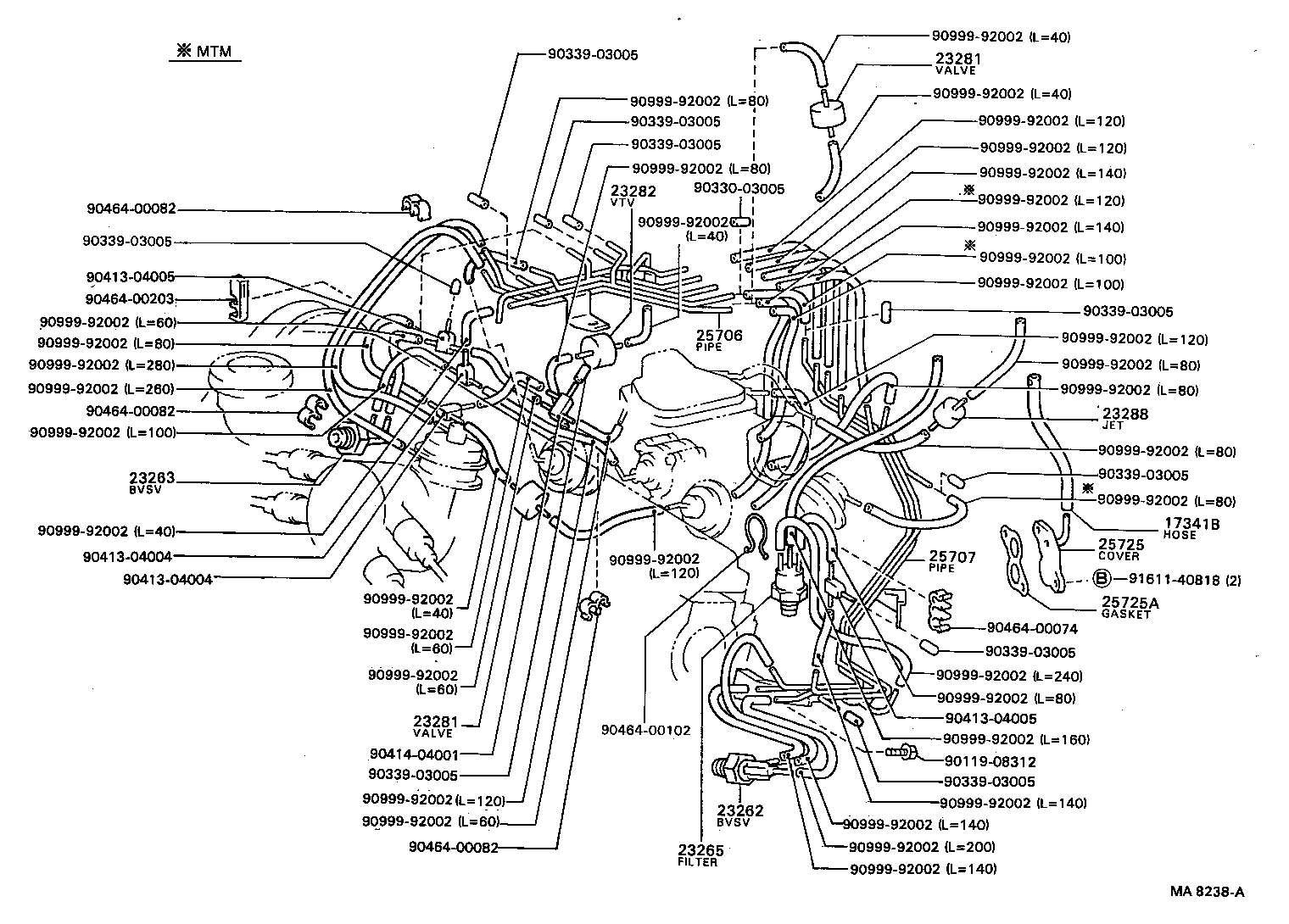

(8508- )1SL

Click highlighted areas on diagram

NEW ZEALAND SPEC

diagram 17341B 23262 23263 23265 23281 23281 23282 23288 25706 25707 25725 25725A 9011908312 9033003005 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9041304004 9041304004 9041304005 9041304005 9041404001 9046400074 9046400082 9046400082 9046400082 9046400102 9046400203 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9161140818
Part # Description Qty Price
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-11961

1SL..ST150

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

1SL..ST150

 1
23265 - FILTER, GAS, NO.1
90917-11024

1SL..ST150

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01062

1SL..ST150

 2
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01062

1SL..ST150

 2
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01092

1SL..ST150

 1
23288 - JET, NO.1
90925-04006

1SL..ST150

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-63080

1SL..ST150..GEN,TH

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-63100

1SL..ST150

 1
25725 - COVER, EMISSION CONTROL VALVE
25725-63021

1SL..ST150

 1
25725A - GASKET, EMISSION CONTROL VALVE COVER
25627-63020

1SL..ST150

 1
Common parts
90119-08312
90330-03005
90339-03005
90413-04004
90413-04005
90414-04001
90464-00074
90464-00082
90464-00102
90464-00203
90999-92002
91611-40818

(8310- )1S#,2SEL

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
