CT150R-TLMNSW (1983)
Toyota Corona/Carina 2

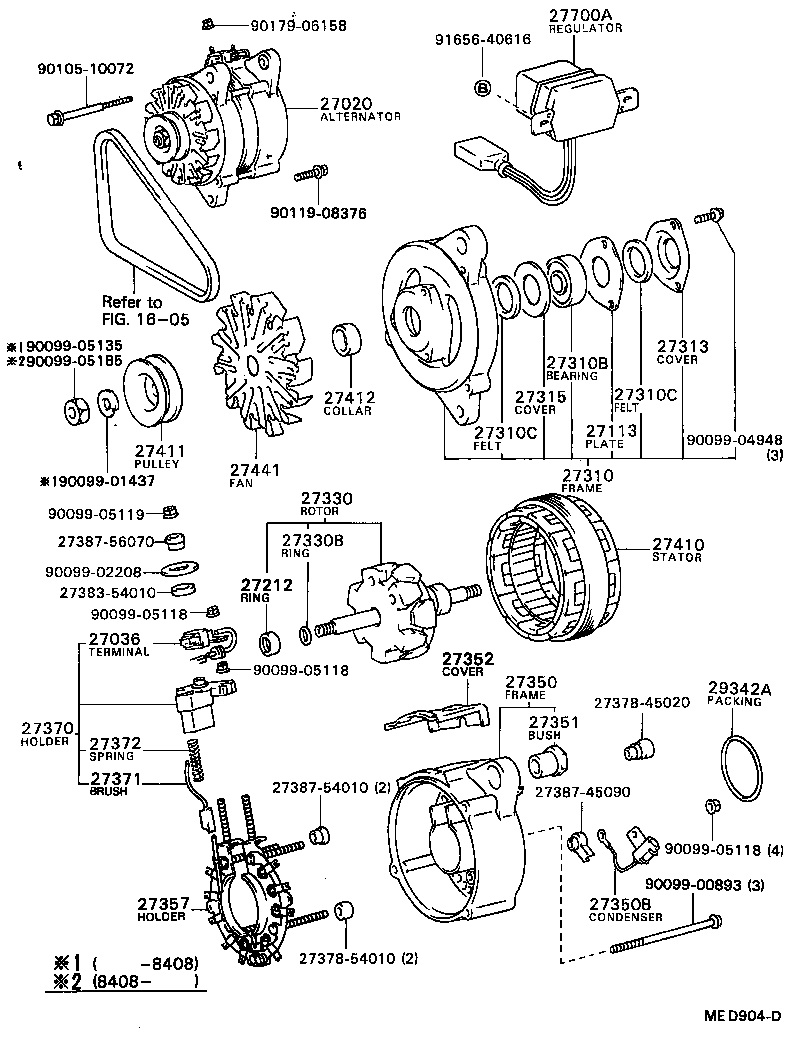

(8310- )2CL
12V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-64100 |
2CL..CT150..EUG 12V 60A,12V 60A |
1 | ||
| 27020-64060 |
2CL..CT150 12V 55A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2CL..CT150 12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
2CL..CT150 12V 55A,60A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
2CL..CT150 12V 55A,60A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
2CL..CT150 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
2CL..CT150 12V 55A |
1 | ||
| 27330-64030 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-64080 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27388-68040 |
2CL..CT150 12V 55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-64060 |
2CL..CT150 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
2CL..CT150 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2CL..CT150 12V 55A,60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2CL..CT150 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
2CL..CT150 12V 55A |
1 | ||
| 27410-54180 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15040 |
4AL#,2CL,1SL..AT151,CT150,ST150 12V 45A,50A,55A,60A |
1 | ||
| 27700-57060 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27700-15040 |
4AL,2CL..AT151,CT150..DX;4AL,2CL..AT151,CT150..RHD..EUG 12V 50A,55A |
1 | ||
| 27700-64030 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
2CL..CT150 12V 55A,60A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-00893 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-05185 | ||||
| 90105-10072 | ||||
| 90119-08376 | ||||
| 90179-06158 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 1605 | ||||

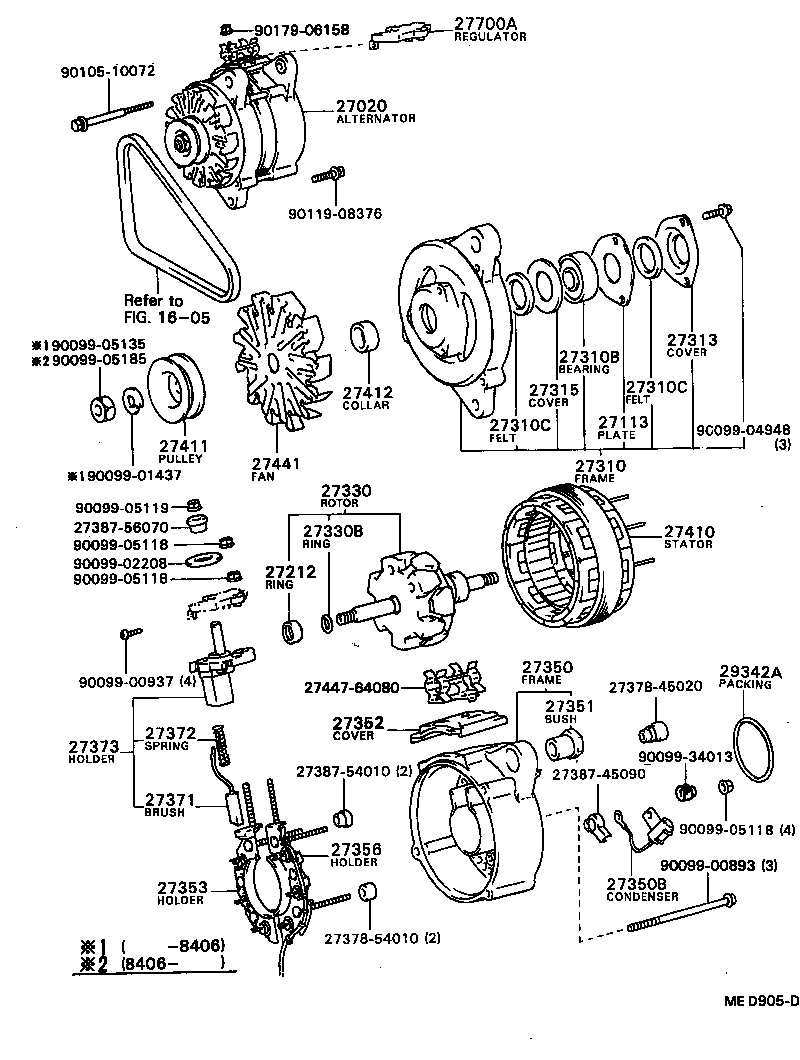

(8310- )2CL..EUG
12V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-64100 |
2CL..CT150..EUG 12V 60A,12V 60A |
1 | ||
| 27020-64060 |
2CL..CT150 12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
2CL..CT150 12V 55A,60A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
2CL..CT150 12V 55A,60A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
2CL..CT150 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
2CL..CT150 12V 55A |
1 | ||
| 27330-64030 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-64080 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27388-68040 |
2CL..CT150 12V 55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54180 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-64100 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2CL..CT150 12V 55A,60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2CL..CT150 12V 55A,60A |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-57070 |
2CL..CT150 12V 60A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
2CL..CT150 12V 55A |
1 | ||
| 27410-54180 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-64060 |
2CL..CT150 12V 55A,60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15040 |
4AL#,2CL,1SL..AT151,CT150,ST150 12V 45A,50A,55A,60A |
1 | ||
| 27700-57060 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 27700-15040 |
4AL,2CL..AT151,CT150..DX;4AL,2CL..AT151,CT150..RHD..EUG 12V 50A,55A |
1 | ||
| 27700-64030 |
2CL..CT150..EUG 12V 60A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
2CL..CT150 12V 55A,60A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27447-64080 | ||||
| 90099-00893 | ||||
| 90099-00937 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-05185 | ||||
| 90099-34013 | ||||
| 90105-10072 | ||||
| 90119-08376 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 1605 | ||||
