CT150L-TEMNSW (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 2CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )EUR

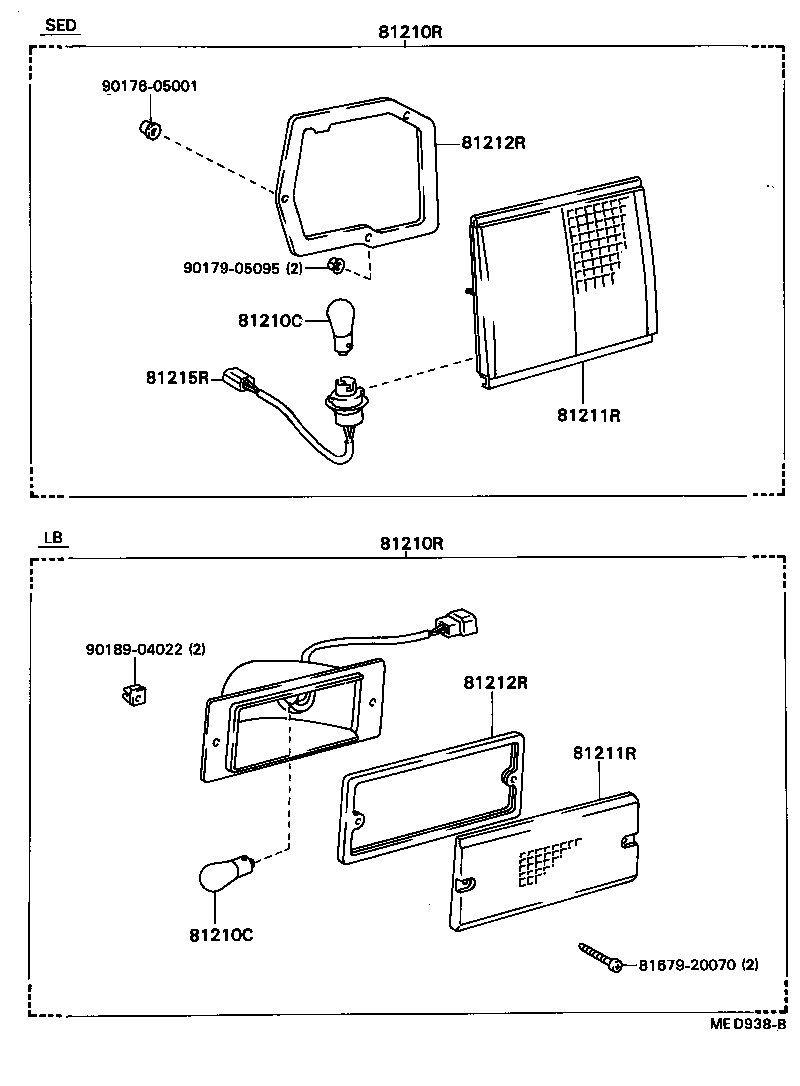

Click highlighted areas on diagram

diagram 81210C 81210C 81210R 81210R 81211R 81211R 81212R 81212R 81215R 8167920070 9017605001 9017905095 9018904022
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

AT151,CT150,ST150..EUR

12V 21W,12V 21W

 2
81210C - BULB, REAR FOG LAMP
99132-11210

AT151,CT150,ST150..EUR

12V 21W,12V 21W

 2
81210R - LAMP ASSY, REAR FOG
81220-29025

AT151,CT150..SED..EUR

LH

 1
81210-29055

AT151,CT150..SED..EUR

RH

 1
81210R - LAMP ASSY, REAR FOG
81220-29025

AT151,CT150..SED..EUR

LH

 1
81210-29055

AT151,CT150..SED..EUR

RH

 1
81211R - LENS, REAR FOG LAMP
81211-20020

AT151,CT150..SED..EUR

RH

 1
81221-20010

AT151,CT150..SED..EUR

LH

 1
81211R - LENS, REAR FOG LAMP
81211-20020

AT151,CT150..SED..EUR

RH

 1
81221-20010

AT151,CT150..SED..EUR

LH

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81214-20020

AT151,CT150..SED..EUR

 2
81212R - GASKET, REAR FOG LAMP, NO.1
81214-20020

AT151,CT150..SED..EUR

 2
81215R - SOCKET & WIRE, REAR FOG LAMP
81215-20020

AT151,CT150..SED..EUR

 2
Common parts
81679-20070
90176-05001
90179-05095
90189-04022
