AT151R-TLPNSW (1984)

Toyota Corona/Carina 2

Production Jan 1984 - Nov 1987
Engine 4AL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8401- )4FC

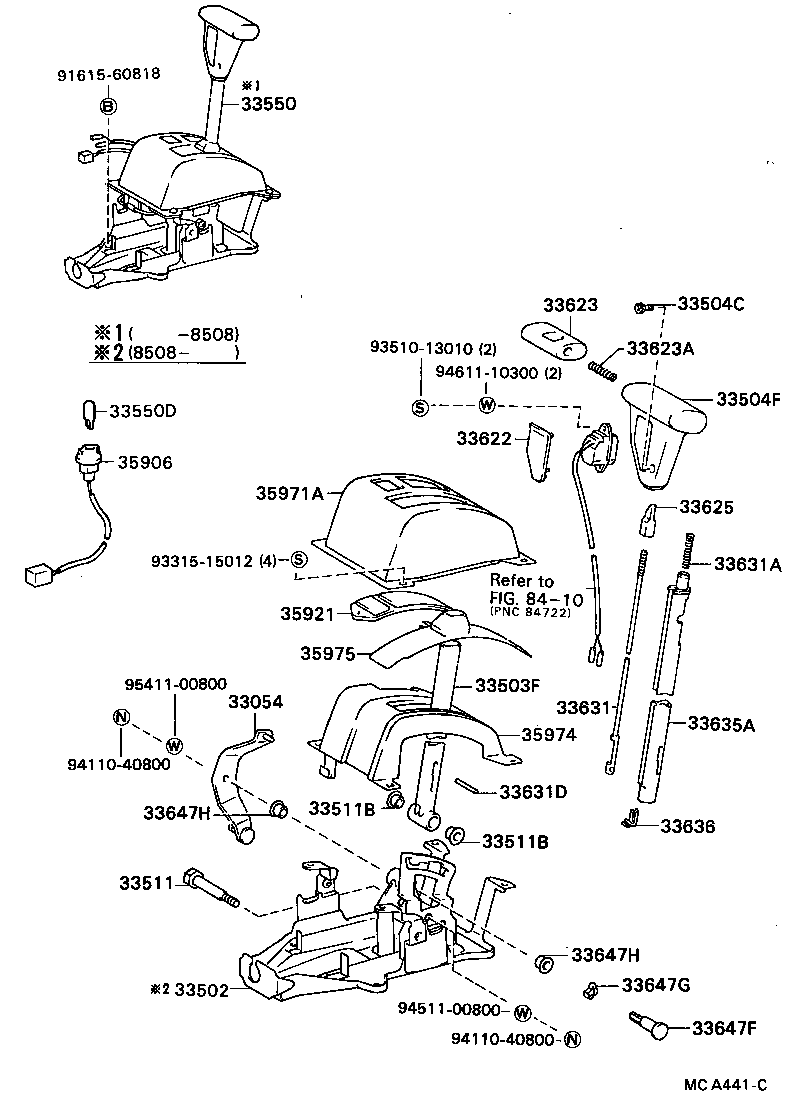

Click highlighted areas on diagram

diagram 33054 33502 33503F 33504C 33504F 33511 33511B 33511B 33550 33550D 33622 33623 33623A 33625 33631 33631A 33631D 33635A 33636 33647F 33647G 33647H 33647H 35906 35921 35971A 35974 35975 8410 9161560818 9331515012 9351013010 9411040800 9411040800 9451100800 9461110300 9541100800
Part # Description Qty Price
33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33054-20020

AT151,ST150..RHD..ATM

 1
33054-20021

AT151,ST15#..RHD..ATM..(EUR,GEN)

 1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-20210

AT151,ST15#..RHD..ATM

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-20290

AT151,ST15#..4FC

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109

AT151,ST15#..ATM..(EUR,GEN,SAA)

 2
90149-40004

AT151..4FC;AT151,ST150..3FC..XL

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-2006003

AT151..RHD..4FC

GRAY,GRAY,TRIM1#

 1
33542-2006002

AT151..RHD..4FC

MAROON,RED/MAROON,TRIM3#

 1
33542-2006004

AT151..RHD..4FC

BLUE,BLUE,TRIM8#

 1
33542-3204003

AT151,ST151..RHD..4FC

GRAY,SHADOW GRAY,TRIM1#

 1
33542-3204002

AT151,ST151..RHD..4FC

MAROON,MAROON,TRIM3#

 1
33542-3204014

AT151..RHD..4FC

BLUE,BLUE,TRIM8#

 1
33504-1406024

AT151,ST150..4F..(EUR,GEN,SAA)

BLUE,W/*USW,BLUE,TRIM8#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-20240

AT151,ST15#..ATM

 1
33511B - BUSH (FOR CONTROL SHAFT)
90385-11003

AT151,ST15#..ATM

 2
33511B - BUSH (FOR CONTROL SHAFT)
90385-11003

AT151,ST15#..ATM

 2
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-2038004

AT151..RHD..4FC

BLUE,BLUE,TRIM8#

 1
33550-2038002

AT151..RHD..4FC

MAROON,RED/MAROON,TRIM3#

 1
33550-2038003

AT151..RHD..4FC

GRAY,GRAY,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
99132-12034

AT151,ST15#..ATM

12V 3.4W,12V 3.4W

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-1601014

AT151,ST151..RHD..4FC

BLUE,BLUE,TRIM8#

 1
33622-1601004

AT151..RHD..4FC

BLUE,BLUE,TRIM8#

 1
33622-1601013

AT151,ST151..RHD..4FC

GRAY,GRAY,TRIM1#

 1
33622-1601002

AT151,ST151..RHD..4FC

MAROON,RED/MAROON,TRIM3#

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1602013

AT151,ST15#..4FC

GRAY,GRAY,TRIM1#

 1
33623-1602002

AT151,ST15#..4FC

MAROON,DARK MAROON,TRIM3#

 1
33623-1602014

AT151,ST15#..4FC

BLUE,BLUE,TRIM8#

 1
33623-1602004

AT151..4FC

BLUE,BLUE,TRIM8#

 1
33623-1602033

AT151,ST15#..4FC

GRAY,GRAY,TRIM1#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

AT151,ST15#..ATM

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-16020

AT151,ST15#..4FC

 1
33631 - ROD, DETENT
33631-20080

AT151,ST15#..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08017

AT151,ST15#..ATM

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04001

AT151,ST15#..ATM

 1
33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33635-20020

AT151,ST15#..4FC

 1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010

AT151,ST15#..4FC

 1
33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT)
33647-32010

AT151,ST15#..ATM

 1
33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT)
90206-10003

AT151,ST15#..ATM

 1
33647H - BUSH (FOR CONTROL LINK SHAFT)
90386-10012

AT151,ST15#..ATM

 2
33647H - BUSH (FOR CONTROL LINK SHAFT)
90386-10012

AT151,ST15#..ATM

 2
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-20020

AT151,ST15#..RHD..ATM

 1
35906-20020

AT151,ST15#..ATM

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-20210

AT151,ST151..RHD..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-20090

AT151,ST150..RHD..ATM

 1
35971-20110

AT151,ST15#..RHD..ATM

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-20080

AT151,ST15#..RHD..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-20060

AT151,ST15#..4FC

 1
Common parts
91615-60818
93315-15012
93510-13010
94110-40800
94511-00800
94611-10300
95411-00800
Linked diagrams
8410
