AT151R-TLMNS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )LB

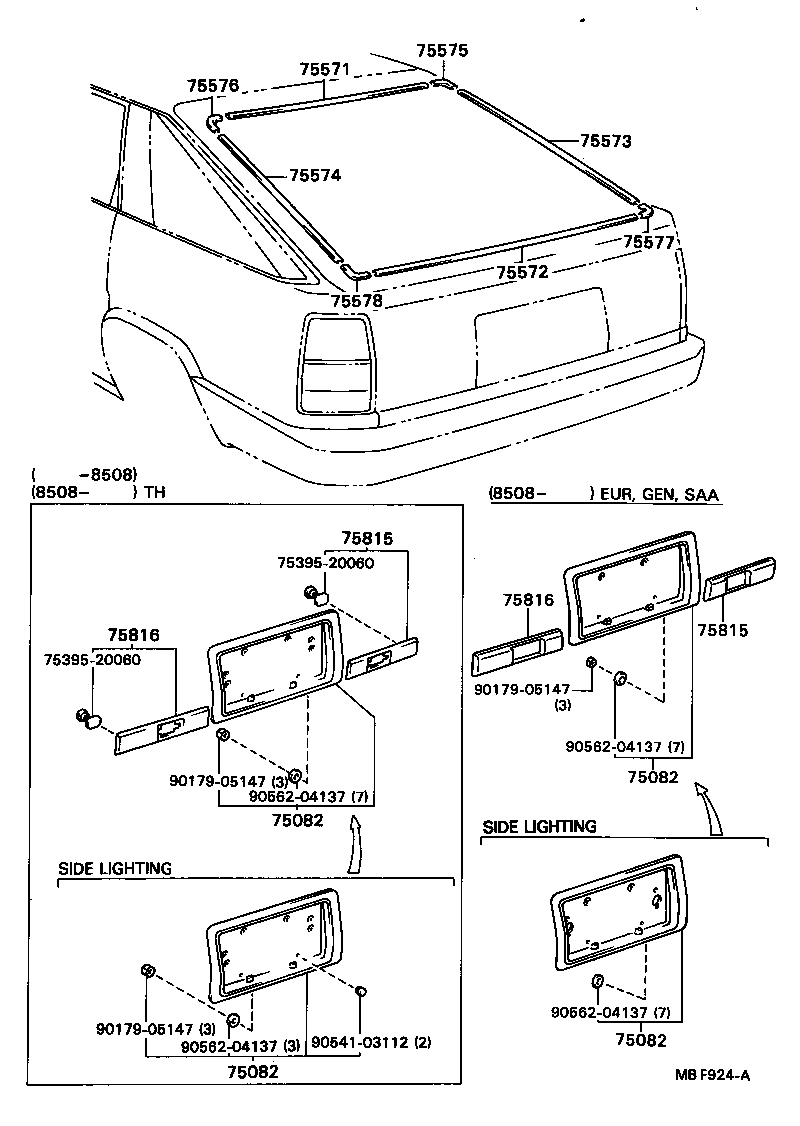

Click highlighted areas on diagram

diagram 75082 75082 75082 75082 7539520060 7539520060 75571 75572 75573 75574 75575 75576 75577 75578 75815 75815 75816 75816 9017905147 9017905147 9017905147 9054103112 9056204137 9056204137 9056204137 9056204137
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-29095

AT151,CT150,ST15#..LB

 1
75082-29075

AT151,ST150..LB..(GEN,SAA)

SIDE LIGHTING

 1
75082-20150

AT151,ST150..LB..(GEN,SAA)

SIDE LIGHTING

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-29095

AT151,CT150,ST15#..LB

 1
75082-29075

AT151,ST150..LB..(GEN,SAA)

SIDE LIGHTING

 1
75082-20150

AT151,ST150..LB..(GEN,SAA)

SIDE LIGHTING

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-29095

AT151,CT150,ST15#..LB

 1
75082-29075

AT151,ST150..LB..(GEN,SAA)

SIDE LIGHTING

 1
75082-20150

AT151,ST150..LB..(GEN,SAA)

SIDE LIGHTING

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-29095

AT151,CT150,ST15#..LB

 1
75082-29075

AT151,ST150..LB..(GEN,SAA)

SIDE LIGHTING

 1
75082-20150

AT151,ST150..LB..(GEN,SAA)

SIDE LIGHTING

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-20170

AT151,CT150,ST15#..LB

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-20130

AT151,CT150,ST15#..LB

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-20130

AT151,CT150,ST15#..LB

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75573-20130

AT151,CT150,ST15#..LB

 1
75574-20130

AT151,CT150,ST150..LB

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-20040

AT151,CT150,ST15#..LB

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-20040

AT151,CT150,ST15#..LB

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75583-20040

AT151,CT150,ST15#..LB

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75583-20040

AT151,CT150,ST15#..LB

 1
75815 - MOULDING, BACK DOOR OUTSIDE, RH
75815-20050

AT151,CT150,ST15#..LB..(EUR,GEN,SAA)

 1
75815-20010

AT151,ST150..LB..(GEN,SAA)

 1
75815 - MOULDING, BACK DOOR OUTSIDE, RH
75815-20050

AT151,CT150,ST15#..LB..(EUR,GEN,SAA)

 1
75815-20010

AT151,ST150..LB..(GEN,SAA)

 1
75816 - MOULDING, BACK DOOR OUTSIDE, LH
75816-20050

AT151,CT150,ST15#..LB..(EUR,GEN,SAA)

 1
75816-20030

AT151,ST150..LB..(GEN,SAA)

 1
75816 - MOULDING, BACK DOOR OUTSIDE, LH
75816-20050

AT151,CT150,ST15#..LB..(EUR,GEN,SAA)

 1
75816-20030

AT151,ST150..LB..(GEN,SAA)

 1
Common parts
75395-20060
90179-05147
90541-03112
90562-04137
