AT151R-TLMNS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8508)

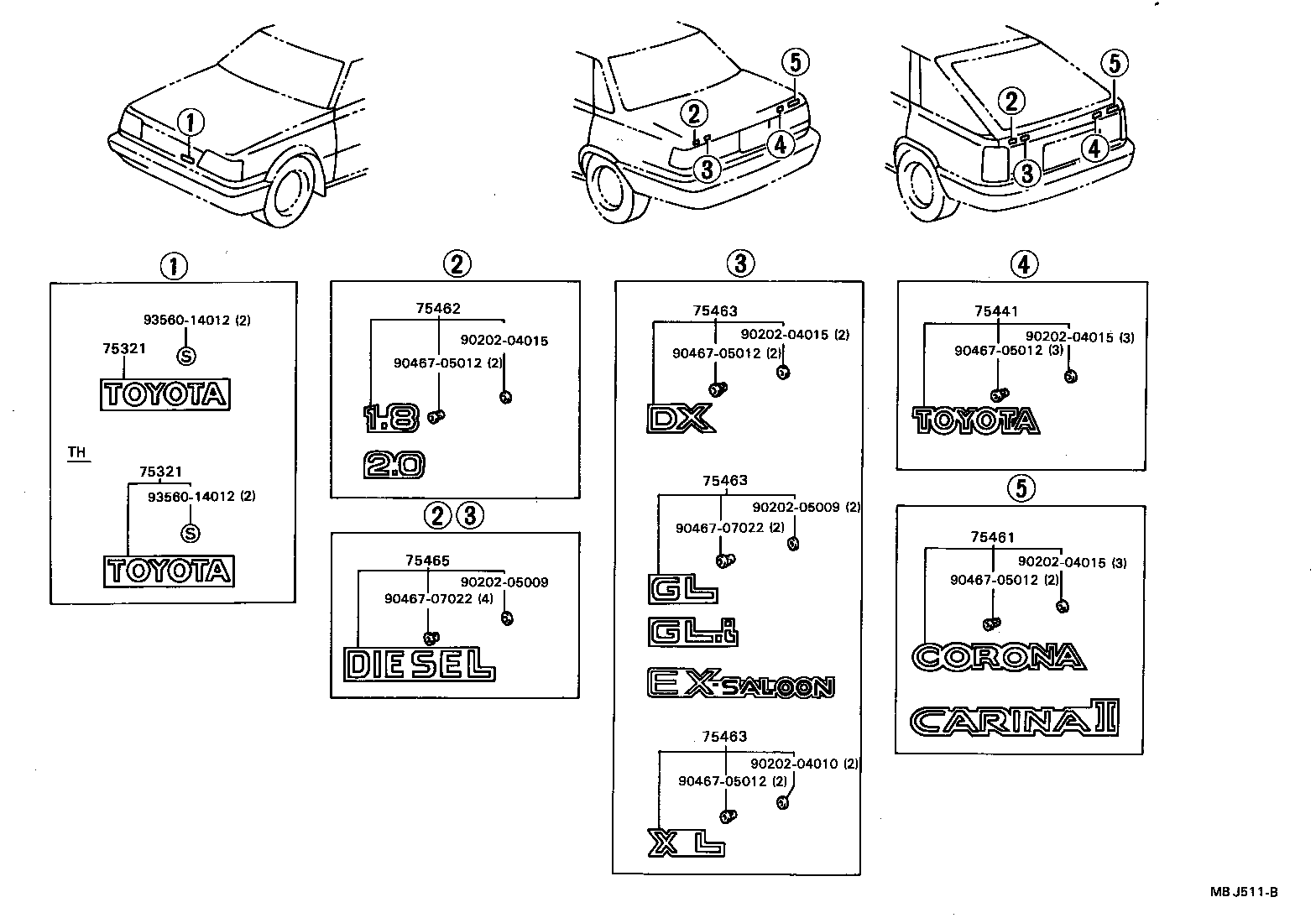

Click highlighted areas on diagram

diagram 75321 75441 75461 75462 75463 75463 75465 9020204015 9020204015 9020204015 9020204015 9020205009 9046705012 9046705012 9046705012 9046705012 9046707022 9046707022 9356014012
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20460

AT151,CT150,ST15#..EUR,GEN,SAA

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75441-20190

AT151,CT150,ST15#

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75445-20030

AT151,CT150,ST15#..GEN,SAA,TH

CORONA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20150

AT151,ST150..GL..(GEN,SAA,TH)

GL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20150

AT151,ST150..GL..(GEN,SAA,TH)

GL

 1
Common parts
90202-04015
90202-05009
90467-05012
90467-07022
93560-14012

(8508- )

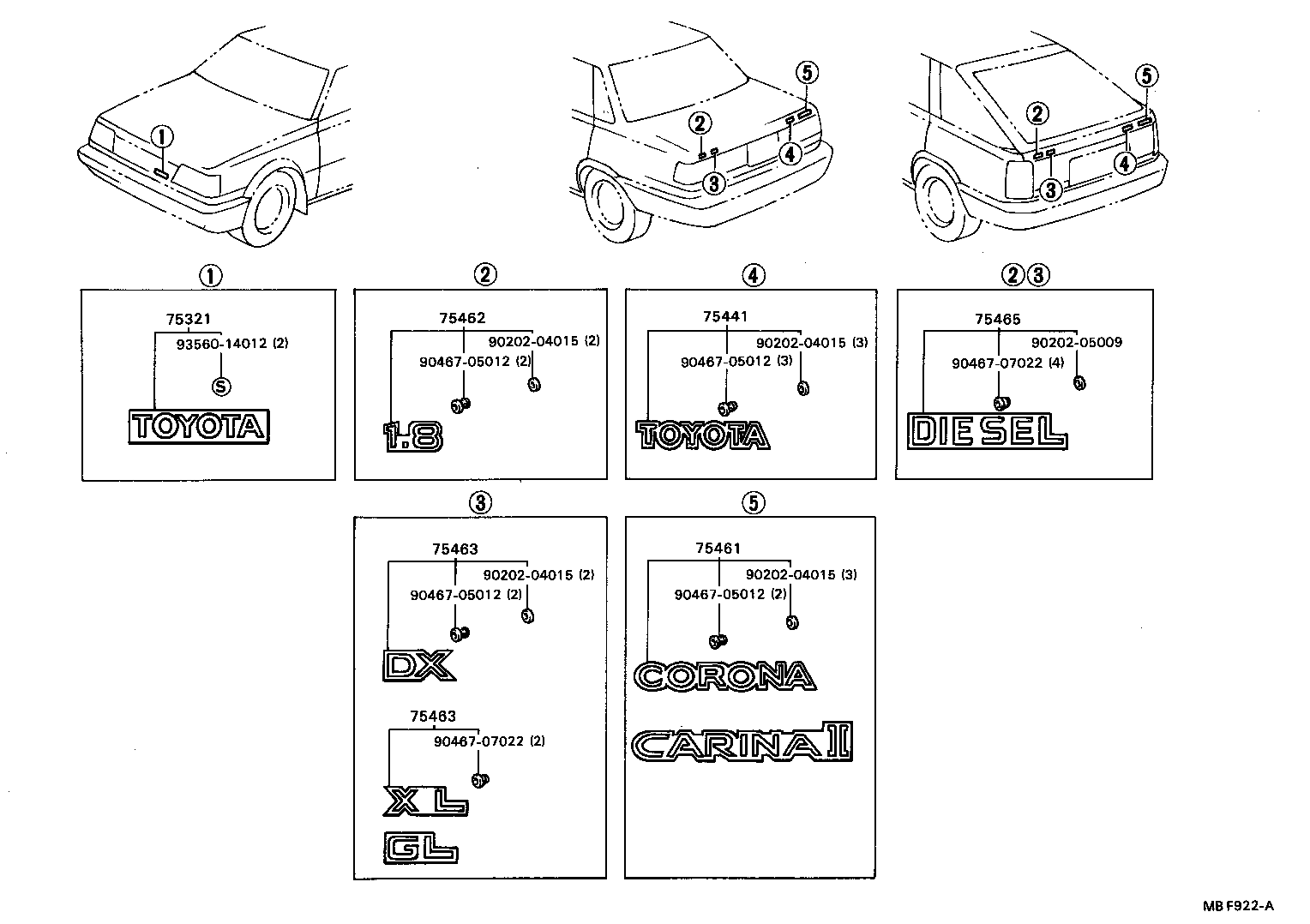

Click highlighted areas on diagram

diagram 75321 75321 75441 75461 75462 75463 75463 75463 75465 9020204010 9020204015 9020204015 9020204015 9020204015 9020205009 9020205009 9046705012 9046705012 9046705012 9046705012 9046705012 9046707022 9046707022 9356014012 9356014012
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20460

AT151,CT150,ST15#..EUR,GEN,SAA

TOYOTA

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20460

AT151,CT150,ST15#..EUR,GEN,SAA

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75441-20190

AT151,CT150,ST15#

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75445-20030

AT151,CT150,ST15#..GEN,SAA,TH

CORONA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20150

AT151,ST150..GL..(GEN,SAA,TH)

GL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20150

AT151,ST150..GL..(GEN,SAA,TH)

GL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20150

AT151,ST150..GL..(GEN,SAA,TH)

GL

 1
Common parts
90202-04010
90202-04015
90202-05009
90467-05012
90467-07022
93560-14012
