AT151R-TLMDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

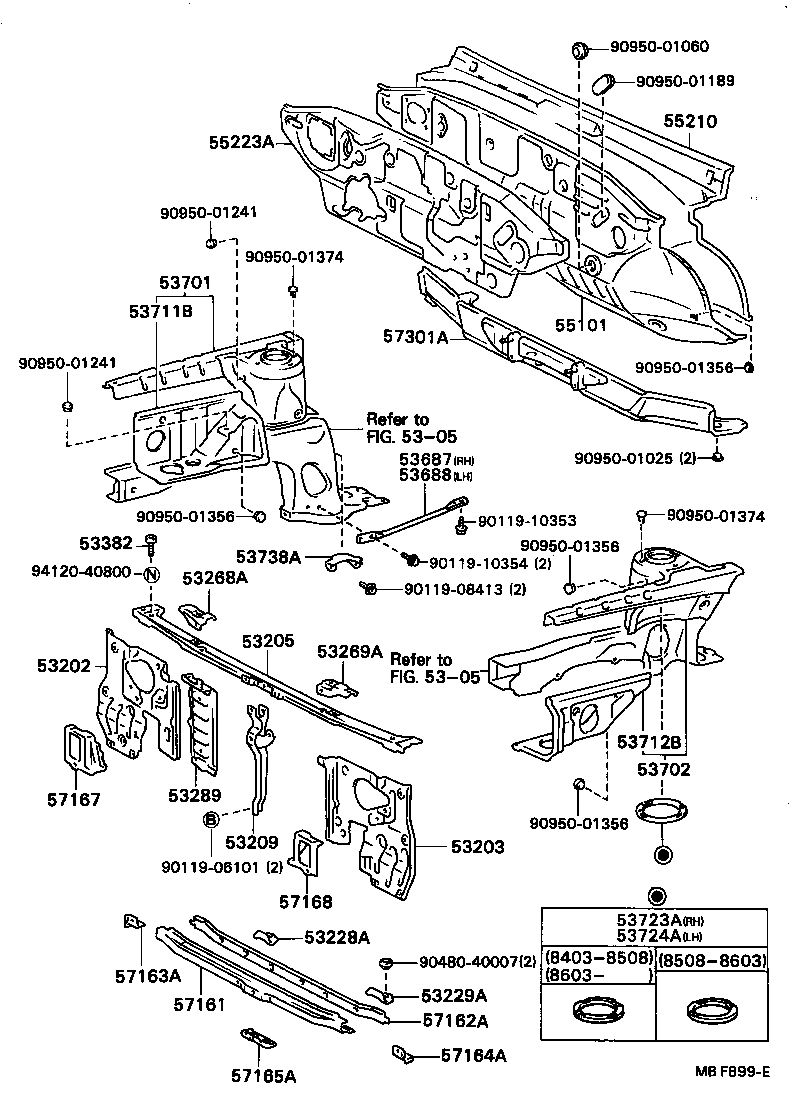

Click highlighted areas on diagram

diagram 5305 5305 53202 53203 53205 53209 53228A 53229A 53268A 53269A 53289 53382 53687 53688 53701 53702 53711B 53712B 53723A 53724A 53738A 55101 55210 55223A 57161 57162A 57163A 57164A 57165A 57167 57168 57301A 9011906101 9011908413 9011910353 9011910354 9048040007 9095001025 9095001060 9095001189 9095001241 9095001241 9095001356 9095001356 9095001356 9095001356 9095001374 9095001374 9412040800
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-20090

AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F

 1
53211-20090

AT151,CT150,ST150..GEN

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-20130

AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-20040

AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F

 1
53209 - BRACE SUB-ASSY, HOOD LOCK
53209-20050

CT150;ST150..XL;AT151..RHD..4F;AT151..4FC..DX;AT151..LB..RHD..4FC;AT151..(3FC,5F)..XL;AT151..(3FC,4F,5F)..EUR;AT151..LHD..(4F,4FC)..(GL,STD,XL)

 1
53209-20070

AT151,CT150,ST150..STD,XL

 1
53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1
53228-12060

AT151,CT150,ST15#

 1
53229A - BRACKET, RADIATOR GRILLE MOUNTING
53229-12030

AT151,CT150,ST15#

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-20030

AT151..MTM..(EUR,GEN)

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-20010

AT151,CT150,ST15#

 1
53289 - COVER, RADIATOR SIDE BAFFLE
53289-20010

AT151..MTM

 1
53382 - BUMPER, HOOD, FRONT
53382-20011

AT151,CT150,ST15#

 2
53687 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53687-12010

AT151,CT150,ST150

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20460

AT151,CT150,ST15#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20540

AT151,CT150,ST15#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12180

AT151,CT150,ST15#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-12160

AT151,CT150,ST15#

 1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-20020

AT151..SED..LHD..5F..EUG;AT151,CT150,ST150..GEN,SAA

HARSH ROAD PACKAGE

 1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53723-20020

AT151..SED..LHD..5F..EUG;AT151,CT150,ST150..GEN,SAA

HARSH ROAD PACKAGE

 1
55101 - PANEL SUB-ASSY, DASH
55101-20933

AT151,CT150,ST150..RHD..MTM..GEN

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-20120

AT151,CT150,ST150..RHD

 1
57161 - CROSSMEMBER, FRONT
57161-20070

AT151,CT150,ST150..GEN

 1
57162A - MEMBER, FRONT CROSS, REAR
57162-20060

AT151,CT150,ST150..GEN

 1
57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57163-12050

AT151,CT150,ST15#

 1
57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57164-12010

AT151,CT150,ST15#

 1
57165A - REINFORCEMENT, FRONT CROSSMEMBER, NO.2
57165-20040

AT151,CT150,ST15#

 1
57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH
57167-20060

AT151,CT150,ST150..GEN

 1
57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH
57168-20050

AT151,CT150,ST150..GEN

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-20010

AT151,CT150,ST150..RHD..GEN

 1
Common parts
90119-06101
90119-08413
90119-10353
90119-10354
90480-40007
90950-01025
90950-01060
90950-01189
90950-01241
90950-01356
90950-01374
94120-40800
Linked diagrams
5305
