AT151R-TLMDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

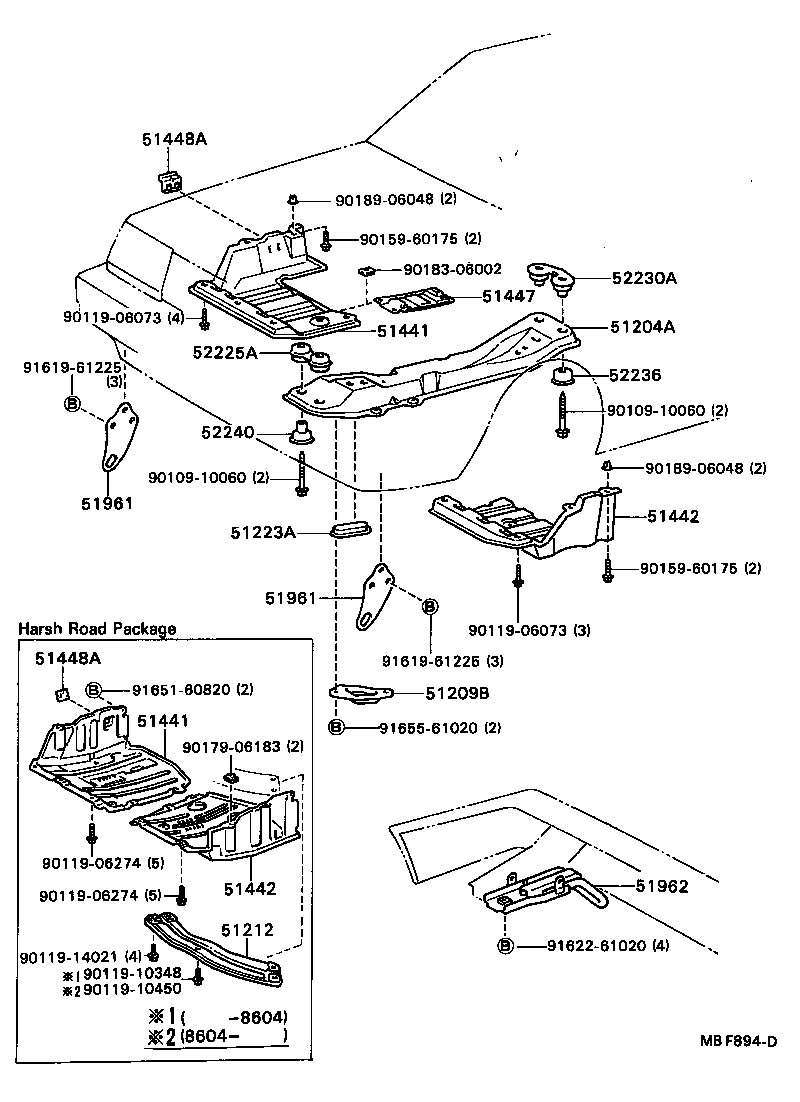

Click highlighted areas on diagram

diagram 51204A 51209B 51212 51223A 51441 51441 51442 51442 51447 51448A 51448A 51961 51961 51962 52225A 52230A 52236 52240 9010910060 9010910060 9011906073 9011906073 9011906274 9011906274 9011910348 9011910450 9011914021 9015960175 9015960175 9017906183 9018306002 9018906048 9018906048 9161961225 9161961225 9162261020 9165160820 9165561020
Part # Description Qty Price
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20010

AT151,CT150,ST15#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

AT151,CT150,ST15#

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20080

AT151,CT150,ST15#

 1
51408-20010

AT151,CT150,ST150..GEN,SAA

HARSH ROAD PACKAGE

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-20080

AT151,CT150,ST15#

 1
51408-20010

AT151,CT150,ST150..GEN,SAA

HARSH ROAD PACKAGE

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20010

AT151,CT150,ST15#..MTM

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20010

AT151,CT150,ST15#..MTM

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-12070

AT151

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AT151,CT150,ST150

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AT151,CT150,ST150

 1
51961 - HOOK, NO.1
51963-20060

AT151,CT150,ST15#

 2
51961 - HOOK, NO.1
51963-20060

AT151,CT150,ST15#

 2
52225A - CUSHION, CENTER MEMBER MOUNTING, FRONT UPPER
52225-20010

AT151,CT150,ST150

 1
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-20010

AT151,CT150,ST150

 1
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-20010

AT151,CT150,ST150

 2
52240 - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER
52240-20010

AT151,CT150,ST150

 2
Common parts
90109-10060
90119-06073
90119-06274
90119-10348
90119-10450
90119-14021
90159-60175
90179-06183
90183-06002
90189-06048
91619-61225
91622-61020
91651-60820
91655-61020
