AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330B 88330C 88403 9004464009
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14010

AT151..GEN,SAA,TH

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-20100

AT151..GEN,SAA,TH

 1
88320 - COMPRESSOR ASSY, COOLER
88320-20370

AT151..GEN

 1
88320-20400

AT151..GEN

 1
88320-12460

AT151..GEN

 1
88330 - CLUTCH ASSY, MAGNET
88410-20170

AT151..GEN,TH

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

AT151,CT150,ST15#..GEN,SAA,TH

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

AT151..GEN,SAA,TH

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

AT151,CT150,ST15#..GEN,SAA,TH

 1
Common parts
90044-64009

(8310- )

Click highlighted areas on diagram

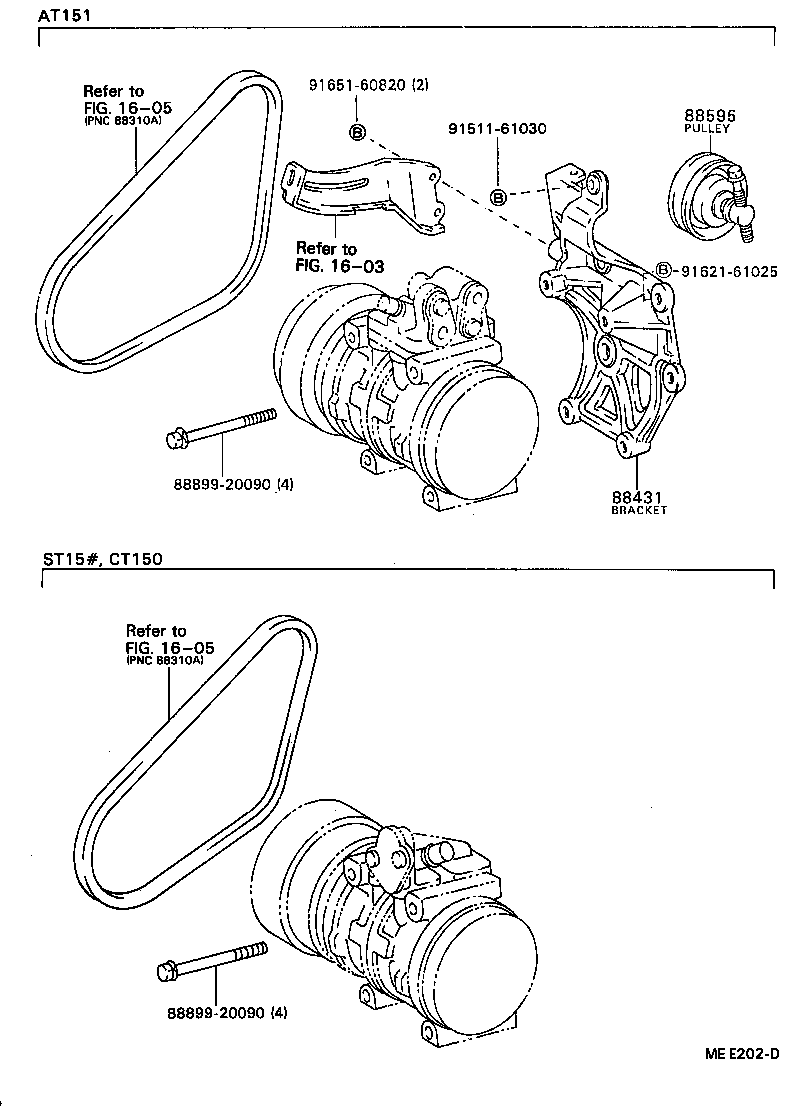

diagram 1603 1605 1605 88431 88595 8889920090 8889920090 9151161030 9162161025 9165160820
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-20260

AT151..RHD..(GEN,TH)

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12090

AT151..RHD..(GEN,TH)

 1
Common parts
88899-20090
91511-61030
91621-61025
91651-60820
Linked diagrams
1603
1605

(8310- )

Click highlighted areas on diagram

diagram 88304 88316 88316A 88316C 88320A 88320B 88321 88321 88321A 88321A 88321B 88321B 88321C 88321C 88322 88325A 88325A 88329 88329C 88335 88360 88360A 88360A 88364 88374 88375 8856932070 88890A 88890A 9009100889 9451100500
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-14021

AT151,CT150,ST15#..GEN,SAA

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-14011

AT151..GEN

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-14010

AT151,CT150,ST15#..GEN,SAA

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13011

AT151,ST150..GEN,SAA

 1
90099-13012

AT151..GEN

 1
90099-13024

AT151,CT150,ST15#..GEN,SAA

 1
88320A - BOLT, THROUGH
90099-04958

AT151,CT150,ST15#..GEN,SAA

 5
88320B - BOLT, SERVICE VALVE
90099-04255

AT151..GEN,SAA

 4
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-14011

AT151,CT150,ST15#..GEN,SAA

FR

 1
88322-14011

AT151..GEN,SAA

RR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-14011

AT151,CT150,ST15#..GEN,SAA

FR

 1
88322-14011

AT151..GEN,SAA

RR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

AT151,CT150,ST15#..GEN,SAA

FR

 1
88342-14010

AT151,CT150,ST15#..GEN,SAA

RR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

AT151,CT150,ST15#..GEN,SAA

FR

 1
88342-14010

AT151,CT150,ST15#..GEN,SAA

RR

 1
88321B - REED SUB-ASSY, VALVE
88344-14011

AT151,CT150,ST15#..GEN,SAA

 2
88321B - REED SUB-ASSY, VALVE
88344-14011

AT151,CT150,ST15#..GEN,SAA

 2
88321C - REED, SUCTION VALVE
88343-14011

AT151,CT150,ST15#..GEN,SAA

 2
88321C - REED, SUCTION VALVE
88343-14011

AT151,CT150,ST15#..GEN,SAA

 2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-12210

AT151..GEN

 1
88371-12280

AT151..GEN,SAA

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

AT151,CT150,ST15#..GEN,SAA

 4
88325A - PIN, CYLINDER BLOCK
90099-08058

AT151,CT150,ST15#..GEN,SAA

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-14020

AT151,CT150,ST15#..GEN,SAA

 5
88329C - SHOE, PISTON
88313-14010

AT151,CT150,ST15#..GEN,SAA

 10
88335 - GASKET KIT, OVERHAUL
88335-12030

AT151..GEN,SAA

 1
04881-10010

AT151..GEN

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-40010

AT151,CT150,ST15#..GEN,SAA

 1
88360-40010

AT151..GEN

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AT151,CT150,ST15#..GEN,SAA

NO.1

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AT151,CT150,ST15#..GEN,SAA

NO.1

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-14010

AT151,CT150,ST15#..GEN,SAA

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

AT151,CT150,ST15#..GEN,SAA

 1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

AT151,CT150,ST15#..GEN,SAA

 1
Common parts
88569-32070
90091-00889
94511-00500
