AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

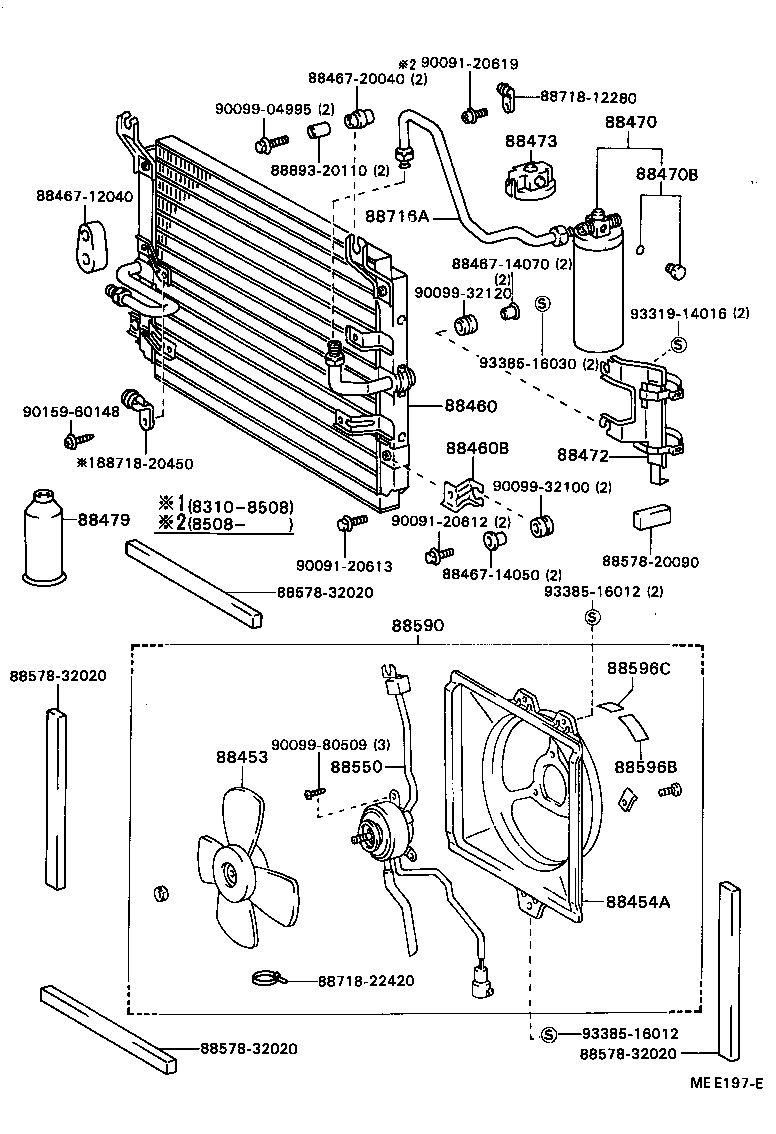

Click highlighted areas on diagram

diagram 88453 88454A 88460 88460B 8846712040 8846714050 8846714070 8846720040 88470 88470B 88472 88473 88479 88550 8857820090 8857832020 8857832020 8857832020 8857832020 88590 88596B 88596C 88716A 8871812280 8871820450 8871822420 8889320110 9009120612 9009120613 9009120619 9009904995 9009932100 9009932120 9009980509 9015960148 9331914016 9338516012 9338516012 9338516030
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
16361-28010

AT151..GEN

 1
88453-10010

AT151..GEN

 1
88454A - SHROUD, FAN
88454-12070

AT151..MTM..GEN;AT151..LHD..MTM..EUG

 1
88454-12071

AT151..MTM..GEN;AT151..MTM..(EUG,FRG)

 1
88454-12051

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88460 - CONDENSER ASSY, COOLER
88460-20180

AT151,CT150,ST150..RHD..GEN

 1
88460-20210

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-20330

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12061

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
88470B - BOLT, FUSE
88475-12020

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
88473 - CAP, COOLER RECEIVER TANK
88894-12111

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AT151,CT150,ST15#..RHD..(GEN,TH)

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12090

AT151,CT150..RHD..(EUR,GEN)

 1
88550-20020

AT151,CT150,ST150..RHD..GEN

 1
88550-12090

AT151,CT150..GEN

 1
88590 - BLOWER ASSY, W/SHROUD
88590-12051

AT151..MTM..GEN;AT151..MTM..(EUG,FRG)

 1
88590-22020

AT151..MTM

 1
88596B - PLATE, CAUTION, NO.1
88596-24010

AT151,CT150..EUR,GEN

 1
88596-14010

AT151,CT150..GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20640

AT151,CT150,ST15#..RHD

 1
Common parts
88467-12040
88467-14050
88467-14070
88467-20040
88578-20090
88578-32020
88718-12280
88718-20450
88718-22420
88893-20110
90091-20612
90091-20613
90091-20619
90099-04995
90099-32100
90099-32120
90099-80509
90159-60148
93319-14016
93385-16012
93385-16030

(8310-8508)AT151,CT150

Click highlighted areas on diagram

diagram 8846714040 8846714040 88711 88711 88712 88712 8871410010 8871412050 8871412050 8871412100 8871412100 88716B 88716C 88716D 88716E 88716E 88717A 88717A 88717B 88717C 8871812280 8871812280 8871812770 8871812790 8871812810 8871812820 8871814480 8871814480 8871820480 8871820480 8871820480 8871820500 8871820510 8871820530 8871820540 8871820550 8871820550 8889120100 8889120100 9015960148 9015960148 9017906115 9017906115 9017906115 9017906115 9017906115 9165160835 9165160835 9338516012 9338516012 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9417110600 9417110600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20390

AT151..GEN

 1
88711-20470

AT151..GEN

W/*BV

 1
88711-20460

AT151..GEN

W/HEATER

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20390

AT151..GEN

 1
88711-20470

AT151..GEN

W/*BV

 1
88711-20460

AT151..GEN

W/HEATER

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20470

AT151..RHD..GEN

 1
88712-20600

AT151..RHD..MTM..(EUR,GEN)

 1
88712-20471

AT151..RHD..GEN

 1
88712-20600

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20470

AT151..RHD..GEN

 1
88712-20600

AT151..RHD..MTM..(EUR,GEN)

 1
88712-20471

AT151..RHD..GEN

 1
88712-20600

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-20090

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88716-20720

AT151..RHD..MTM..GEN

 1
88710-20080

AT151..RHD..MTM..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-20090

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88716-20720

AT151..RHD..MTM..GEN

 1
88710-20080

AT151..RHD..MTM..GEN

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20370

AT151..RHD..(GEN,TH)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20370

AT151..RHD..(GEN,TH)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-20550

AT151,CT150,ST15#..RHD..GEN

 1
88717-20350

AT151,CT150,ST150..RHD..GEN

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-20360

AT151,CT150,ST150..RHD..GEN

 1
88717-20560

AT151,CT150,ST15#..RHD..GEN

 1
Common parts
88467-14040
88714-10010
88714-12050
88714-12100
88718-12280
88718-12770
88718-12790
88718-12810
88718-12820
88718-14480
88718-20480
88718-20500
88718-20510
88718-20530
88718-20540
88718-20550
88891-20100
90159-60148
90179-06115
91651-60835
93385-16012
93385-16014
94171-10600

(8508- )AT151,CT150

Click highlighted areas on diagram

diagram 8817495402 8817820550 8846714040 8846714040 8868820460 88711 88711 88712 88712 8871410010 8871412050 8871412050 8871495402 8871495402 8871495402 88716B 88716C 88716D 88716E 88716E 88717A 88717A 88717B 88717C 8871812280 8871812280 8871812280 8871812280 8871812770 8871812790 8871812790 8871812810 8871812820 8871814480 8871814480 8871820480 8871820480 8871820480 8871820500 8871820510 8871820530 8871820540 8871820550 8889120100 8889120100 9009120619 9009120619 9009120809 9009120809 9017906115 9017906115 9017906115 9017906115 9017906115 9033907016 9033907016 9165160835 9165160835 9338516012 9338516012 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516025 9417110600 9417110600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20390

AT151..GEN

 1
88711-20470

AT151..GEN

W/*BV

 1
88711-20460

AT151..GEN

W/HEATER

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20390

AT151..GEN

 1
88711-20470

AT151..GEN

W/*BV

 1
88711-20460

AT151..GEN

W/HEATER

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20470

AT151..RHD..GEN

 1
88712-20600

AT151..RHD..MTM..(EUR,GEN)

 1
88712-20471

AT151..RHD..GEN

 1
88712-20600

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20470

AT151..RHD..GEN

 1
88712-20600

AT151..RHD..MTM..(EUR,GEN)

 1
88712-20471

AT151..RHD..GEN

 1
88712-20600

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-20090

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88716-20720

AT151..RHD..MTM..GEN

 1
88710-20080

AT151..RHD..MTM..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-20090

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88716-20720

AT151..RHD..MTM..GEN

 1
88710-20080

AT151..RHD..MTM..GEN

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20370

AT151..RHD..(GEN,TH)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20370

AT151..RHD..(GEN,TH)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-20550

AT151,CT150,ST15#..RHD..GEN

 1
88717-20350

AT151,CT150,ST150..RHD..GEN

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-20360

AT151,CT150,ST150..RHD..GEN

 1
88717-20560

AT151,CT150,ST15#..RHD..GEN

 1
Common parts
88174-95402
88178-20550
88467-14040
88688-20460
88714-10010
88714-12050
88714-95402
88718-12280
88718-12770
88718-12790
88718-12810
88718-12820
88718-14480
88718-20480
88718-20500
88718-20510
88718-20530
88718-20540
88718-20550
88891-20100
90091-20619
90091-20809
90179-06115
90339-07016
91651-60835
93385-16012
93385-16014
93385-16025
94171-10600
