AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )AT151

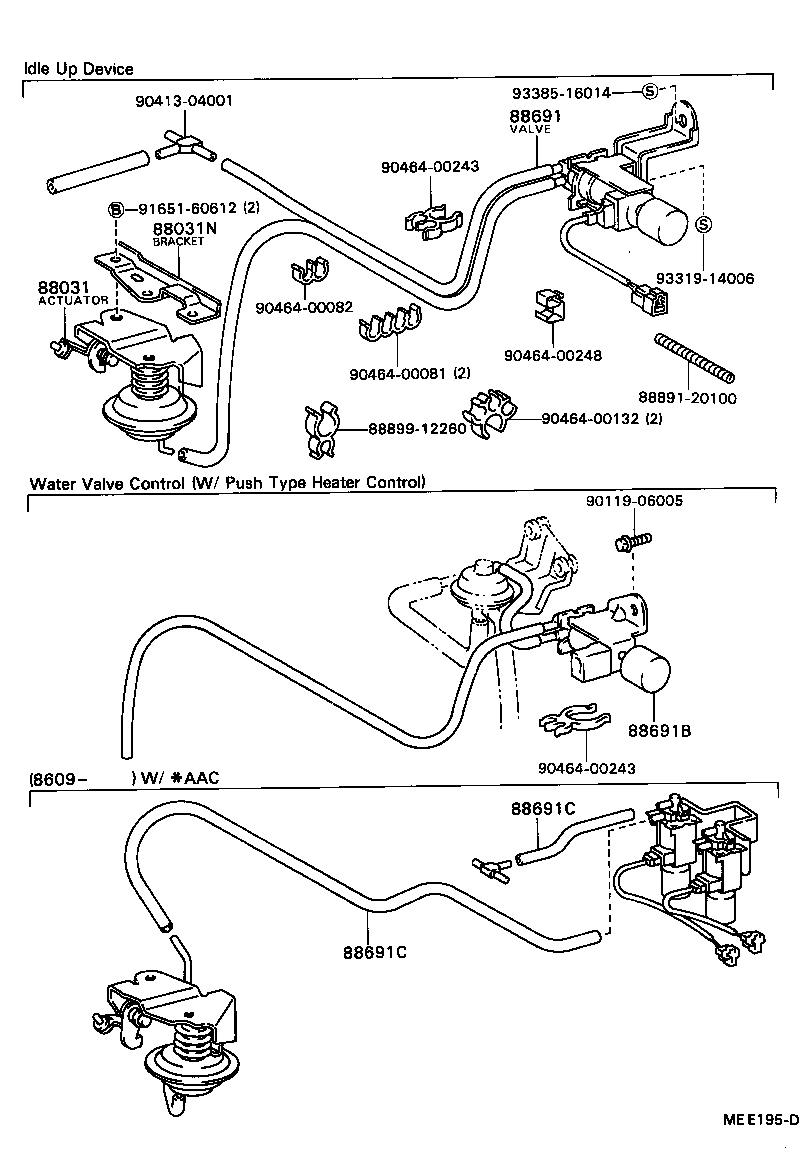

Click highlighted areas on diagram

diagram 88031 88031N 88691 88691B 88691C 88691C 8889120100 8889912260 9011906005 9041304001 9046400081 9046400082 9046400132 9046400243 9046400243 9046400248 9165160612 9331914006 9338516014
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12140

AT151..RHD..(GEN,TH)

 1
88031N - BRACKET, IDLE-UP ACTUATOR
88688-12280

AT151..GEN,TH

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20560

AT151..RHD..(GEN,TH)

 1
Common parts
88891-20100
88899-12260
90119-06005
90413-04001
90464-00081
90464-00082
90464-00132
90464-00243
90464-00248
91651-60612
93319-14006
93385-16014
