AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

Click highlighted areas on diagram

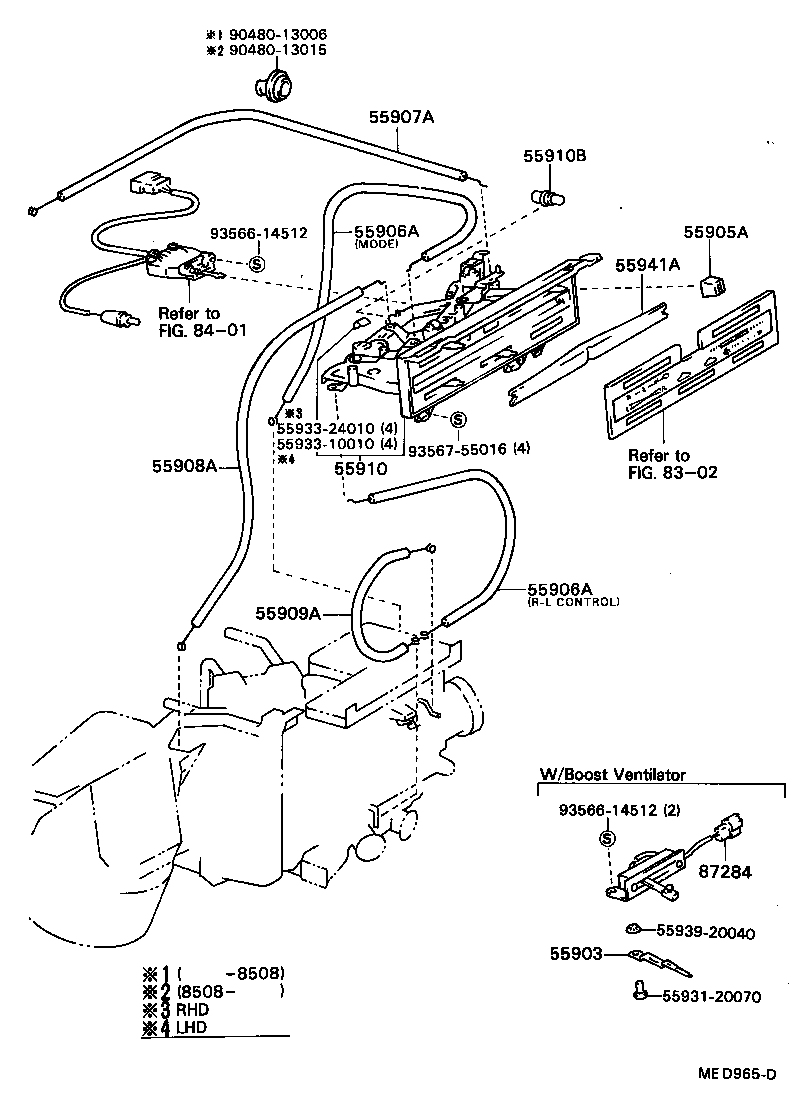

diagram 55903 55905A 55906A 55906A 55907A 55908A 55909A 55910 55910B 5593120070 5593310010 5593324010 5593920040 55941A 8302 8401 87284 9048013006 9048013015 9356614512 9356614512 9356755016
Part # Description Qty Price
55903 - LEVER SUB-ASSY, HEATER CONTROL
55917-20090

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
55905A - KNOB, HEATER CONTROL
55905-12060

AT151,CT150,ST15#

 6
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20150

AT151,CT150,ST15#..RHD

MODE

 1
55906-20160

AT151,CT150,ST15#..RHD

W/HEATER,R-L CONTROL

 1
55906-20190

AT151,CT150,ST150..RHD..(GEN,TH)

W/*BV,R-L CONTROL

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20150

AT151,CT150,ST15#..RHD

MODE

 1
55906-20160

AT151,CT150,ST15#..RHD

W/HEATER,R-L CONTROL

 1
55906-20190

AT151,CT150,ST150..RHD..(GEN,TH)

W/*BV,R-L CONTROL

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20160

AT151,CT150,ST15#..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20080

AT151..LB..RHD..4FC;AT151,CT150,ST150..RHD..(3FC,4F,5F)

 1
55908-20120

AT151,CT150,ST15#..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
87286-20010

AT151,CT150,ST15#..RHD..(EUR,GEN)

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20290

AT151,CT150,ST150..RHD

W/HEATER

 1
55910-20310

AT151,CT150,ST150..RHD..GEN

W/*BV

 1
55910-20291

AT151,CT150,ST15#..RHD..GEN

W/HEATER

 1
55910-20410

AT151,CT150,ST15#..RHD..GEN

W/*BV

 1
55910B - BULB, HEATER CONTROL
90981-11014

AT151,CT150,ST15#

 1
55941A - GUIDE, HEATER CONTROL
55941-20050

AT151,CT150,ST15#

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-20050

AT151,CT150,ST15#..GEN,SAA,TH

 1
Common parts
55931-20070
55933-10010
55933-24010
55939-20040
90480-13006
90480-13015
93566-14512
93567-55016
Linked diagrams
8302
8401

(8310- )RHD

Click highlighted areas on diagram

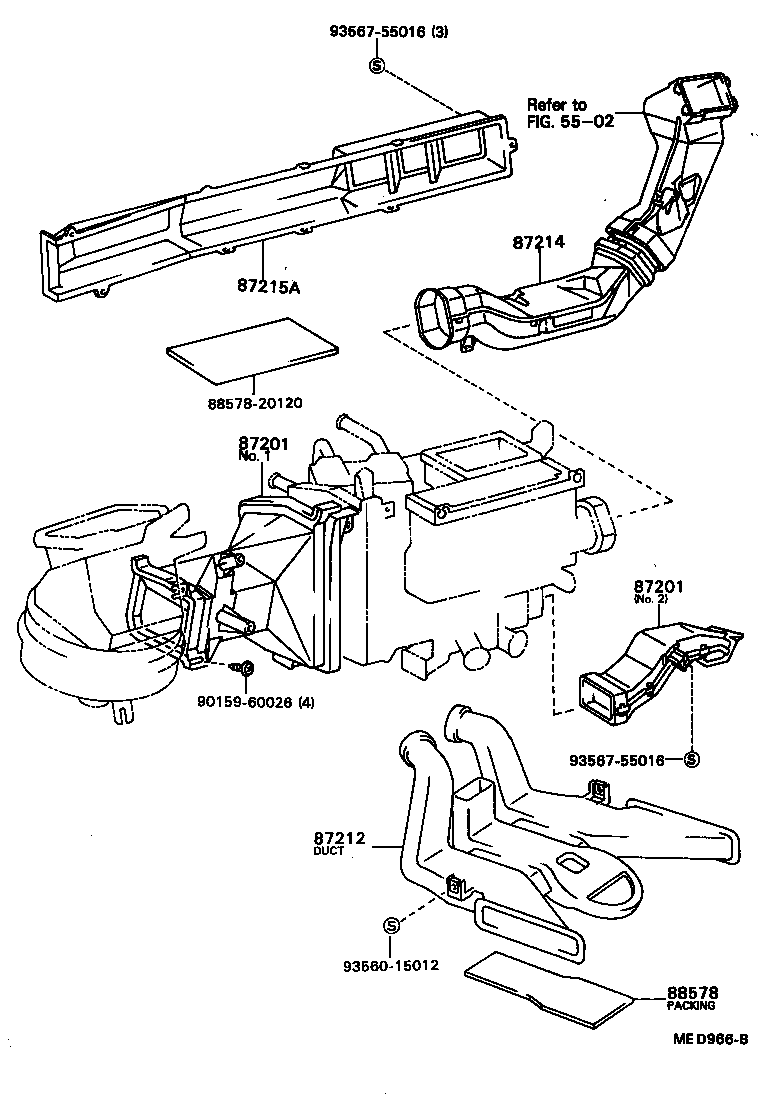

diagram 5502 87201 87201 87212 87214 87215A 88578 8857820120 9015960026 9356015012 9356755016 9356755016
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20100

AT151,CT150,ST15#..RHD..(EUR,GEN)

NO.2

 1
87201-20090

AT151,CT150,ST15#..RHD

NO.1

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20100

AT151,CT150,ST15#..RHD..(EUR,GEN)

NO.2

 1
87201-20090

AT151,CT150,ST15#..RHD

NO.1

 1
87212 - DUCT, AIR, REAR NO.1
87201-20200

AT151,CT150,ST15#..EUR,GEN,SAA

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-20010

AT151,CT150,ST15#..RHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55847-20060

AT151,CT150,ST150..RHD

 1
55847-20060

AT151,CT150,ST15#..RHD..GEN

 1
88578 - PAKING, COOLER AIR DUCT
88578-20190

AT151,CT150,ST15#..GEN,SAA

 1
Common parts
88578-20120
90159-60026
93560-15012
93567-55016
Linked diagrams
5502

(8609- )

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55905A 55905A 55906A 55910 55910B 55921A 5593310010 81850G 81850G 88605A 88890B 9338515010 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12060

AT151,CT150,ST15#

 6
55905A - KNOB, HEATER CONTROL
55905-12060

AT151,CT150,ST15#

 6
55905A - KNOB, HEATER CONTROL
55905-12060

AT151,CT150,ST15#

 6
55905A - KNOB, HEATER CONTROL
55905-12060

AT151,CT150,ST15#

 6
55905A - KNOB, HEATER CONTROL
55905-12060

AT151,CT150,ST15#

 6
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20150

AT151,CT150,ST15#..RHD

MODE

 1
55906-20160

AT151,CT150,ST15#..RHD

W/HEATER,R-L CONTROL

 1
55906-20190

AT151,CT150,ST150..RHD..(GEN,TH)

W/*BV,R-L CONTROL

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20290

AT151,CT150,ST150..RHD

W/HEATER

 1
55910-20310

AT151,CT150,ST150..RHD..GEN

W/*BV

 1
55910-20291

AT151,CT150,ST15#..RHD..GEN

W/HEATER

 1
55910-20410

AT151,CT150,ST15#..RHD..GEN

W/*BV

 1
55910B - BULB, HEATER CONTROL
90981-11014

AT151,CT150,ST15#

 1
Common parts
55933-10010
93385-15010
93567-55016

(8609- )

Click highlighted areas on diagram

diagram 88566A 88625C 88625C 8871822420 9015960128 9017906032
Part # Description Qty Price
Common parts
88718-22420
90159-60128
90179-06032
