AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87130 87130C 87138 8715 87150 9011906088 9017906069 9017906162
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-20140

AT151,CT150,ST15#..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

AT151,CT150,ST15#..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20300

AT151,ST15#..RHD..(EUR,GEN)

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20140

AT151,CT150,ST15#..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-20060

AT151,CT150,ST15#..RHD

 1
87150 - RADIATOR ASSY, HEATER
87150-20290

AT151,CT150,ST15#..RHD..GEN

 1
87150-20290

AT151,ST150..RHD

 1
Common parts
90119-06088
90179-06069
90179-06162
Linked diagrams
8715

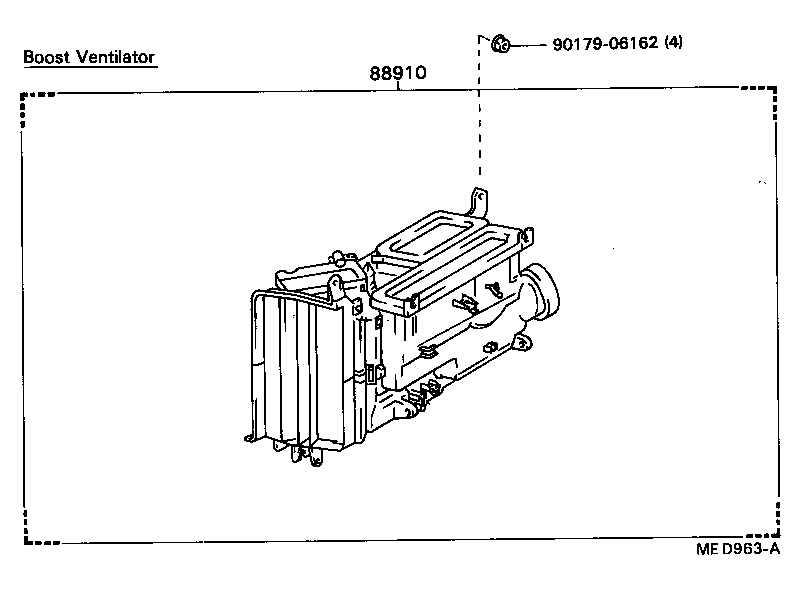

(8310- )

Click highlighted areas on diagram

diagram 88910 9017906162
Part # Description Qty Price
88910 - VENTILATOR ASSY, BOOST
88910-20130

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
Common parts
90179-06162

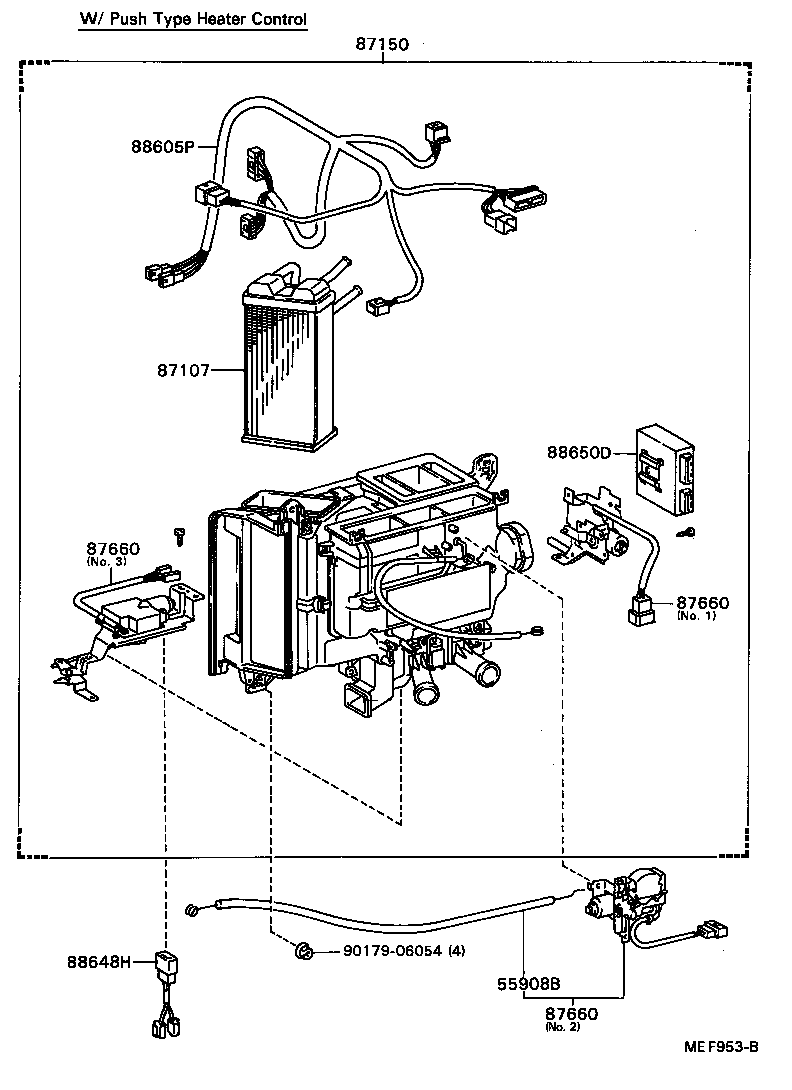

(8609- )

Click highlighted areas on diagram

diagram 55908B 87107 87150 87660 87660 87660 88605P 88648H 88650D 9017906054
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20300

AT151,ST15#..RHD..(EUR,GEN)

 1
87150 - RADIATOR ASSY, HEATER
87150-20290

AT151,CT150,ST15#..RHD..GEN

 1
87150-20290

AT151,ST150..RHD

 1
Common parts
90179-06054
