AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

Click highlighted areas on diagram

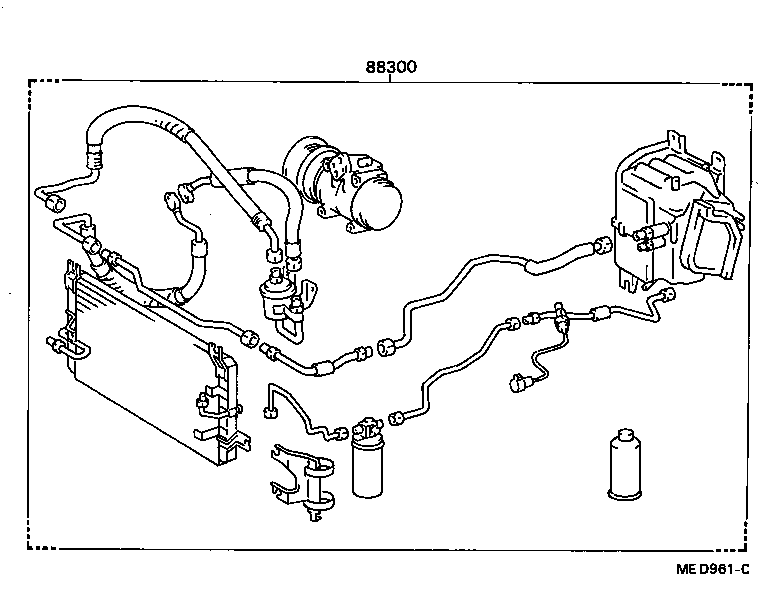

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-2D080

AT151..RHD..MTM..GEN

W/HEATER

 1
88300-2D220

AT151..RHD..MTM..GEN

 1
88300-2G810

AT151..RHD..MTM..GEN

W/HEATER

 1
88300-2H030

AT151..RHD..MTM..GEN

 1
88300-2H040

AT151..RHD..MTM..XL

THAILAND SPEC

 1
88300-2G820

AT151..RHD..MTM..XL

THAILAND SPEC W/HEATER

 1

(8508- )

Click highlighted areas on diagram

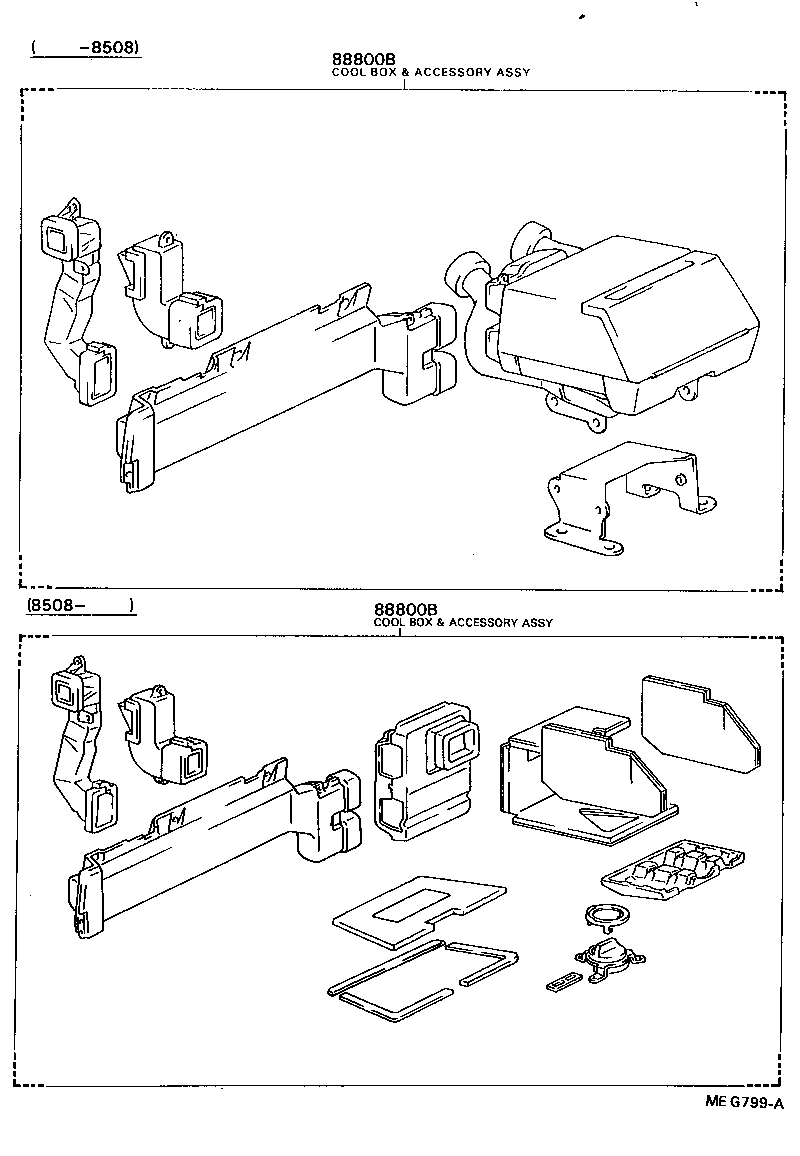

diagram 88800B 88800B
Part # Description Qty Price
88800B - COOL BOX AND ACCESSORY ASSY, NO.1
88800-20080

AT151,CT150,ST150..RHD..GEN

DEEP MAROON

 1
88800-20070

AT151,CT150,ST150..RHD..GEN

SHADOW GRAY

 1
88800-20130

AT151,CT150,ST15#..RHD..GEN

W/HEATER,SHADOW GRAY

 1
88800-20090

AT151,CT150,ST150..RHD..GEN

BLUE

 1
88800-20160

AT151,CT150,ST15#..RHD..GEN

SHADOW GRAY

 1
88800-20140

AT151,CT150,ST15#..RHD..GEN

W/HEATER,DEEP MAROON

 1
88800-20150

AT151,CT150,ST15#..RHD..GEN

W/HEATER,DEEP BLUE

 1
88800-20170

AT151,CT150,ST15#..RHD..GEN

DEEP MAROON

 1
88800-20180

AT151,CT150,ST15#..RHD..GEN

DEEP BLUE

 1
88800B - COOL BOX AND ACCESSORY ASSY, NO.1
88800-20080

AT151,CT150,ST150..RHD..GEN

DEEP MAROON

 1
88800-20070

AT151,CT150,ST150..RHD..GEN

SHADOW GRAY

 1
88800-20130

AT151,CT150,ST15#..RHD..GEN

W/HEATER,SHADOW GRAY

 1
88800-20090

AT151,CT150,ST150..RHD..GEN

BLUE

 1
88800-20160

AT151,CT150,ST15#..RHD..GEN

SHADOW GRAY

 1
88800-20140

AT151,CT150,ST15#..RHD..GEN

W/HEATER,DEEP MAROON

 1
88800-20150

AT151,CT150,ST15#..RHD..GEN

W/HEATER,DEEP BLUE

 1
88800-20170

AT151,CT150,ST15#..RHD..GEN

DEEP MAROON

 1
88800-20180

AT151,CT150,ST15#..RHD..GEN

DEEP BLUE

 1
