AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

Click highlighted areas on diagram

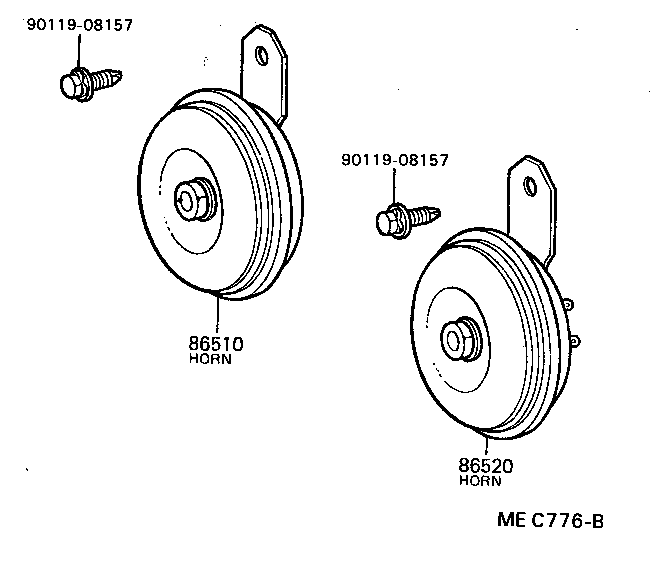

diagram 86510 86520 9011908157 9011908157
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-22100

AT151,CT150,ST150..GEN,SAA

DENSO

 1
86510-22110

AT151,CT150,ST150..GEN,SAA

MARUKO

 1
86510-22090

AT151,CT150,ST150..GEN,SAA

RADIO=MW/SW,EXCL/CHINA SPEC

 1
86510-22100

AT151,CT150,ST15#..GEN,TH

DENSO

 1
86510-22091

AT151,CT150,ST15#..GEN

RADIO=MW/SW,EXCL/CHINA SPEC

 1
86510-22110

AT151,CT150,ST15#..GEN,TH

MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-22110

AT151,CT150,ST15#..GEN,TH

MARUKO

 1
86520-22090

AT151,CT150,ST150..GEN,SAA

RADIO=MW/SW,EXCL/CHINA SPEC

 1
86520-22100

AT151,CT150,ST15#..GEN,TH

DENSO

 1
86520-22091

AT151,CT150,ST15#..GEN

RADIO=MW/SW,EXCL/CHINA SPEC

 1
86520-22100

AT151,CT150,ST150..GEN,SAA

DENSO

 1
86520-22110

AT151,CT150,ST150..GEN,SAA

MARUKO

 1
Common parts
90119-08157
