AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

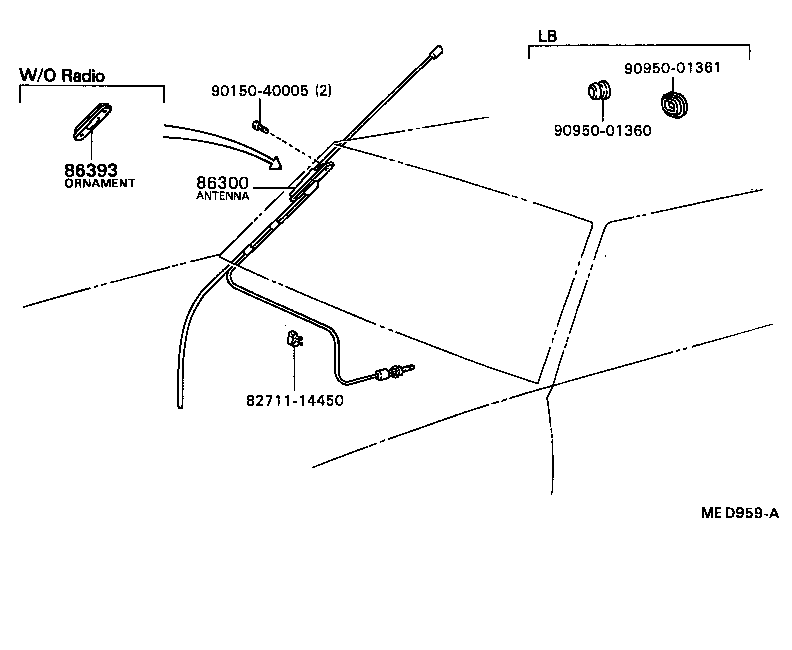

Click highlighted areas on diagram

diagram 8271114450 86300 86393 9015040005 9095001360 9095001361
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-20381

AT151,CT150,ST15#

 1
86300-20382

AT151,CT150,ST15#

 1
86393 - ORNAMENT, ANTENNA
86392-20030

AT151..EUG;AT151..GEN;CT150,ST150

 1
86392-20031

AT151..EUG;AT151..GEN,SAA;CT150,ST15#..EUR,GEN,SAA

 1
Common parts
82711-14450
90150-40005
90950-01360
90950-01361
