AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )RHD

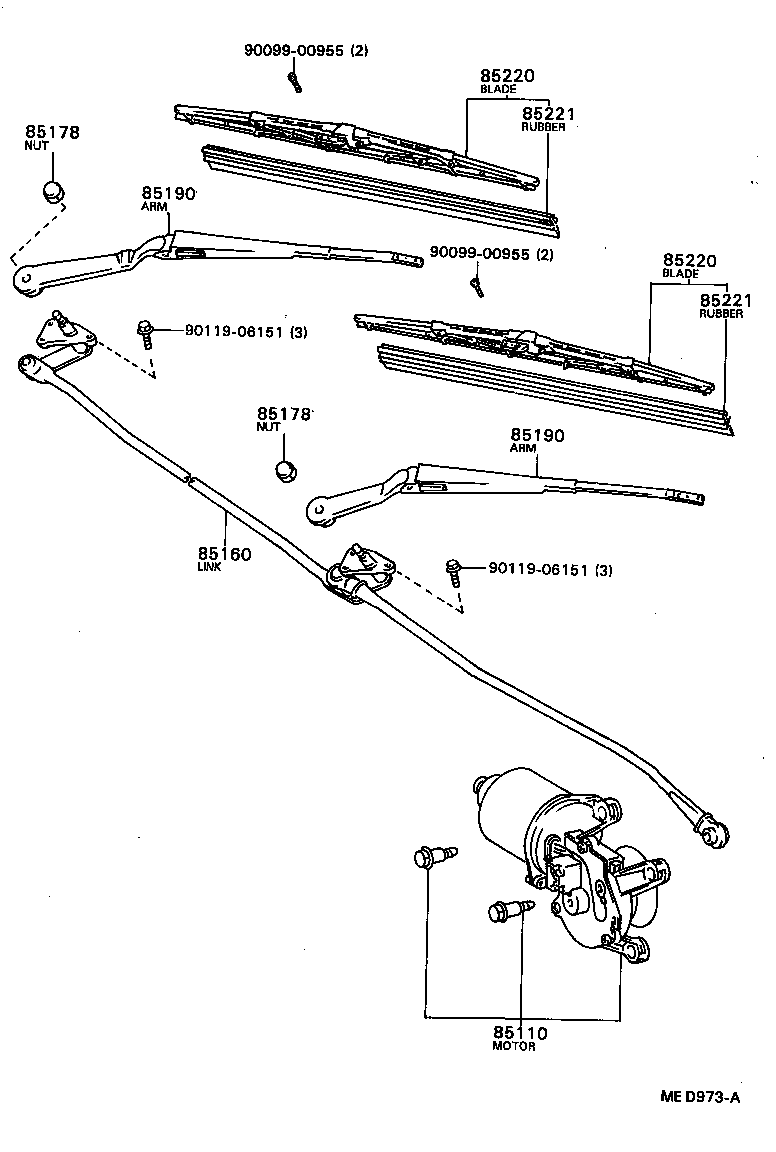

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85220 85220 85221 85221 9009900955 9009900955 9011906151 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20150

AT151,CT150,ST15#..RHD..(GEN,TH)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-20200

AT151,CT150,ST150..RHD

 1
85160-20230

AT151,CT150,ST15#..RHD..(EUR,GEN)

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

AT151,CT150,ST150

 2
90176-08033

AT151,CT150,ST15#..EUR,GEN,SAA

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

AT151,CT150,ST150

 2
90176-08033

AT151,CT150,ST15#..EUR,GEN,SAA

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20370

AT151,CT150,ST150..RHD..GEN

RH

 1
85210-20110

AT151,CT150,ST150..RHD

LH

 1
85210-20150

AT151,CT150,ST15#..RHD..(EUR,GEN)

LH

 1
85190-20470

AT151,CT150,ST15#..RHD..GEN

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20370

AT151,CT150,ST150..RHD..GEN

RH

 1
85210-20110

AT151,CT150,ST150..RHD

LH

 1
85210-20150

AT151,CT150,ST15#..RHD..(EUR,GEN)

LH

 1
85190-20470

AT151,CT150,ST15#..RHD..GEN

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16350

AT151,CT150,ST15#..RHD..(GEN,TH)

RH

 1
85220-16320

AT151,CT150,ST15#..RHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16350

AT151,CT150,ST15#..RHD..(GEN,TH)

RH

 1
85220-16320

AT151,CT150,ST15#..RHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

AT151,CT150,ST15#..RHD..(GEN,TH)

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30120

AT151,CT150,ST15#..RHD..(GEN,TH)

 2
Common parts
90099-00955
90119-06151
