AT151R-TEKDS (1983)
Toyota Corona/Carina 2
(8310- )AT151

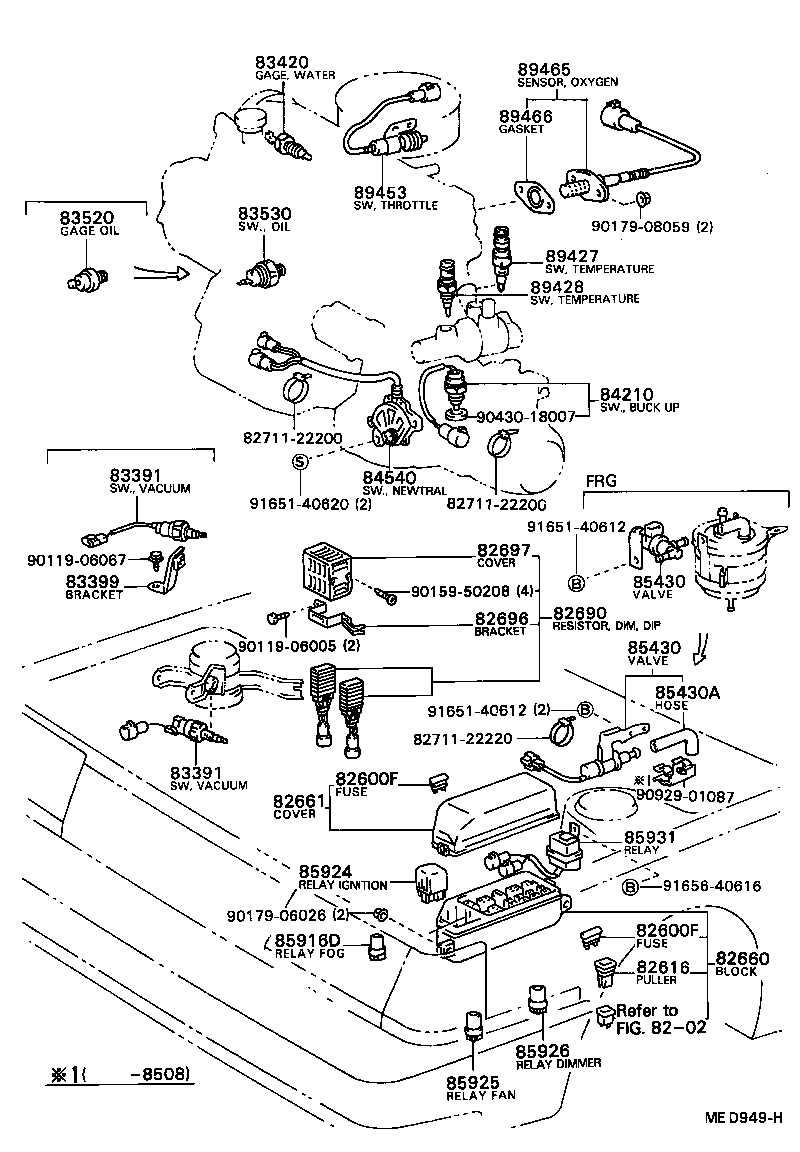

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT151,CT150,ST15# 15A,15A |
12 | ||
| 90982-09002 |
AT151,CT150,ST15# 10A,10A |
1 | ||
| 90982-09004 |
AT151,CT150,ST15#..EUR,GEN,SAA 20A,YELLOW,20A |
4 | ||
| 90982-09005 |
AT151,CT150,ST15# 7.5A,7.5A |
9 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT151,CT150,ST15# 15A,15A |
12 | ||
| 90982-09002 |
AT151,CT150,ST15# 10A,10A |
1 | ||
| 90982-09004 |
AT151,CT150,ST15#..EUR,GEN,SAA 20A,YELLOW,20A |
4 | ||
| 90982-09005 |
AT151,CT150,ST15# 7.5A,7.5A |
9 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AT151,CT150,ST15# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-32040 |
AT151,CT150,ST15#..RHD..(EUR,GEN) |
1 | ||
| 82660-32030 |
AT151,CT150,ST150..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
AT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA) ENGINE ROOM |
1 | ||
| 82661-32030 |
AT151,CT150,ST15#..RHD..(EUR,GEN) COWL SIDE |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AT151,CT150,ST15# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-55011 |
AT151..4F..XL..(GEN,SAA);AT151,CT150..(3FC,4FC,5F)..(GL,XL) YAZAKI |
1 | ||
| 83520-14023 |
AT151,CT150..GL,XL DENSO |
1 | ||
| 83520-14022 |
AT151..4F..XL..(GEN,SAA);AT151,CT150..(3FC,4FC,5F)..(GL,XL) DENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
AT151..4F..TH;AT151..XL..GEN;AT151..EUR,SAA |
1 | ||
| 83530-30050 |
AT151..EUR,SAA;AT151..XL..GEN |
1 | ||
| 83530-14040 |
AT151..EUR;AT151..4F..TH;AT151..(STD,XL)..GEN |
1 | ||
| 83530-12040 |
AT151..EUR;AT151..STD,XL |
1 | ||
| 83530-10020 |
AT151..EUR;AT151..STD,XL |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
AT151,CT150,ST150..MTM..(GEN,SAA,TH) |
1 | ||
| 84210-60010 |
AT151,CT150,ST150..MTM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-12100 |
AT151 |
1 | ||
| 90925-09006 |
AT151..EUG,SDZ;AT151..GEN,SAA,TH |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09006 |
AT151..EUG,SDZ;AT151..GEN,SAA,TH |
1 | ||
| 85430-12100 |
AT151 |
1 | ||
| 85430A - HOSE | ||||
| 90445-14075 |
AT151..EUG,SDZ;AT151..GEN,SAA,TH |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 85913-30020 |
AT151,CT150,ST150 |
1 | ||
| 90987-04002 |
AT151,CT150,ST15# |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AT151,CT150,ST15# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AT151 |
1 | ||
| Common parts | ||||
| 82711-22200 | ||||
| 82711-22220 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90159-50208 | ||||
| 90179-06026 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90929-01087 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(8310- )

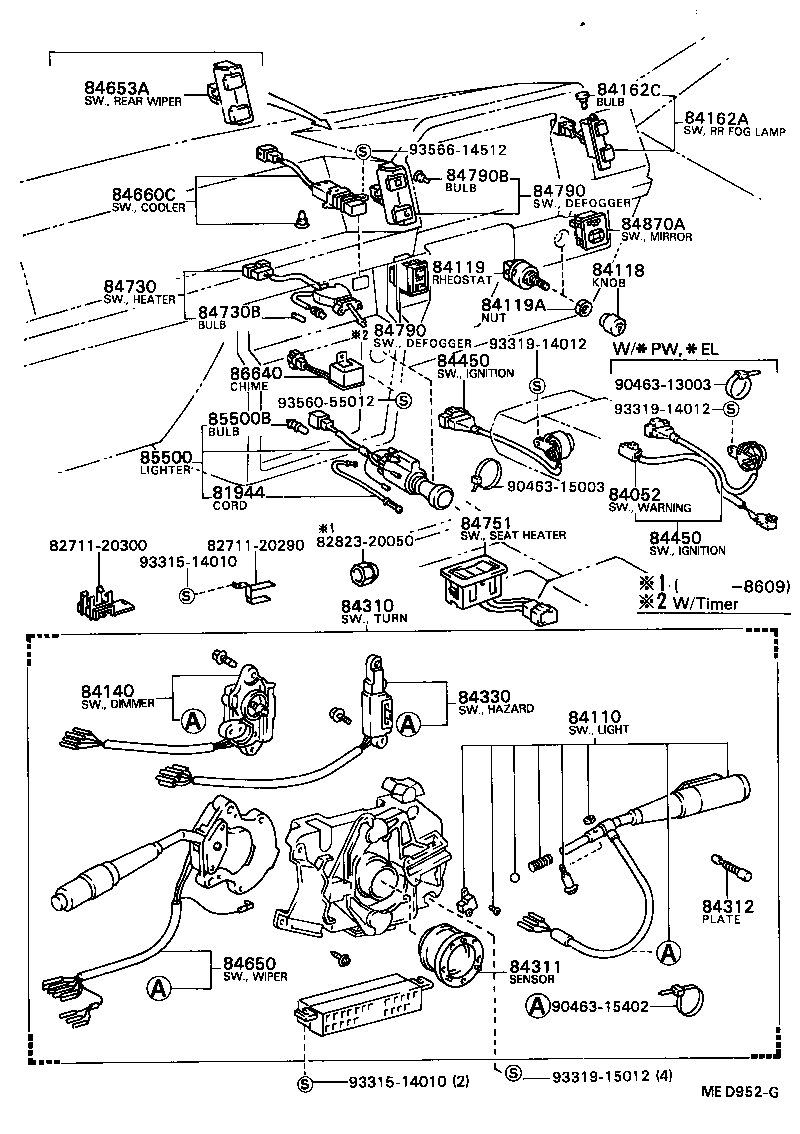

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20040 |
AT151,CT150,ST15# |
1 | ||
| 81944-30010 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29375 |
AT151,CT150,ST150..RHD..(STD,XL)..GEN W/*IW |
1 | ||
| 84112-29365 |
AT151,CT150,ST150..RHD..(STD,XL)..GEN |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20081 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL) |
1 | ||
| 84119-20082 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29215 |
AT151,CT150,ST150..RHD..(STD,XL)..GEN W/*IW |
1 | ||
| 84140-29205 |
AT151,CT150,ST150..RHD..(STD,XL)..GEN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20890 |
AT151,CT150,ST150..RHD..(STD,XL)..GEN |
1 | ||
| 84310-20870 |
AT151,CT150,ST150..RHD..(STD,XL) W/*IW |
1 | ||
| 84310-2B170 |
AT151,CT150,ST150..RHD..XL..GEN W/*IW |
1 | ||
| 84311 - SENSOR, TURN SIGNAL CANCEL | ||||
| 84311-20010 |
AT151,CT150,ST150..RHD..XL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) |
1 | ||
| 84312-32020 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/*VIW |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29195 |
AT151,CT150,ST150..RHD..(STD,XL)..GEN |
1 | ||
| 84332-29205 |
AT151,CT150,ST150..RHD..(STD,XL)..GEN W/*IW |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20130 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
1 | ||
| 84450-20150 |
AT151,CT150,ST15# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20130 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
1 | ||
| 84450-20150 |
AT151,CT150,ST15# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29825 |
AT151,CT150,ST150..RHD..(STD,XL)..GEN |
1 | ||
| 84652-29745 |
AT151,CT150,ST150..RHD..(STD,XL) W/*IW |
1 | ||
| 84652-80037 |
AT151,CT150,ST150..RHD..XL..GEN W/*IW |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20060 |
AT151,CT150,ST15#..RHD..GEN |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20180 |
AT151,CT150,ST15#..EUR,GEN,SAA |
1 | ||
| 84732-20140 |
AT151,CT150,ST150 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT151,CT150,ST15# 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20091 |
AT151,CT150,ST15#..RHD..(EUR,GEN) |
1 | ||
| 84790-20090 |
AT151,CT150,ST150..RHD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20091 |
AT151,CT150,ST15#..RHD..(EUR,GEN) |
1 | ||
| 84790-20090 |
AT151,CT150,ST150..RHD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AT151,CT150,ST15#..EUR,GEN,SAA 12V 1.12W,12V 1.12W,EXCL/NORWAY SPEC |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20190 |
AT151,CT150,ST15# |
1 | ||
| 85500-20180 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT151,CT150,ST15# 14V 1.4W,12V 1.4W |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 82711-20300 | ||||
| 82823-20050 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93560-55012 | ||||
| 93566-14512 | ||||
(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
AT151,CT150,ST15# |
1 | ||
| 81980-22070 |
AT151,CT150,ST15# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT151,CT150,ST15# 15A,15A |
12 | ||
| 90982-09002 |
AT151,CT150,ST15# 10A,10A |
1 | ||
| 90982-09004 |
AT151,CT150,ST15#..EUR,GEN,SAA 20A,YELLOW,20A |
4 | ||
| 90982-09005 |
AT151,CT150,ST15# 7.5A,7.5A |
9 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT151,CT150,ST15# 15A,15A |
12 | ||
| 90982-09002 |
AT151,CT150,ST15# 10A,10A |
1 | ||
| 90982-09004 |
AT151,CT150,ST15#..EUR,GEN,SAA 20A,YELLOW,20A |
4 | ||
| 90982-09005 |
AT151,CT150,ST15# 7.5A,7.5A |
9 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT151,CT150,ST15#..EUR,GEN,SAA 30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT151,CT150,ST15#..EUR,GEN,SAA 30A |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-20020 |
AT151,CT150,ST150..RHD NO.1 |
1 | ||
| 82660-20170 |
AT151,CT150,ST15#..RHD..(EUR,GEN) NO.1 |
1 | ||
| 82660-32010 |
AT151,CT150,ST15#..RHD..(EUR,GEN) NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-20020 |
AT151,CT150,ST150..RHD NO.1 |
1 | ||
| 82660-20170 |
AT151,CT150,ST15#..RHD..(EUR,GEN) NO.1 |
1 | ||
| 82660-32010 |
AT151,CT150,ST15#..RHD..(EUR,GEN) NO.2 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
AT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA) ENGINE ROOM |
1 | ||
| 82661-32030 |
AT151,CT150,ST15#..RHD..(EUR,GEN) COWL SIDE |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT151,CT150,ST15# |
1 | ||
| 85913-30020 |
AT151,CT150,ST150 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
AT151,CT150,ST15#..EUR,GEN,SAA MARUKO |
1 | ||
| 90987-02004 |
AT151,CT150,ST15#..EUR,GEN,SAA DENSO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
AT151,CT150,ST15#..EUR,GEN,SAA MARUKO |
1 | ||
| 90987-02004 |
AT151,CT150,ST15#..EUR,GEN,SAA DENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT151,CT150,ST15# |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-32040 |
CT150;AT151..EUR;AT151,ST150..STD,XL |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
AT151,CT150,ST150..(DX,GL,XL)..(EUR,GEN,SAA) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06026 | ||||
| 91651-40816 | ||||
| 93540-15014 | ||||
| 93560-55014 | ||||
(8310- )

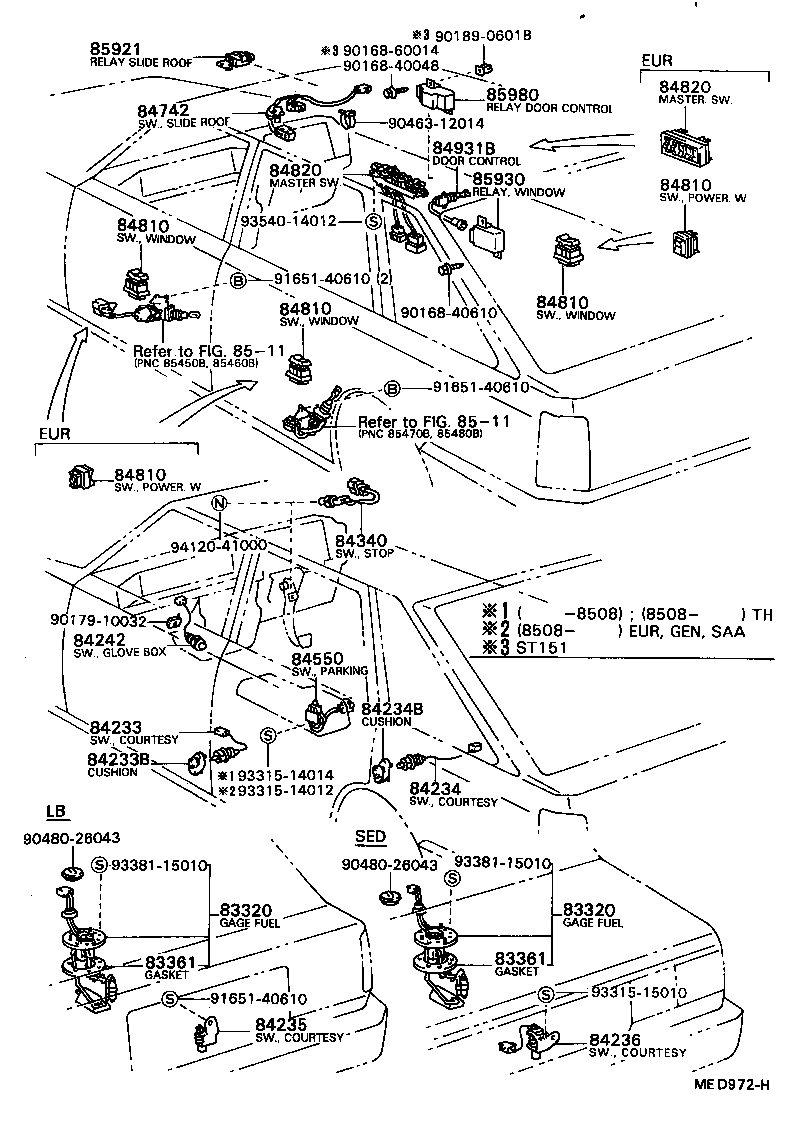

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29795 |
AT151..LB..4FC;AT151..SED..LHD..4FC..GL;AT151,ST150..(3FC,4F,5F)..(GL,STD,XL) W/FUEL WARNING |
1 | ||
| 83320-29796 |
AT151,ST150..GL,STD,XL W/FUEL WARNING |
1 | ||
| 83320-29798 |
AT151,ST150..GL,STD,XL W/FUEL WARNING |
1 | ||
| 83320-80016 |
AT151..GL,STD,XL W/FUEL WARNING |
1 | ||
| 83320-80016 |
AT151,ST150..GEN,TH W/FUEL WARNING |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29795 |
AT151..LB..4FC;AT151..SED..LHD..4FC..GL;AT151,ST150..(3FC,4F,5F)..(GL,STD,XL) W/FUEL WARNING |
1 | ||
| 83320-29796 |
AT151,ST150..GL,STD,XL W/FUEL WARNING |
1 | ||
| 83320-29798 |
AT151,ST150..GL,STD,XL W/FUEL WARNING |
1 | ||
| 83320-80016 |
AT151..GL,STD,XL W/FUEL WARNING |
1 | ||
| 83320-80016 |
AT151,ST150..GEN,TH W/FUEL WARNING |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
AT151,CT150,ST15# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
AT151,CT150,ST15# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
AT151,CT150,ST15# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
AT151,CT150,ST15# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
AT151,CT150,ST15# |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
AT151,CT150,ST15# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AT151,CT150,ST15# TOKAIRIKA |
1 | ||
| 84340-30030 |
AT151,CT150,ST15# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
AT151,CT150,ST150 |
1 | ||
| 84550-16010 |
AT151,CT150,ST15#..EUR,GEN,SAA |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20010 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20010 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| Common parts | ||||
| 90168-40048 | ||||
| 90168-40610 | ||||
| 90168-60014 | ||||
| 90179-10032 | ||||
| 90189-06018 | ||||
| 90463-12014 | ||||
| 90480-26043 | ||||
| 91651-40610 | ||||
| 93315-14012 | ||||
| 93315-14014 | ||||
| 93315-15010 | ||||
| 93381-15010 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
