AT151R-TEKDS (1983)
Toyota Corona/Carina 2
(8310- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT151,CT150,ST15# 12V 3.4W |
13 | ||
| 90981-11018 |
AT151,CT150,ST15#..DX,GL,XL 12V 1.2W W/O SOCKET |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20220 |
AT151,CT150,ST15#..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83138-20240 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN W/O TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT151,CT150,ST15#..DX,GL,XL BULB=12V 1.4W |
9 | ||
| 83101-14030 |
AT151,CT150,ST15# BULB=12V 3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20400 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN W/O TACHO METER |
1 | ||
| 83247-20500 |
AT151,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B160 |
CT150..RHD;AT151..RHD..EUG;AT151,ST150..RHD..(STD,XL) MILE & KM,W/O TACHOMETER |
1 | ||
| 83110-2B130 |
AT151,CT150..RHD..(STD,XL) KM,W/O TACHOMETER |
1 | ||
| 83110-2B170 |
AT151,CT150,ST150..RHD..(GL,XL) MILE & KM,W/TACHOMETER |
1 | ||
| 83110-2B140 |
AT151,CT150,ST150..RHD..(GL,XL)..GEN KM,W/TACHOMETER |
1 | ||
| 83110-2B171 |
AT151,CT150..RHD..(EUR,GEN) MILE & KM,W/TACHOMETER |
1 | ||
| 83110-2B161 |
AT151,CT150,ST150..RHD..XL..GEN MILE & KM,W/O TACHOMETER |
1 | ||
| 83110-2B141 |
AT151,CT150,ST15#..RHD..GEN KM,W/TACHOMETER |
1 | ||
| 83110-2B131 |
AT151,CT150..RHD..XL..GEN KM,W/O TACHOMETER |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-16060 |
AT151,CT150,ST150..RHD..XL..GEN W/O TACHOMETER |
1 | ||
| 83128-20020 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83128-16060 |
AT151,CT150..RHD..(STD,XL)..GEN W/O TACHO METER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20100 |
AT151..RHD..EUG;AT151..RHD..(STD,XL) W/O TACHOMETER |
1 | ||
| 83132-20080 |
AT151,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83132-20440 |
AT151,ST150..RHD..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83132-20540 |
AT151..RHD..XL..GEN;AT151..RHD..(4FC,5F)..(EUR,TH) W/O TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20560 |
AT151,CT150,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83145-20440 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN LH,W/O TACHOMETER |
1 | ||
| 83145-20920 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83145-20500 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN RH,W/O TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20560 |
AT151,CT150,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83145-20440 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN LH,W/O TACHOMETER |
1 | ||
| 83145-20920 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83145-20500 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN RH,W/O TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20560 |
AT151,CT150,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83145-20440 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN LH,W/O TACHOMETER |
1 | ||
| 83145-20920 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83145-20500 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN RH,W/O TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20260 |
AT151..RHD..EUG;AT151..RHD..(STD,XL) W/O TACHOMETER |
1 | ||
| 83243-20280 |
AT151,CT150,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83243-20500 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83243-20460 |
AT151..RHD..XL..GEN W/O TACHOMETER |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
AT151,CT150,ST15#..(GL,XL)..(GEN,SAA) W/DIGITAL CLOCK |
1 | ||
| 83909-14012 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/ANALOGUE CLOCK |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20370 |
AT151,CT150,ST15#..RHD..(GL,XL) DIGITAL CLOCK |
1 | ||
| 83910-20360 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN ANALOGUE CLOCK |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/ANALOGUE CLOCK |
1 | ||
| 83919-12230 |
AT151,CT150,ST15#..(GL,XL)..(GEN,SAA) W/DIGITAL CLOCK |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20080 | ||||
| 83165-20140 | ||||
| 90164-50017 | ||||
| 93540-14012 | ||||
| 94115-70300 | ||||
(8310- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT151,CT150,ST15# 12V 3.4W |
13 | ||
| 90981-11018 |
AT151,CT150,ST15#..DX,GL,XL 12V 1.2W W/O SOCKET |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT151,CT150,ST15# 12V 3.4W |
13 | ||
| 90981-11018 |
AT151,CT150,ST15#..DX,GL,XL 12V 1.2W W/O SOCKET |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20220 |
AT151,CT150,ST15#..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83138-20240 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN W/O TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT151,CT150,ST15#..DX,GL,XL BULB=12V 1.4W |
9 | ||
| 83101-14030 |
AT151,CT150,ST15# BULB=12V 3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT151,CT150,ST15#..DX,GL,XL BULB=12V 1.4W |
9 | ||
| 83101-14030 |
AT151,CT150,ST15# BULB=12V 3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20400 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN W/O TACHO METER |
1 | ||
| 83247-20500 |
AT151,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B160 |
CT150..RHD;AT151..RHD..EUG;AT151,ST150..RHD..(STD,XL) MILE & KM,W/O TACHOMETER |
1 | ||
| 83110-2B130 |
AT151,CT150..RHD..(STD,XL) KM,W/O TACHOMETER |
1 | ||
| 83110-2B170 |
AT151,CT150,ST150..RHD..(GL,XL) MILE & KM,W/TACHOMETER |
1 | ||
| 83110-2B140 |
AT151,CT150,ST150..RHD..(GL,XL)..GEN KM,W/TACHOMETER |
1 | ||
| 83110-2B171 |
AT151,CT150..RHD..(EUR,GEN) MILE & KM,W/TACHOMETER |
1 | ||
| 83110-2B161 |
AT151,CT150,ST150..RHD..XL..GEN MILE & KM,W/O TACHOMETER |
1 | ||
| 83110-2B141 |
AT151,CT150,ST15#..RHD..GEN KM,W/TACHOMETER |
1 | ||
| 83110-2B131 |
AT151,CT150..RHD..XL..GEN KM,W/O TACHOMETER |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-16060 |
AT151,CT150,ST150..RHD..XL..GEN W/O TACHOMETER |
1 | ||
| 83128-20020 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83128-16060 |
AT151,CT150..RHD..(STD,XL)..GEN W/O TACHO METER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20100 |
AT151..RHD..EUG;AT151..RHD..(STD,XL) W/O TACHOMETER |
1 | ||
| 83132-20080 |
AT151,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83132-20440 |
AT151,ST150..RHD..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83132-20540 |
AT151..RHD..XL..GEN;AT151..RHD..(4FC,5F)..(EUR,TH) W/O TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20560 |
AT151,CT150,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83145-20440 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN LH,W/O TACHOMETER |
1 | ||
| 83145-20920 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83145-20500 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN RH,W/O TACHOMETER |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20120 |
AT151,ST150..RHD..(GL,XL) |
1 | ||
| 83242-20320 |
AT151,ST150..RHD..(EUR,GEN) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20260 |
AT151..RHD..EUG;AT151..RHD..(STD,XL) W/O TACHOMETER |
1 | ||
| 83243-20280 |
AT151,CT150,ST150..RHD..(GL,XL) W/TACHOMETER |
1 | ||
| 83243-20500 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/TACHOMETER |
1 | ||
| 83243-20460 |
AT151..RHD..XL..GEN W/O TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-20140 |
AT151,CT150,ST150..RHD..(GL,XL) |
1 | ||
| 83244-20360 |
AT151,ST15#..RHD..(EUR,GEN) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
AT151,CT150,ST15#..(GL,XL)..(GEN,SAA) W/DIGITAL CLOCK |
1 | ||
| 83909-14012 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/ANALOGUE CLOCK |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20370 |
AT151,CT150,ST15#..RHD..(GL,XL) DIGITAL CLOCK |
1 | ||
| 83910-20360 |
AT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN ANALOGUE CLOCK |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/ANALOGUE CLOCK |
1 | ||
| 83919-12230 |
AT151,CT150,ST15#..(GL,XL)..(GEN,SAA) W/DIGITAL CLOCK |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20080 | ||||
| 83165-20140 | ||||
| 90164-50017 | ||||
| 93540-14012 | ||||
| 94115-70300 | ||||
(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT151,CT150,ST15# |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT151,CT150,ST15# |
1 | ||

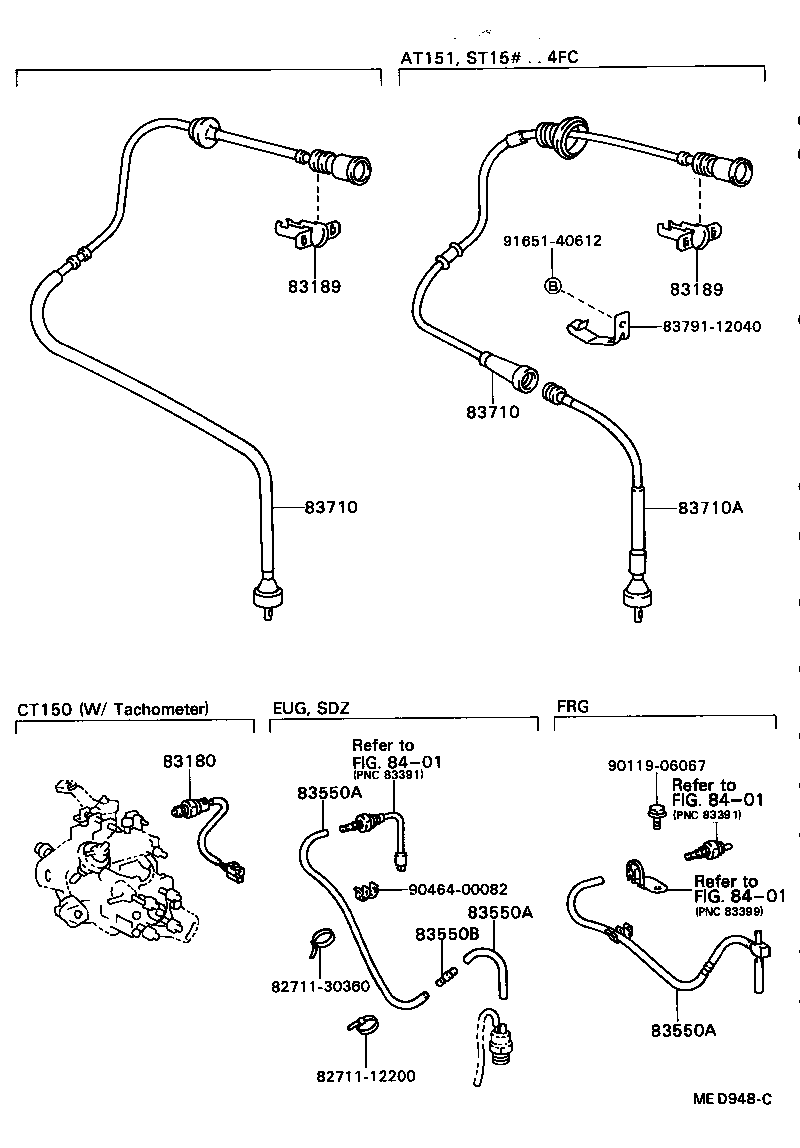

| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20401 |
AT151,CT150,ST151..RHD..(3FC,4F,5F) |
1 | ||
| 83710-20400 |
AT151,CT150..RHD..(3FC,4F,5F) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20401 |
AT151,CT150,ST151..RHD..(3FC,4F,5F) |
1 | ||
| 83710-20400 |
AT151,CT150..RHD..(3FC,4F,5F) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-30360 | ||||
| 83791-12040 | ||||
| 90119-06067 | ||||
| 90464-00082 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
