AT151R-TEKDS (1983)
Toyota Corona/Carina 2
(8310- )

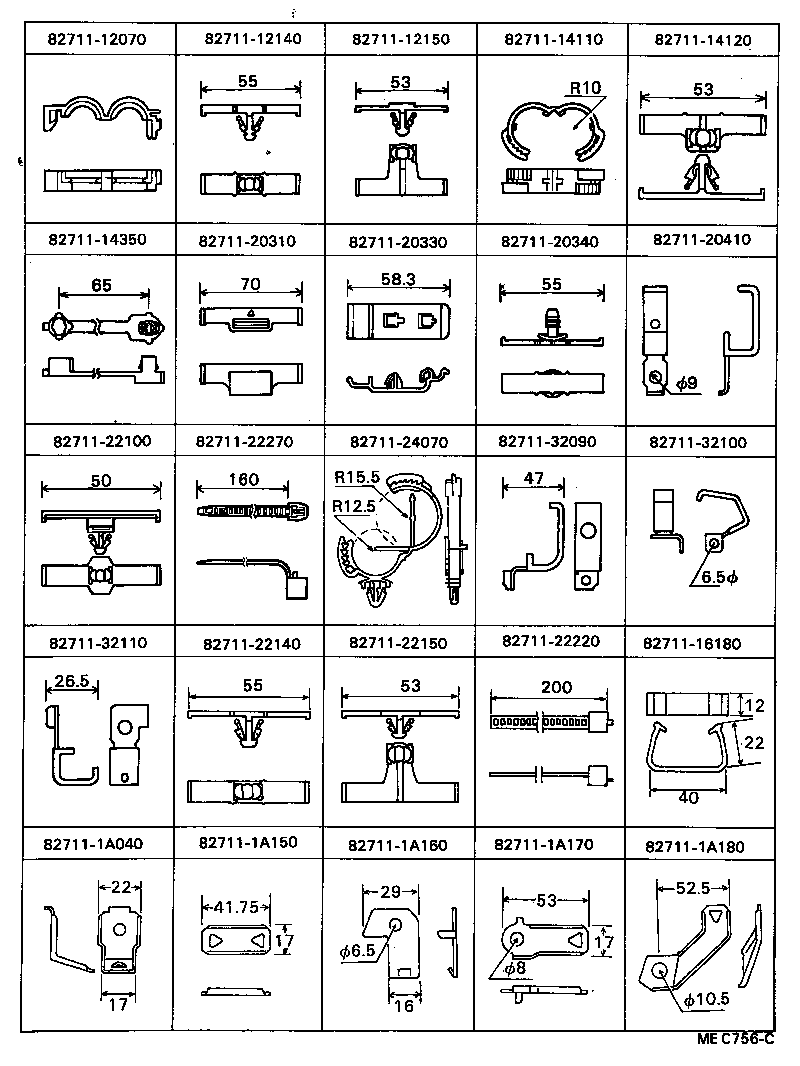

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12070 | ||||
| 82711-12140 | ||||
| 82711-12150 | ||||
| 82711-14110 | ||||
| 82711-14120 | ||||
| 82711-14350 | ||||
| 82711-16180 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A160 | ||||
| 82711-1A170 | ||||
| 82711-1A180 | ||||
| 82711-20310 | ||||
| 82711-20330 | ||||
| 82711-20340 | ||||
| 82711-20410 | ||||
| 82711-22100 | ||||
| 82711-22140 | ||||
| 82711-22150 | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-32090 | ||||
| 82711-32100 | ||||
| 82711-32110 | ||||

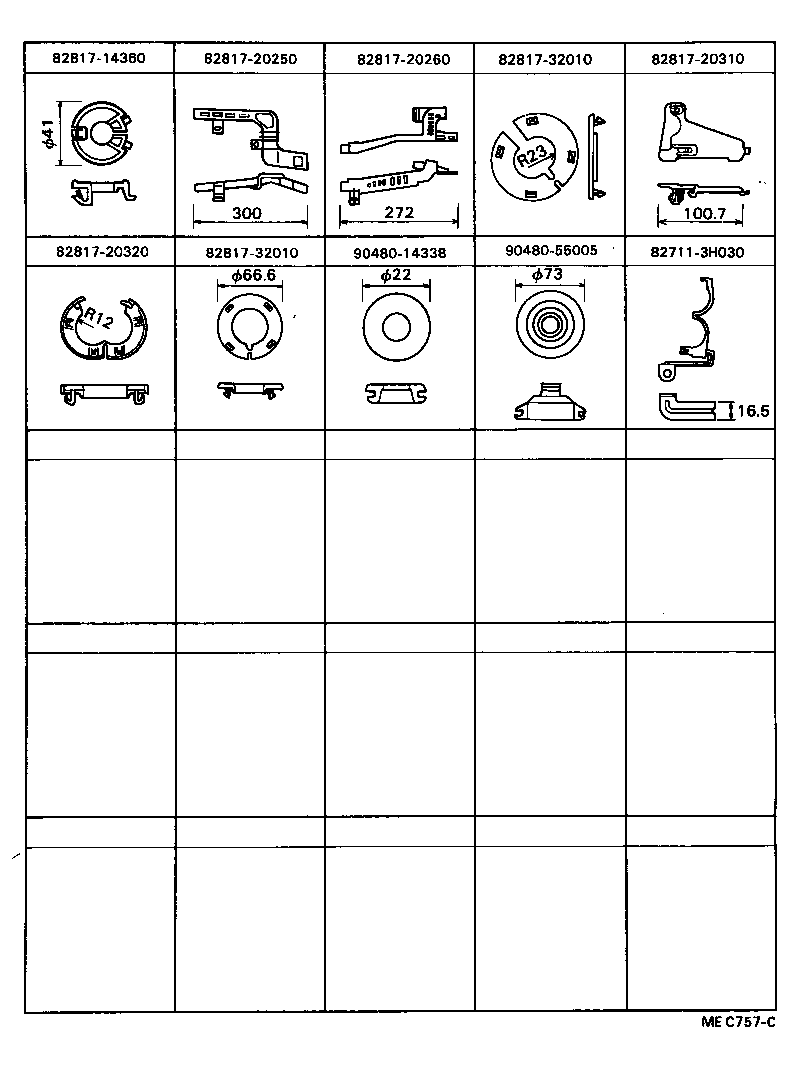

(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3H030 | ||||
| 82817-14360 | ||||
| 82817-20250 | ||||
| 82817-20260 | ||||
| 82817-20310 | ||||
| 82817-20320 | ||||
| 82817-32010 | ||||
| 90480-14338 | ||||
| 90480-55005 | ||||
(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A210 | ||||
| 82711-1A300 | ||||
| 82711-20360 | ||||
| 82711-20400 | ||||
| 82711-20460 | ||||
| 82711-20480 | ||||
| 82711-20630 | ||||
| 82711-20850 | ||||
| 82711-24070 | ||||
| 82711-32060 | ||||
| 82711-32270 | ||||
| 82711-32460 | ||||
| 82711-32490 | ||||
| 82711-32500 | ||||
| 82711-32501 | ||||
| 82711-32510 | ||||
| 82711-32511 | ||||
| 90461-08066 | ||||
| 90461-08202 | ||||
| 90461-08312 | ||||
| 90462-10074 | ||||
| 90463-10336 | ||||
| 90464-00102 | ||||
| 90464-00248 | ||||
| 90464-00284 | ||||

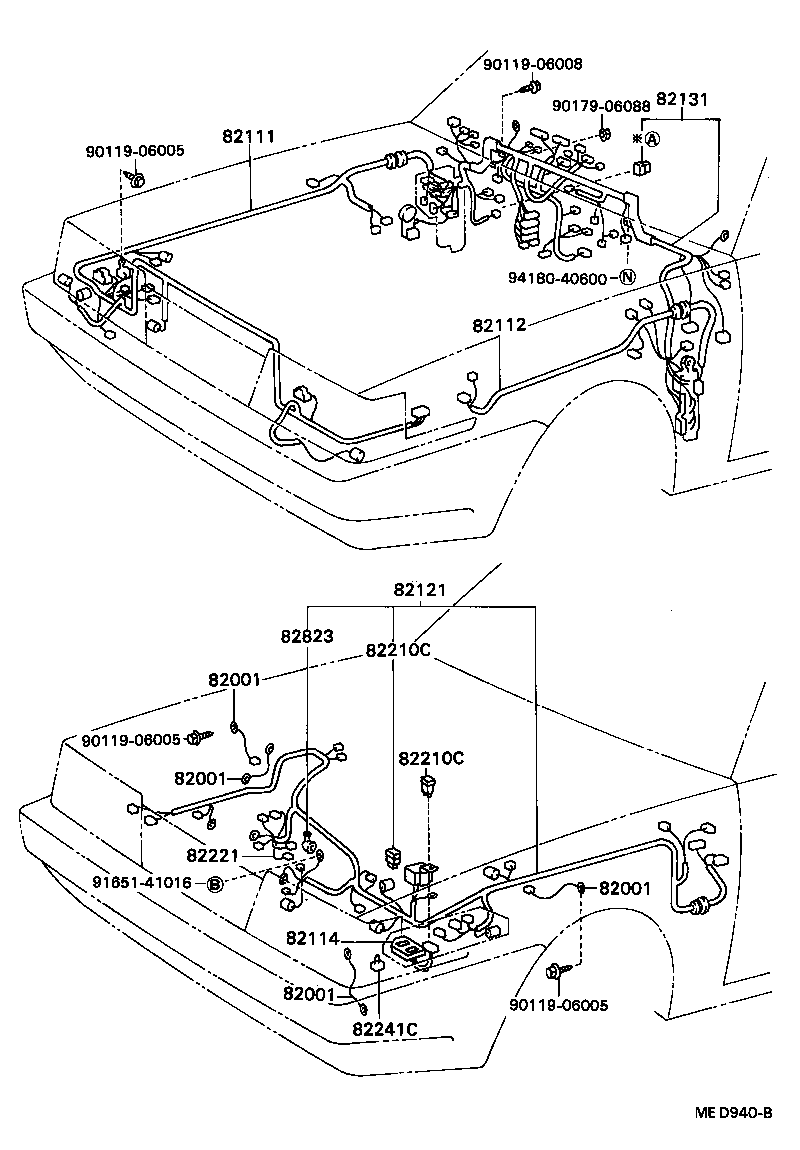

(8310- )AT151 ; (8310- )ST150..GEN,SAA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07177 |
AT151,ST150 CLUTCH HOUSING |
1 | ||
| 90980-07236 |
AT151..EUG,SDZ;AT151..GEN,SAA,TH ENGINE HANGER |
1 | ||
| 90980-07264 |
ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH CLUTCH HOUSING |
1 | ||
| 90980-07299 |
AT151 ENGINE HANGER |
1 | ||
| 86203-20120 |
ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH FENDER RH |
1 | ||
| 90980-07228 |
AT151..LB..4FC;AT151..3FC,4F,5F;AT151..SED..LHD..4FC ENGINE HANGER |
1 | ||
| 86203-20130 |
AT151,ST150 FENDER LH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07177 |
AT151,ST150 CLUTCH HOUSING |
1 | ||
| 90980-07236 |
AT151..EUG,SDZ;AT151..GEN,SAA,TH ENGINE HANGER |
1 | ||
| 90980-07264 |
ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH CLUTCH HOUSING |
1 | ||
| 90980-07299 |
AT151 ENGINE HANGER |
1 | ||
| 86203-20120 |
ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH FENDER RH |
1 | ||
| 90980-07228 |
AT151..LB..4FC;AT151..3FC,4F,5F;AT151..SED..LHD..4FC ENGINE HANGER |
1 | ||
| 86203-20130 |
AT151,ST150 FENDER LH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07177 |
AT151,ST150 CLUTCH HOUSING |
1 | ||
| 90980-07236 |
AT151..EUG,SDZ;AT151..GEN,SAA,TH ENGINE HANGER |
1 | ||
| 90980-07264 |
ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH CLUTCH HOUSING |
1 | ||
| 90980-07299 |
AT151 ENGINE HANGER |
1 | ||
| 86203-20120 |
ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH FENDER RH |
1 | ||
| 90980-07228 |
AT151..LB..4FC;AT151..3FC,4F,5F;AT151..SED..LHD..4FC ENGINE HANGER |
1 | ||
| 86203-20130 |
AT151,ST150 FENDER LH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07177 |
AT151,ST150 CLUTCH HOUSING |
1 | ||
| 90980-07236 |
AT151..EUG,SDZ;AT151..GEN,SAA,TH ENGINE HANGER |
1 | ||
| 90980-07264 |
ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH CLUTCH HOUSING |
1 | ||
| 90980-07299 |
AT151 ENGINE HANGER |
1 | ||
| 86203-20120 |
ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH FENDER RH |
1 | ||
| 90980-07228 |
AT151..LB..4FC;AT151..3FC,4F,5F;AT151..SED..LHD..4FC ENGINE HANGER |
1 | ||
| 86203-20130 |
AT151,ST150 FENDER LH |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-20510 |
AT151,CT150,ST15#..RHD..GEN |
1 | ||
| 82111-20240 |
AT151,CT150,ST150..RHD..GEN |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-20040 |
AT151,CT150,ST15#..RHD..GEN |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-20140 |
AT151..RHD..GEN |
1 | ||
| 82121-20720 |
AT151..RHD..GEN |
1 | ||
| 82121-20721 |
AT151..RHD..GEN |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-20720 |
AT151,CT150,ST150..RHD..(STD,XL) |
1 | ||
| 82131-20730 |
AT151,CT150,ST150..RHD..XL W/TACHO METER |
1 | ||
| 82131-2B660 |
AT151,CT150,ST150..RHD..XL..GEN |
1 | ||
| 82131-2B670 |
AT151,CT150,ST150..RHD..XL..GEN W/TACHO METER |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT151,ST15#..EUR,GEN,SAA 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 90982-08190 |
ST15#;AT151..EUG;AT151..GEN,SAA 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 90982-08188 |
AT151,CT150,ST15# 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AT151,ST15#..EUR,GEN,SAA 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 90982-08190 |
ST15#;AT151..EUG;AT151..GEN,SAA 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 90982-08188 |
AT151,CT150,ST15# 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16010 |
AT151 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-20190 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) |
1 | ||
| 82241-22100 |
AT151,CT150,ST150..STD,XL |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20040 |
AT151..EUG;AT151..GEN,SAA ALTERNATOR |
1 | ||
| 82823-20040 |
AT151,CT150,ST15# ALTERNATOR |
1 | ||
| 82823-20030 |
AT151,CT150,ST15# STARTER |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06008 | ||||
| 90179-06088 | ||||
| 91651-41016 | ||||
| 94180-40600 | ||||

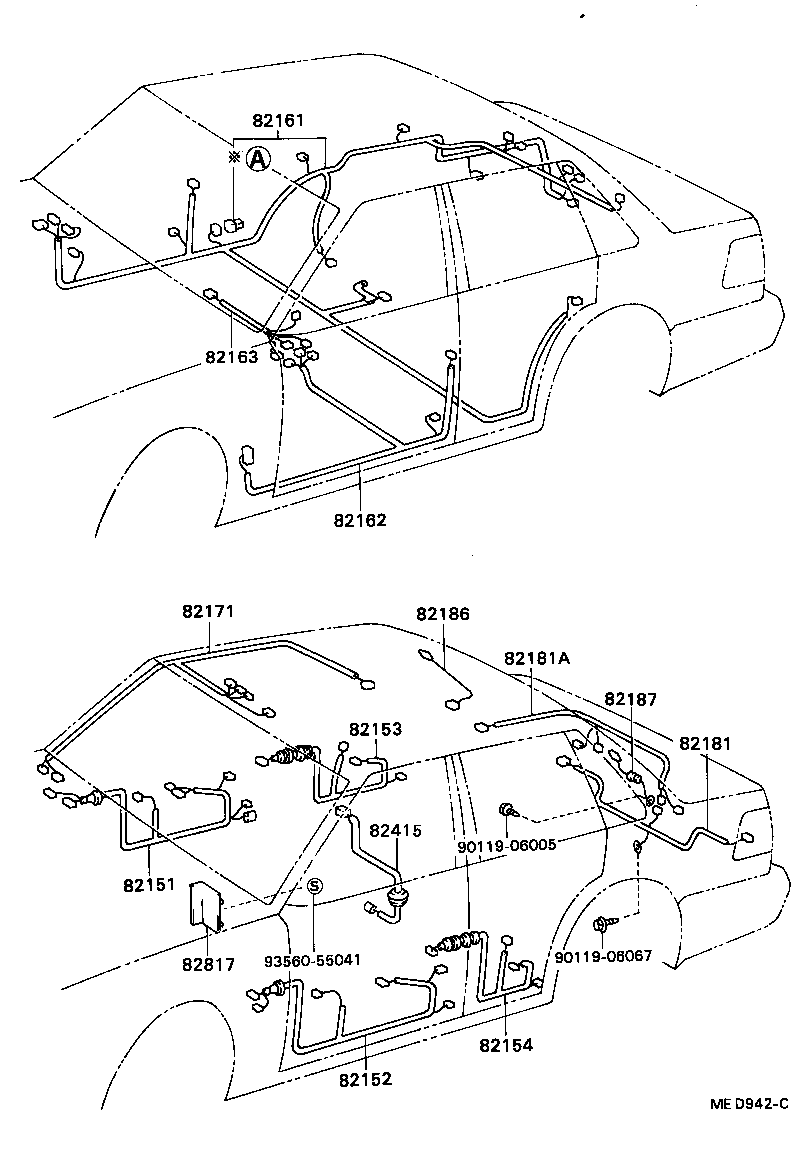

(8310- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-20330 |
AT151,CT150,ST150..SED..RHD..GEN |
1 | ||
| 82161-20331 |
AT151,CT150,ST150..SED..RHD..GEN |
1 | ||
| 82161-20730 |
AT151,CT150,ST15#..SED..RHD..GEN |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20140 |
AT151,CT150,ST15#..RHD..MTM..(EUR,GEN) |
1 | ||
| 82162-20090 |
AT151,CT150,ST150..RHD..MTM |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20090 |
AT151,CT150,ST15# |
1 | ||
| 82171-20140 |
AT151,CT150,ST150..RHD..(EUR,GEN) W/SUN ROOF |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20060 |
AT151,CT150,ST15#..SED..RHD |
1 | ||
| 82181A - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-20020 |
AT151,CT150,ST150..SED..RHD..GEN *LPL=SIDE LIGHTING |
1 | ||
| 82182-20031 |
AT151,CT150,ST150..SED..RHD..GEN |
1 | ||
| 82182-20022 |
AT151,CT150,ST150..SED..RHD..GEN *LPL=SIDE LIGHTING |
1 | ||
| 82182-20032 |
AT151,CT150,ST150..SED..RHD..GEN |
1 | ||
| 82182-20021 |
AT151,CT150,ST150..SED..RHD..GEN *LPL=SIDE LIGHTING |
1 | ||
| 82182-20030 |
AT151,CT150,ST150..SED..RHD..GEN |
1 | ||
| 82182-20110 |
AT151,CT150,ST15#..SED..RHD..GEN |
1 | ||
| 82182-20100 |
AT151,CT150,ST150..SED..RHD..GEN *LPL=SIDE LIGHTING |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-20050 |
AT151,CT150,ST15#..SED..(EUR,GEN,SAA) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20040 |
AT151,CT150,ST15#..SED..(EUR,GEN,SAA) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 93560-55041 | ||||

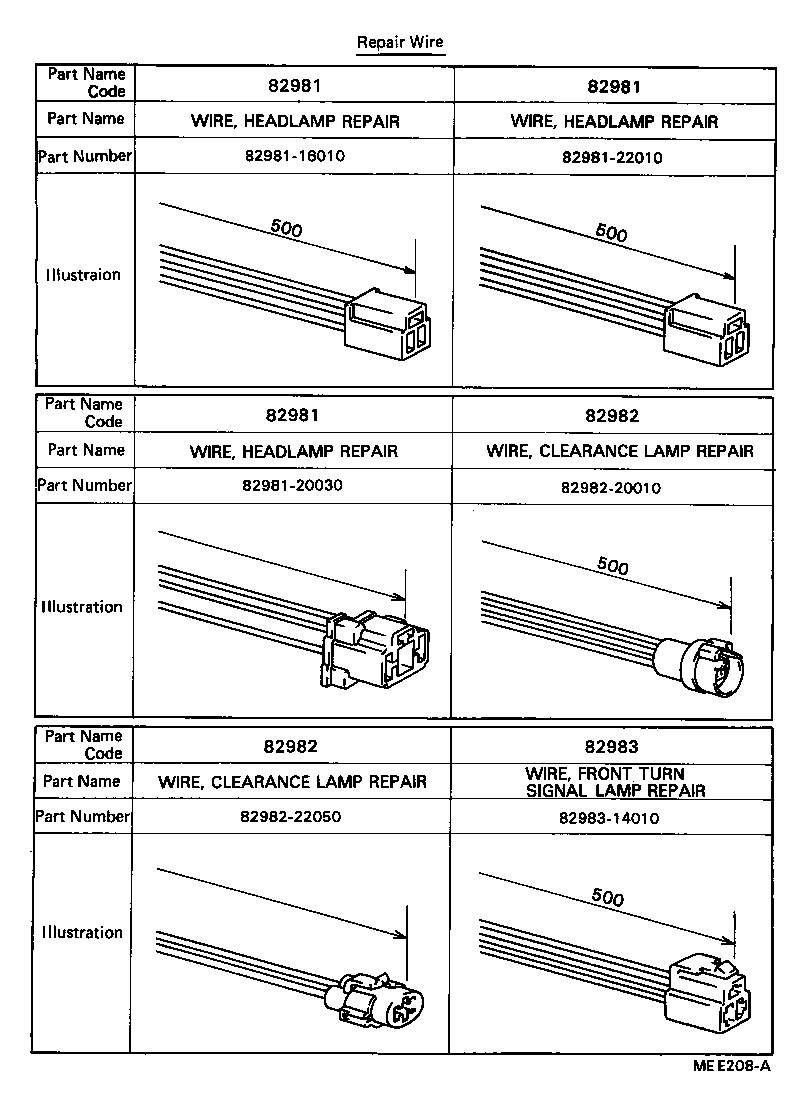

(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
AT151,CT150,ST15#..EUR,GEN,SAA |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
AT151,CT150,ST15#..EUR,GEN,SAA |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-14010 |
AT151,CT150,ST150..GEN,SAA |
1 | ||
| 82983-30010 |
AT151,CT150,ST15#..EUR,GEN,SAA |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82981-20030 | ||||
| 82981-22010 | ||||
| 82982-20010 | ||||
| 82982-22050 | ||||
| 82983-14010 | ||||
(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-14010 |
AT151,CT150,ST150..GEN,SAA |
1 | ||
| 82983-30010 |
AT151,CT150,ST15#..EUR,GEN,SAA |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-16010 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
AT151,ST150 |
1 | ||
| 82991-20040 |
AT151..EUG,SDZ;AT151..GEN,SAA;ST15#..EUR,GEN,SAA |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
AT151,ST150 |
1 | ||
| 82991-20040 |
AT151..EUG,SDZ;AT151..GEN,SAA;ST15#..EUR,GEN,SAA |
1 | ||
| Common parts | ||||
| 82983-30010 | ||||
| 82984-22010 | ||||
| 82984-22020 | ||||
| 82985-16010 | ||||
| 82991-20040 | ||||
| 82991-20050 | ||||

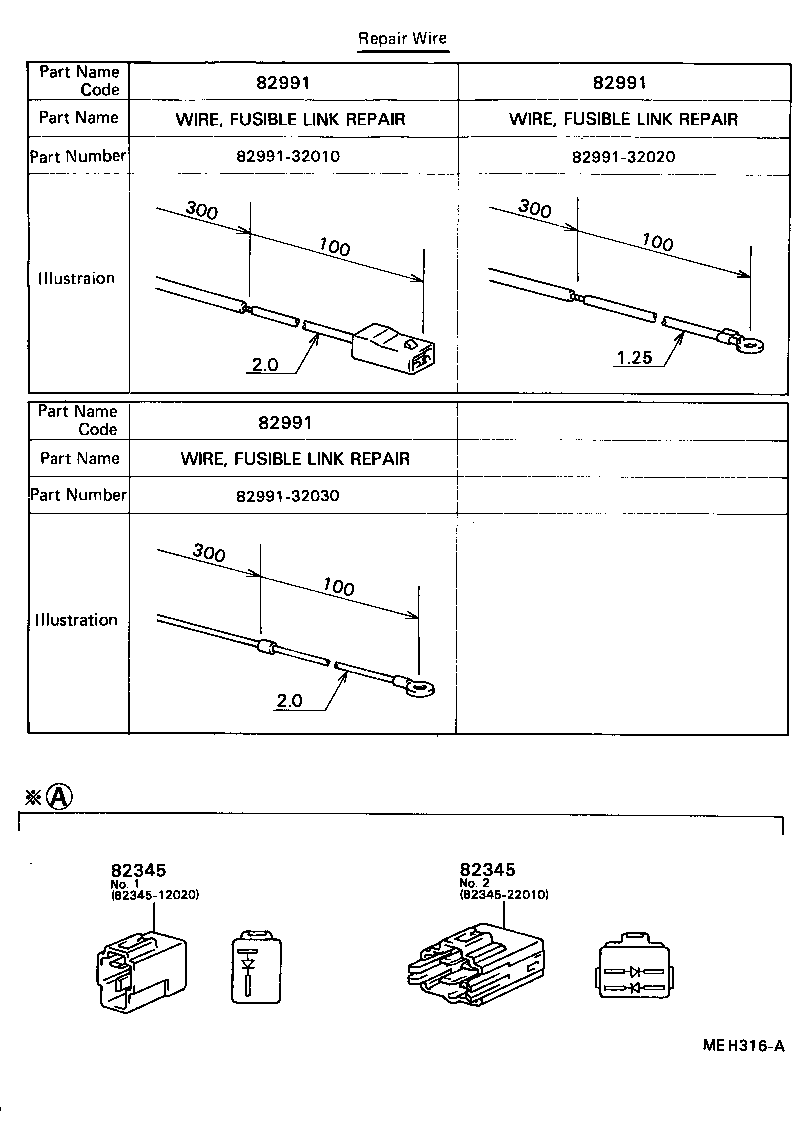

(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12020 |
AT151,CT150,ST150 CONNECTOR=2P |
2 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
AT151,CT150,ST150 CONNECTOR=2P |
2 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
AT151,ST150 |
1 | ||
| 82991-20040 |
AT151..EUG,SDZ;AT151..GEN,SAA;ST15#..EUR,GEN,SAA |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
AT151,ST150 |
1 | ||
| 82991-20040 |
AT151..EUG,SDZ;AT151..GEN,SAA;ST15#..EUR,GEN,SAA |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-32010 |
AT151,ST150 |
1 | ||
| 82991-20040 |
AT151..EUG,SDZ;AT151..GEN,SAA;ST15#..EUR,GEN,SAA |
1 | ||
| Common parts | ||||
| 82345-12020 | ||||
| 82345-22010 | ||||
| 82991-32010 | ||||
| 82991-32020 | ||||
| 82991-32030 | ||||
