AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

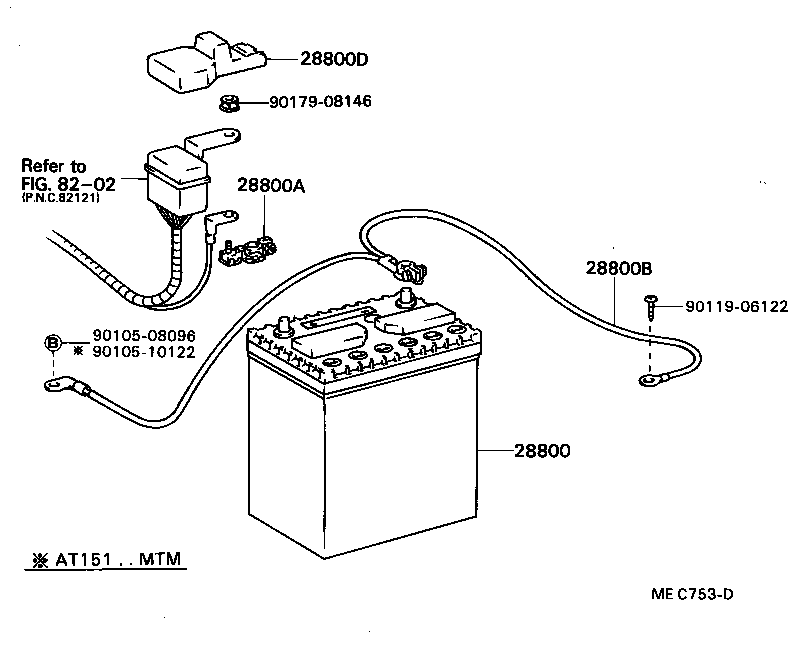

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800D 8202 9010508096 9010510122 9011906122 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-43070

4AL#,1SL..AT151,ST150..EUR,GEN

55D23L-MF

 1
28800-31031

4ALC..AT151..FRG;4AL,1S#,2SEL..AT151,ST15#..EUR,GEN,SAA

32C24L,32C24L(N40L)

 1
28800-31031

4AL,1SL..AT151,ST150

32C24L,32C24L(N40L)

 1
28800-30131

4AL#,1SL..AT151,ST150..EUR,GEN

55D26R,55D26L(N50ZL)

 1
28800-15050

4AL#,1S#,2SEL..AT151,ST15#..EUR,GEN

55D23L,55D23L-MF

 1
28800-72010

4AL,1SL..AT151,ST150..GEN,SAA,TH

34B19L(S),34B19L(NS40ZAL)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05022

4AL#,2CL,1SL..AT151,CT150,ST150

 1
90982-05030

4AL#,1S#..AT151,ST150..EUR,GEN,SAA

 1
28800B - CABLE, BATTERY TO GROUND
82123-20040

4AL#,1S#..AT151,ST150

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20120

4AL#,1SL..AT151,ST150

 1
82821-12190

4AL#,1S#..AT151,ST150..EUR,GEN,SAA

 1
Common parts
90105-08096
90105-10122
90119-06122
90179-08146
Linked diagrams
8202
