AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

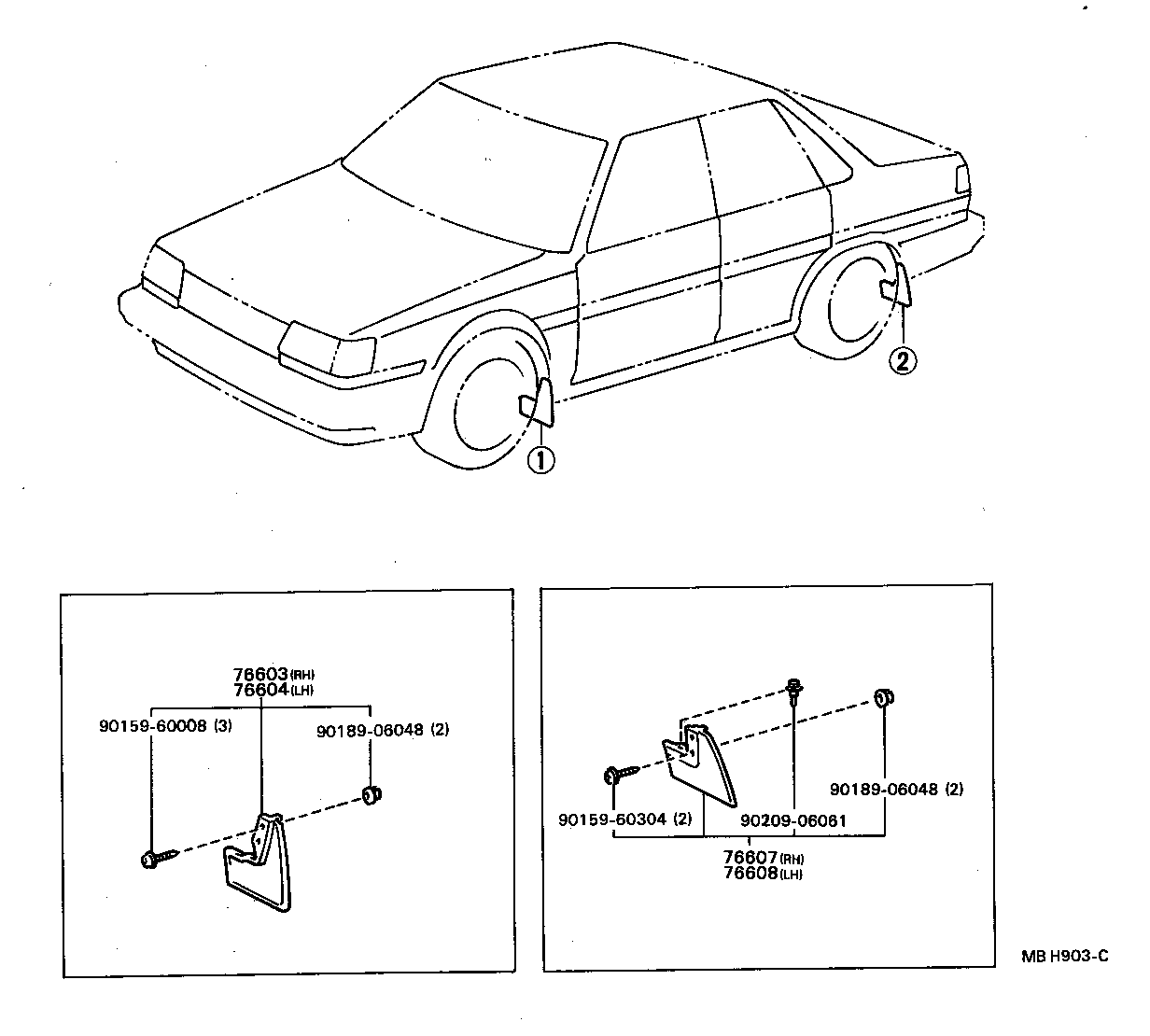

Click highlighted areas on diagram

diagram 76603 76604 76607 76608 9015960008 9015960304 9018906048 9018906048 9020906061
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-29015

AT151,CT150,ST150..(DX,GL,XL)..(EUR,GEN,SAA)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-29015

AT151,CT150,ST150..(DX,GL,XL)..(EUR,GEN,SAA)

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29015

AT151,CT150,ST150..(GL,XL)..(GEN,SAA)

 1
76625-29065

AT151,ST15#..GEN,SAA

W/*UB

 1
76625-29015

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29015

AT151,CT150,ST150..(GL,XL)..(GEN,SAA)

 1
76626-29065

AT151,ST15#..GEN,SAA

W/*UB

 1
76626-29015

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
Common parts
90159-60008
90159-60304
90189-06048
90209-06061
