AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

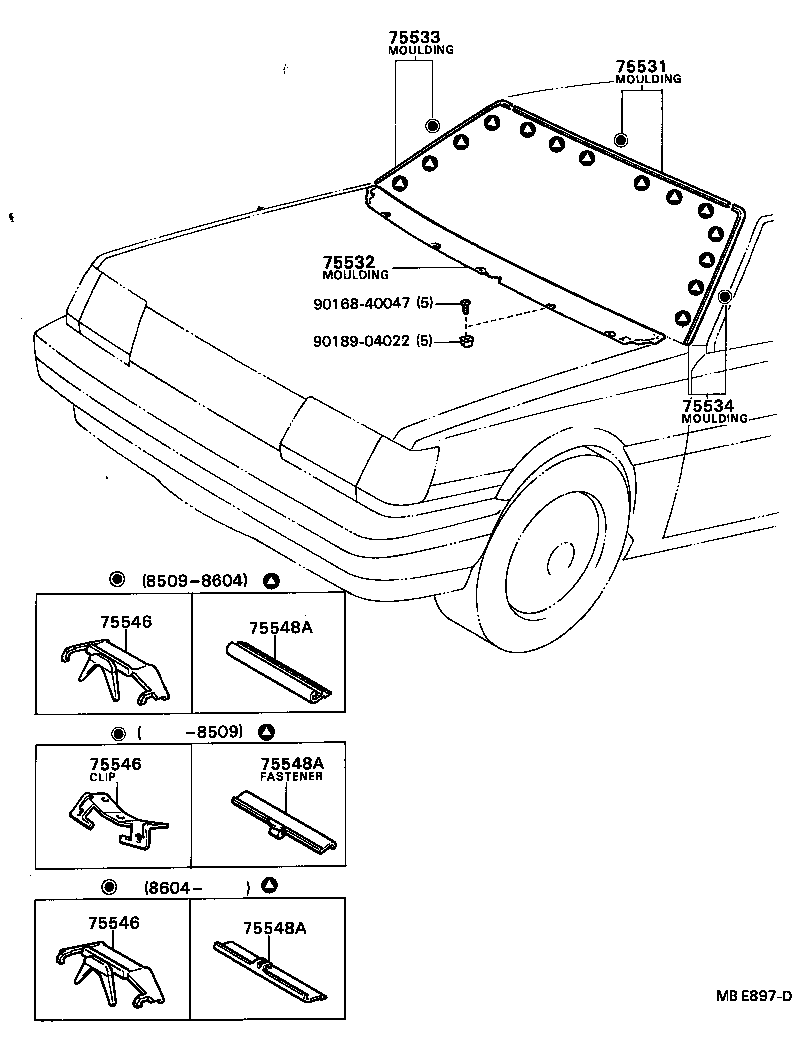

Click highlighted areas on diagram

diagram 75531 75532 75533 75534 75546 75546 75546 75548A 75548A 75548A 9016840047 9018904022
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-20191

AT151,CT150,ST15#

 1
75531-20190

AT151,CT150,ST15#

 1
75532 - MOULDING, WINDSHIELD, LOWER
75535-20140

AT151,CT150,ST15#

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-20181

AT151,CT150,ST15#

 1
75533-20180

AT151,CT150,ST15#

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-20191

AT151,CT150,ST15#

 1
75534-20190

AT151,CT150,ST15#

 1
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75545-20020

AT151,CT150,ST15#

UPR

 5
75545-20042

AT151,CT150,ST15#

UPR

 6
75546-20030

AT151,CT150,ST15#

SIDE

 6
75546-20041

AT151,CT150,ST15#

SIDE

 8
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75545-20020

AT151,CT150,ST15#

UPR

 5
75545-20042

AT151,CT150,ST15#

UPR

 6
75546-20030

AT151,CT150,ST15#

SIDE

 6
75546-20041

AT151,CT150,ST15#

SIDE

 8
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75545-20020

AT151,CT150,ST15#

UPR

 5
75545-20042

AT151,CT150,ST15#

UPR

 6
75546-20030

AT151,CT150,ST15#

SIDE

 6
75546-20041

AT151,CT150,ST15#

SIDE

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20080

AT151,CT150,ST15#

 14
75548-32010

AT151,CT150,ST15#

 14
75549-10020

AT151,CT150,ST15#

 14
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20080

AT151,CT150,ST15#

 14
75548-32010

AT151,CT150,ST15#

 14
75549-10020

AT151,CT150,ST15#

 14
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20080

AT151,CT150,ST15#

 14
75548-32010

AT151,CT150,ST15#

 14
75549-10020

AT151,CT150,ST15#

 14
Common parts
90168-40047
90189-04022
