AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

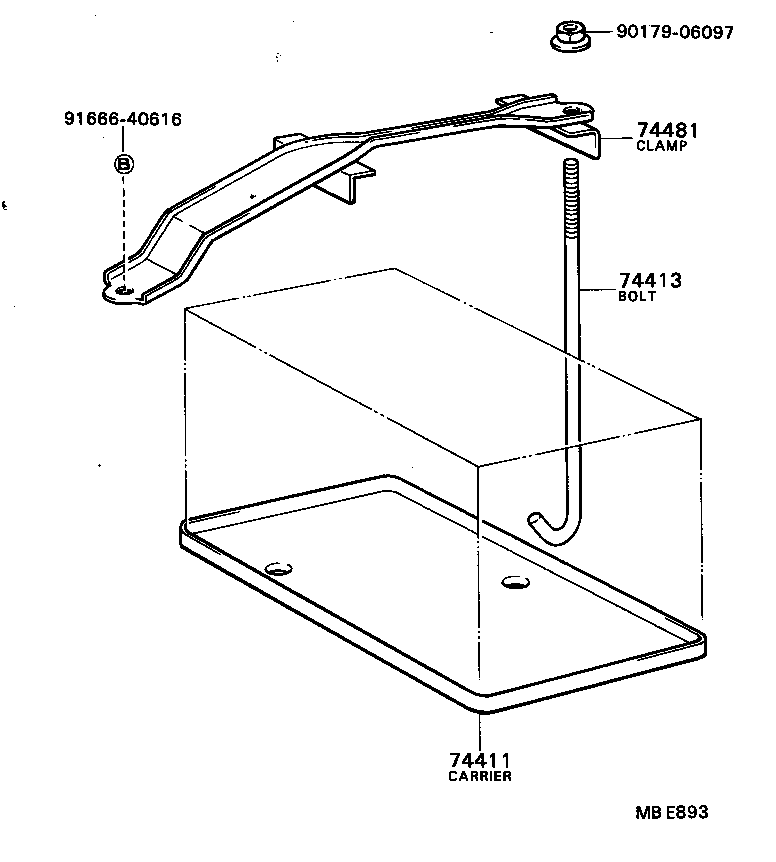

Click highlighted areas on diagram

diagram 74411 74413 74481 9017906097 9166640616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14050

AT151,ST15#..GEN,SAA,TH

NS40ZAL

 1
74431-14020

AT151..EUG;AT151..GEN,SAA;ST15#..EUR,GEN,SAA

N40L

 1
74431-14030

AT151,CT150,ST15#..EUR,GEN

N50ZL,55D23L,NX110-5L

 1
74413 - BOLT, BATTERY CLAMP
74451-16010

AT151,CT150,ST15#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-20110

AT151,ST15#..GEN,SAA,TH

NS40ZAL

 1
74404-20120

AT151,CT150,ST15#..EUR,GEN

N50ZL,55D23L,NX110-5L,NX120-7L

 1
74404-20130

AT151..EUG;AT151..GEN,SAA;ST15#..EUR,GEN,SAA

N40L

 1
Common parts
90179-06097
91666-40616
