AT151R-TEKDS (1983)
Toyota Corona/Carina 2
(8310-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B29012 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B29004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B28004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B29013 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2089004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71071-2089002 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71071-2B20004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28103 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2B28104 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71071-2B30004 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089003 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2B28102 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71071-2089102 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2089103 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28204 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28202 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2B20002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B20014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B30003 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B30014 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089104 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B30002 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B20003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28203 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28213 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2089112 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2B28212 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2089114 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089113 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28214 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20094 |
AT151,CT150,ST150 L=305 |
2 | ||
| 90580-20108 |
AT151,CT150,ST150 L=550 |
4 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2064004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2064012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2064013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2047004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71072-2047003 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-2047002 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71072-2065004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047104 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047102 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-2047103 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2065002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2065014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2065003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2047112 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-2047114 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047113 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B21004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B21013 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B21012 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B22004 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B22002 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B22003 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2089102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2089004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71073-2089104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B22002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2089002 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71073-2B22014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B22003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B61003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B61004 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B62003 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2089003 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-2B61002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2B62004 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2B62002 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2089114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-29040 |
AT151,CT150,ST150 L=440 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2074004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2074012 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2057002 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71074-2082003 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2074013 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057003 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-2057004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71074-2057102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2082002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2057104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2057103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2082004 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082002 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2B27002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B28002 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B27004 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2B28004 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2B27003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B28003 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B29004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B29013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B40013 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B40012 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B40004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B30002 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B41003 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30003 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B41002 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B29103 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-2B13002 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71410-2B13004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71410-2B41004 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29102 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71410-2B13003 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-2B29104 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71410-2B30004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29202 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13104 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B13103 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29203 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30102 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13102 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B29204 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B30104 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B41102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B41104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B41103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29213 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30103 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B13113 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29214 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B13114 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29212 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13112 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2067004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2067013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2067012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2071002 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2071003 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2058104 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058002 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71420-2071004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71420-2058003 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-2058102 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-2058103 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2071103 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2071102 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-2071104 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058114 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058113 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2058112 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B26012 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B26013 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39013 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39012 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B26004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B34004 |
AT151,CT150,ST150..STD,XL PF,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B40002 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B40004 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39004 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07003 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2B07002 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71430-2B40003 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39104 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71430-2B07004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71430-2B07104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39102 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71430-2B07103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39202 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B39103 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2B34002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B07102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B40102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B34014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B40103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B40104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B34003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39204 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B39203 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39212 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B07113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39214 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39213 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2084004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2084013 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2084012 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2B06004 |
AT151,CT150,ST150..STD,XL PF,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71440-2B02003 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2B02002 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71440-2B02104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B49003 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49002 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B02103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49004 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B06002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,ROSE BEIGE,MAROON,TRIM3# |
1 | ||
| 71440-2B06102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B06003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B06014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B06103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49012 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B06104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49014 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B49013 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B02112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20380 |
AT151,CT150,ST150..GEN,SAA |
1 | ||
| 71511-20440 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20440 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 71511-20380 |
AT151,CT150,ST150..GEN,SAA |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20320 |
AT151,CT150,ST150 |
1 | ||
| 71551-20320 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71551-20380 |
AT151,CT150,ST150..XL..(GEN,SAA) W/LUMBER SUPPORT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20320 |
AT151,CT150,ST150 |
1 | ||
| 71551-20380 |
AT151,CT150,ST150..XL..(GEN,SAA) W/LUMBER SUPPORT |
1 | ||
| 71551-20320 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-20170 |
AT151,CT150,ST15# |
1 | ||
| 71571-24010 |
AT151,CT150,ST150 |
2 | ||
| 71581C - PAD, FRONT SEAT BACK CORNER, C | ||||
| 71583-20070 |
AT151,CT150,ST150 |
4 | ||
| 71583-20070 |
AT151,CT150,ST150..XL |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20320 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71610-20330 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) W/VERTICAL ADJUSTER |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20150 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71620-20160 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20310 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71630-20330 |
AT151,CT150,ST150..RHD..(GL,XL) W/LUMBER SUPPORT |
1 | ||
| 71630-20310 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O LUMBER SUPPORT |
1 | ||
| 71630-20440 |
AT151,CT150,ST150..RHD..XL..GEN W/LUMBER SUPPORT |
1 | ||
| 71630-20480 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-20220 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O LUMBER SUPPORT |
1 | ||
| 71640-20220 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71640-20310 |
AT151,CT150,ST150..RHD..XL..GEN W/LUMBER SUPPORT |
1 | ||
| 71640-20330 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1406004 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1406003 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010004 |
AT151,CT150,ST150..RHD..(GL,XL) W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2010002 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010003 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1406012 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010014 |
AT151,CT150,ST15#..RHD W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1406034 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..XL W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1406004 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1406003 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010004 |
AT151,CT150,ST150..RHD..(GL,XL) W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2010002 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010003 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1406012 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010014 |
AT151,CT150,ST15#..RHD W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1406034 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..XL W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407003 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O *VA,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1407004 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1407034 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,XL) W/O *VA,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-1407012 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O *VA,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2001002 |
AT151,CT150,ST15#..GEN,SAA,TH DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71861-2001003 |
AT151,CT150,ST15#..GEN,SAA,TH SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71861-2001004 |
AT151,CT150,ST150..GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 71861-2001014 |
AT151,CT150,ST15#..GEN,SAA,TH BLUE,BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2001002 |
AT151,CT150,ST15#..GEN,SAA,TH DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71861-2001003 |
AT151,CT150,ST15#..GEN,SAA,TH SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71861-2001004 |
AT151,CT150,ST150..GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 71861-2001014 |
AT151,CT150,ST15#..GEN,SAA,TH BLUE,BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2001003 |
AT151,CT150,ST15#..GEN,SAA,TH SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71862-2001002 |
AT151,CT150,ST15#..GEN,SAA,TH DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862-2001004 |
AT151,CT150,ST150..GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 71862-2001014 |
AT151,CT150,ST15#..GEN,SAA,TH BLUE,BLUE,TRIM8# |
1 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-3201013 |
AT151,CT150,ST150..XL LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71922-3201034 |
AT151,CT150,ST150..XL LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71922-3201035 |
AT151,CT150,ST150..XL ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1458005 |
AT151,CT150,ST150..XL W/ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-2038014 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1458002 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038005 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-1458014 |
AT151,CT150,ST150..XL W/ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038002 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038003 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458003 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458024 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038024 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1458005 |
AT151,CT150,ST150..XL W/ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-2038014 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1458002 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038005 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-1458014 |
AT151,CT150,ST150..XL W/ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038002 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038003 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458003 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458024 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038024 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||

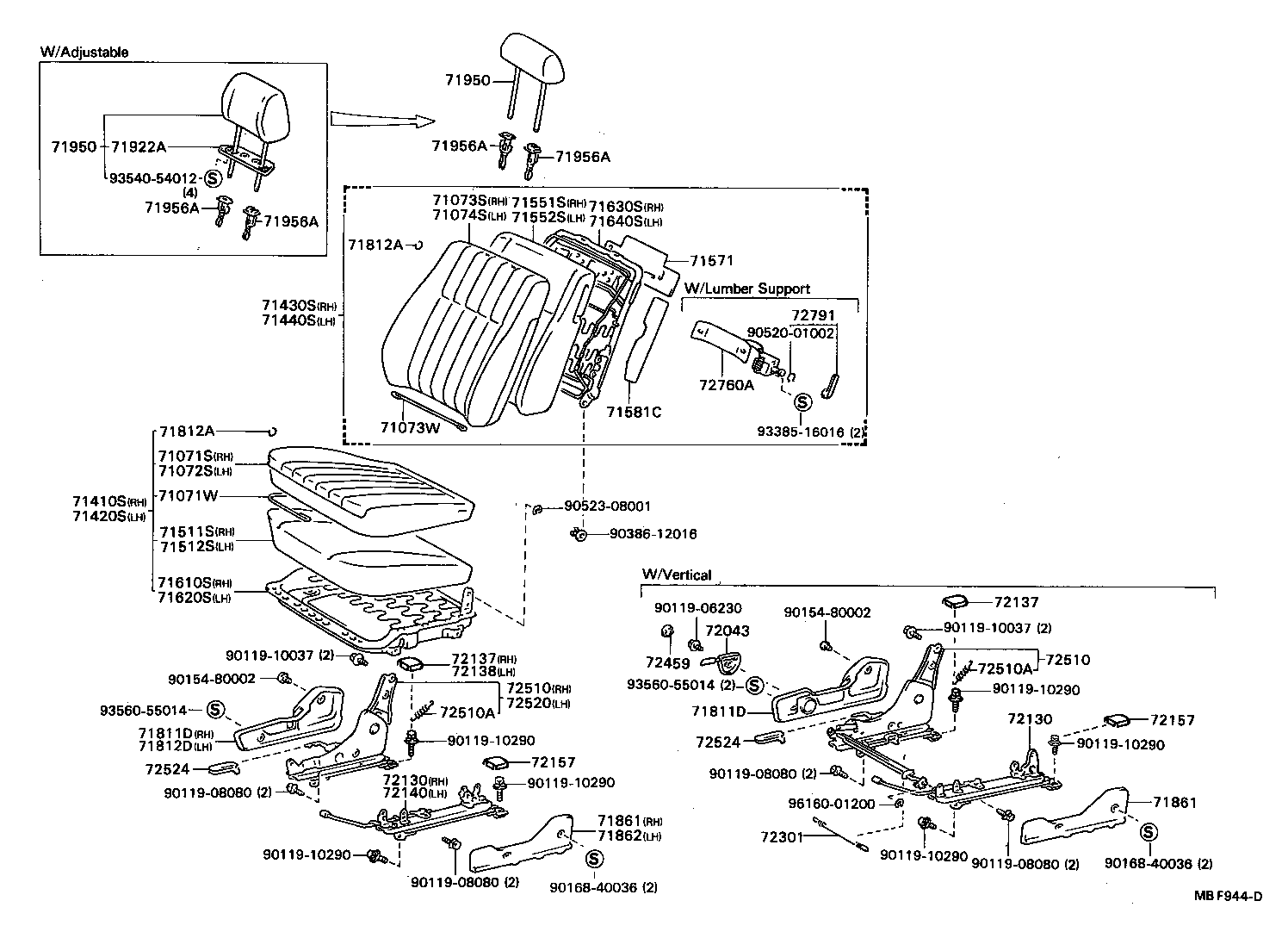

| 72043 - LEVER SUB-ASSY, SEAT LIFTER | ||||
| 72043-2001002 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043-2001004 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 72043-2001003 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-20230 |
ST150..RHD..XL;AT151..LHD..GL..GEN;AT151,CT150..STD,XL;ST150..LHD..(GEN,SAA) W/O *VA |
1 | ||
| 72130-20190 |
AT151,CT150,ST15#..RHD..(GL,XL)..(GEN,TH) W/*VA |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-20230 |
ST150..RHD..XL;AT151..LHD..GL..GEN;AT151,CT150..STD,XL;ST150..LHD..(GEN,SAA) W/O *VA |
1 | ||
| 72130-20190 |
AT151,CT150,ST15#..RHD..(GL,XL)..(GEN,TH) W/*VA |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-20130 |
ST150..RHD;AT151..LB..GEN;ST150..LHD..XL;CT150,ST151..GEN;AT151..SED..RHD..(GEN,TH);AT151..SED..LHD..(STD,XL) W/O *VA |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20180 |
AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA) |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-1201004 |
AT151,CT150,ST150..DX,GL,XL BLUE,BLUE,TRIM8# |
1 | ||
| 72459-1201002 |
AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72459-1201024 |
AT151,CT150,ST15#..EUR,GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 72459-1201003 |
AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-20170 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..XL W/O *VA |
1 | ||
| 72010-20110 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA |
1 | ||
| 72010-20100 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-20170 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..XL W/O *VA |
1 | ||
| 72010-20110 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA |
1 | ||
| 72010-20100 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AT151,CT150,ST15# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AT151,CT150,ST15# |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-20130 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O *VA |
1 | ||
| 72020-20170 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,XL) W/O *VA |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT151,CT150,ST150 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401043 |
AT151,CT150,ST15# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401014 |
AT151,CT150,ST150 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401013 |
AT151,CT150,ST150 RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT151,CT150,ST15# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401043 |
AT151,CT150,ST15# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401044 |
AT151,CT150,ST15# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401022 |
AT151,CT150,ST15# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401013 |
AT151,CT150,ST150 LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401044 |
AT151,CT150,ST15# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT151,CT150,ST150 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401043 |
AT151,CT150,ST15# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401014 |
AT151,CT150,ST150 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401013 |
AT151,CT150,ST150 RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT151,CT150,ST15# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401043 |
AT151,CT150,ST15# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401044 |
AT151,CT150,ST15# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401022 |
AT151,CT150,ST15# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401013 |
AT151,CT150,ST150 LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401044 |
AT151,CT150,ST15# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-14030 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202022 |
AT151,CT150,ST150..DX,GL,XL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-2202023 |
AT151,CT150,ST150..DX,GL,XL SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72791-2202024 |
AT151,CT150,ST15#..GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202052 |
AT151,CT150,ST15#..GEN,SAA DEEP MAROON,MAROON,TRIM3# |
1 | ||
| 72791-2202004 |
AT151,CT150,ST150..DX,GL,XL BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202022 |
AT151,CT150,ST15#..GEN,SAA DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-2202023 |
AT151,CT150,ST15#..GEN,SAA SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06230 | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10290 | ||||
| 90154-80002 | ||||
| 90168-40036 | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93385-16016 | ||||
| 93540-54012 | ||||
| 93560-55014 | ||||
| 96160-01200 | ||||
(8508- )GL..TH ; (8508- )EUR,GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

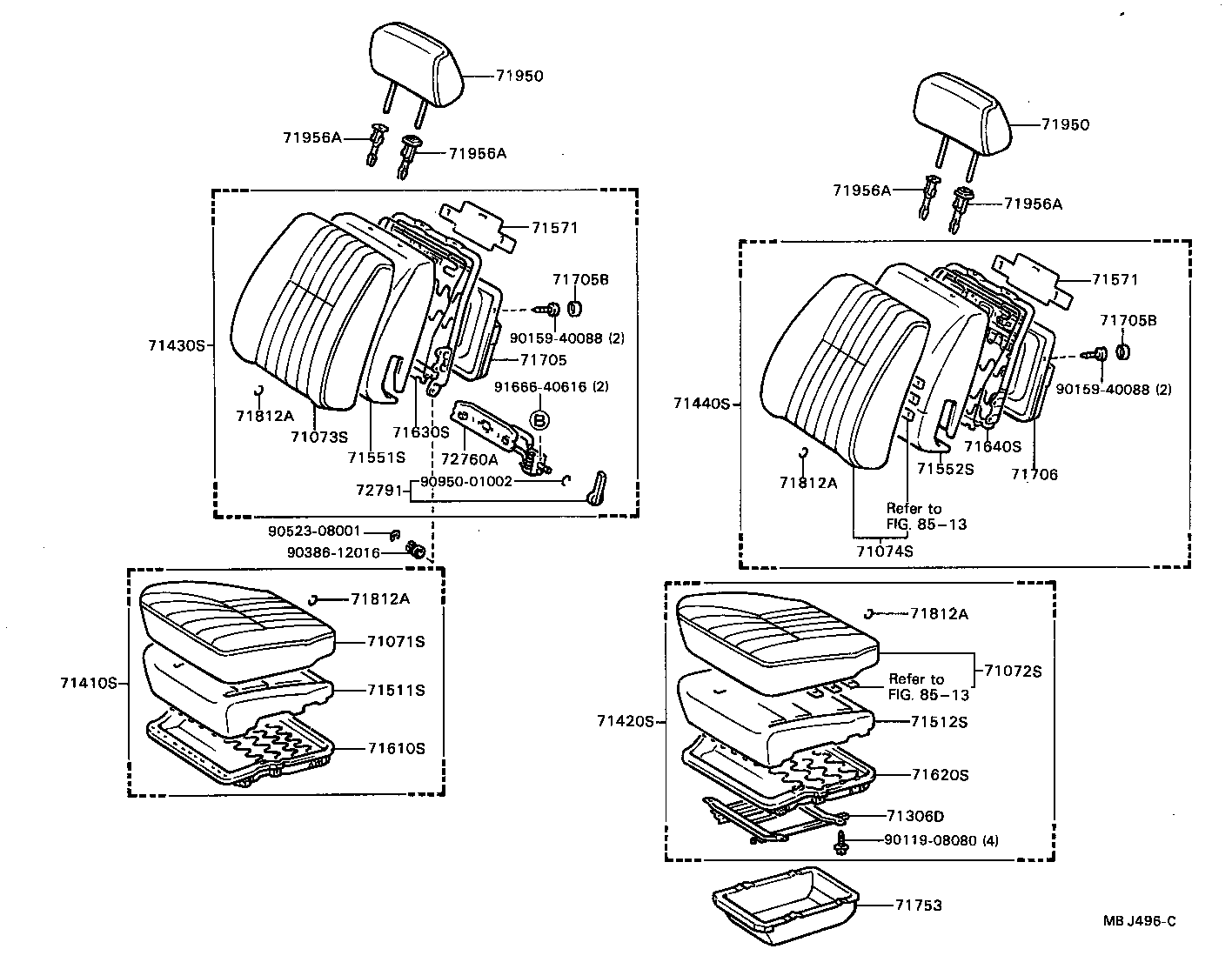

| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B29012 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B29004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B28004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B29013 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2089004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71071-2089002 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71071-2B20004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28103 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2B28104 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71071-2B30004 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089003 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2B28102 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71071-2089102 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2089103 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28204 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28202 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2B20002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B20014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B30003 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B30014 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089104 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B30002 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B20003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28203 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28213 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2089112 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2B28212 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2089114 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089113 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28214 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2064004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2064012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2064013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2047104 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71072-2047003 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-2047002 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71072-2065004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047102 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-2047103 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2065002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2065014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2065003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2047112 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-2047114 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047113 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B21004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B21013 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B21012 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B22004 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B22002 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B22003 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2089102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2089004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71073-2089104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B22002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2089002 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71073-2B22014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B22003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B61003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B61004 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B62003 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2089003 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-2B61002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2B62004 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2B62002 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2089114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2074004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2074012 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2057002 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71074-2082003 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2074013 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057003 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-2057004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71074-2057102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2082002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2057104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2057103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2082004 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082002 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2B27002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B28002 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B27004 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2B28004 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2B27003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B28003 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B29004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B29013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B40013 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B40012 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B40004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B30002 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B41003 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30003 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B41002 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B29103 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-2B13002 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71410-2B13004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71410-2B41004 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29102 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71410-2B13003 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-2B29104 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71410-2B30004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29202 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13104 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B13103 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29203 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30102 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13102 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B29204 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B30104 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B41102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B41104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B41103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29213 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30103 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B13113 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29214 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B13114 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29212 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13112 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2067004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2067013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2067012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2071002 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2071003 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2058002 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71420-2071004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71420-2058003 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-2058102 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-2058104 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058103 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2071103 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2071102 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-2071104 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058114 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058113 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2058112 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B26012 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B26013 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39013 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39012 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B26004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B34004 |
AT151,CT150,ST150..STD,XL PF,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B40002 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B40004 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39004 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07003 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2B07002 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71430-2B40003 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39104 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71430-2B07004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71430-2B07104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39102 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71430-2B07103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39202 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B39103 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2B34002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B07102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B40102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B34014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B40103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B40104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B34003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39204 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B39203 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39212 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B07113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39214 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39213 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2084004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2084013 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2084012 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2B06004 |
AT151,CT150,ST150..STD,XL PF,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71440-2B02003 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2B02002 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71440-2B02104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B49003 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49002 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B02103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49004 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B06002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,ROSE BEIGE,MAROON,TRIM3# |
1 | ||
| 71440-2B06102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B06003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B06014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B06103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49012 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B06104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49014 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B49013 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B02112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20380 |
AT151,CT150,ST150..GEN,SAA |
1 | ||
| 71511-20440 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20440 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 71511-20380 |
AT151,CT150,ST150..GEN,SAA |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20320 |
AT151,CT150,ST150 |
1 | ||
| 71551-20320 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71551-20380 |
AT151,CT150,ST150..XL..(GEN,SAA) W/LUMBER SUPPORT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20320 |
AT151,CT150,ST150 |
1 | ||
| 71551-20380 |
AT151,CT150,ST150..XL..(GEN,SAA) W/LUMBER SUPPORT |
1 | ||
| 71551-20320 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-20170 |
AT151,CT150,ST15# |
1 | ||
| 71571-24010 |
AT151,CT150,ST150 |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-20170 |
AT151,CT150,ST15# |
1 | ||
| 71571-24010 |
AT151,CT150,ST150 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20320 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71610-20330 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) W/VERTICAL ADJUSTER |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20150 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71620-20160 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20310 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71630-20330 |
AT151,CT150,ST150..RHD..(GL,XL) W/LUMBER SUPPORT |
1 | ||
| 71630-20310 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O LUMBER SUPPORT |
1 | ||
| 71630-20440 |
AT151,CT150,ST150..RHD..XL..GEN W/LUMBER SUPPORT |
1 | ||
| 71630-20480 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-20220 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O LUMBER SUPPORT |
1 | ||
| 71640-20220 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71640-20310 |
AT151,CT150,ST150..RHD..XL..GEN W/LUMBER SUPPORT |
1 | ||
| 71640-20330 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1458005 |
AT151,CT150,ST150..XL W/ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-2038014 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1458002 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038005 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-1458014 |
AT151,CT150,ST150..XL W/ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038002 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038003 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458003 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458024 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038024 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1458005 |
AT151,CT150,ST150..XL W/ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-2038014 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1458002 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038005 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-1458014 |
AT151,CT150,ST150..XL W/ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038002 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038003 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458003 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458024 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038024 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-14030 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202022 |
AT151,CT150,ST150..DX,GL,XL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-2202023 |
AT151,CT150,ST150..DX,GL,XL SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72791-2202024 |
AT151,CT150,ST15#..GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202052 |
AT151,CT150,ST15#..GEN,SAA DEEP MAROON,MAROON,TRIM3# |
1 | ||
| 72791-2202004 |
AT151,CT150,ST150..DX,GL,XL BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202022 |
AT151,CT150,ST15#..GEN,SAA DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-2202023 |
AT151,CT150,ST15#..GEN,SAA SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90159-40088 | ||||
| 90386-12016 | ||||
| 90523-08001 | ||||
| 90950-01002 | ||||
| 91666-40616 | ||||
| Linked diagrams | ||||
| 8513 | ||||
(8508- )XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B29012 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B29004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B28004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B29013 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2089004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71071-2089002 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71071-2B20004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28103 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2B28104 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71071-2B30004 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089003 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2B28102 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71071-2089102 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2089103 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28204 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B28202 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2B20002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B20014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B30003 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B30014 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089104 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B30002 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B20003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28203 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28213 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2089112 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2B28212 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2089114 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2089113 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B28214 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2064004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2064012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2064013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2047004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71072-2047003 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-2047002 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71072-2065004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047104 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047102 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-2047103 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2065002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2065014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2065003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2047112 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-2047114 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2047113 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B21004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B21013 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B21012 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B22004 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B22002 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B22003 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2089102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2089004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71073-2089104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B22002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2089002 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71073-2B22014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B22003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B61003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B61004 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B62003 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2089003 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-2B61002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2B62004 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2B62002 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2089114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2089113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2074004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2074012 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2057002 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71074-2082003 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2074013 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057003 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-2057004 |
AT151,CT150,ST150..DX,STD,XL FB,W/HEADREST,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71074-2057102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2082002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2057104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2057103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2082004 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082002 |
AT151,CT150,ST150..STD,XL PF,W/HEADREST,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2B27002 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B28002 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B27004 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2B28004 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2082003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2B27003 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B28003 |
AT151,CT150,ST150..XL..(GEN,SAA) FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2057114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B29004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B29013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B40013 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B40012 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B40004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B30002 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B41003 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30003 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B41002 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B29103 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-2B13002 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71410-2B13004 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71410-2B41004 |
AT151,CT150,ST150..RHD..XL PF,W/*VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29102 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71410-2B13003 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-2B29104 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71410-2B30004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29202 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13104 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B13103 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29203 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30102 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13102 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B29204 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B30104 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B41102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B41104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B41103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29213 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B30103 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B13113 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B29214 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B13114 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B29212 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B13112 |
AT151,CT150,ST150..RHD..XL FB,W/*VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2067004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2067013 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2067012 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2071002 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2071003 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2058002 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71420-2071004 |
AT151,CT150,ST150..STD,XL PF,W/O *VA,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058004 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71420-2058003 |
AT151,CT150,ST150..STD,XL FB,W/O *VA,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-2058102 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-2058104 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058103 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2071103 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2071102 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-2071104 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058114 |
AT151,CT150,ST150..XL FB,W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2058113 |
AT151,CT150,ST150..XL FB,W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2058112 |
AT151,CT150,ST150..XL FB,W/O *VA,MAROON,MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B26012 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B26013 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39013 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39012 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B26004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B34004 |
AT151,CT150,ST150..STD,XL PF,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B40002 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B40004 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39004 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07003 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2B07002 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71430-2B40003 |
AT151,CT150,ST150..RHD..XL PF,W/*HR,*LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39104 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71430-2B07004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71430-2B07104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39102 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71430-2B07103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39202 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B39103 |
AT151,CT150,ST150..RHD..XL FB,W/*HR,*LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2B34002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B07102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B40102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B34014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B40103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B40104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B34003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39204 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B39203 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39212 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B07113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B39214 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B07114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B39213 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2084004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2084013 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2084012 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2B06004 |
AT151,CT150,ST150..STD,XL PF,W/*HR,W/O *LUS,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02004 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71440-2B02003 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2B02002 |
AT151,CT150,ST150..DX,STD,XL FB,W/*HR,W/O *LUS,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71440-2B02104 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02102 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B49003 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49002 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B02103 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49004 |
AT151,CT150,ST150..RHD..XL..GEN FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B06002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,ROSE BEIGE,MAROON,TRIM3# |
1 | ||
| 71440-2B06102 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B06003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,W/*HR,W/O *LUS,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B06014 |
AT151,CT150,ST150..XL..(GEN,SAA) PF,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B06103 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49012 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B06104 |
AT151,CT150,ST150..RHD..XL..GEN PF,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02114 |
AT151,CT150,ST150..XL FB,W/O *LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B02113 |
AT151,CT150,ST150..XL FB,W/O *LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B49014 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B49013 |
AT151,CT150,ST150..RHD..XL FB,W/*LUS,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B02112 |
AT151,CT150,ST150..XL FB,W/O *LUS,MAROON,MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20380 |
AT151,CT150,ST150..GEN,SAA |
1 | ||
| 71511-20440 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20440 |
AT151,CT150,ST15#..GEN,SAA,TH |
1 | ||
| 71511-20380 |
AT151,CT150,ST150..GEN,SAA |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20320 |
AT151,CT150,ST150 |
1 | ||
| 71551-20320 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71551-20380 |
AT151,CT150,ST150..XL..(GEN,SAA) W/LUMBER SUPPORT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20320 |
AT151,CT150,ST150 |
1 | ||
| 71551-20380 |
AT151,CT150,ST150..XL..(GEN,SAA) W/LUMBER SUPPORT |
1 | ||
| 71551-20320 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-20170 |
AT151,CT150,ST15# |
1 | ||
| 71571-24010 |
AT151,CT150,ST150 |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-20170 |
AT151,CT150,ST15# |
1 | ||
| 71571-24010 |
AT151,CT150,ST150 |
2 | ||
| 71581C - PAD, FRONT SEAT BACK CORNER, C | ||||
| 71583-20070 |
AT151,CT150,ST150 |
4 | ||
| 71583-20070 |
AT151,CT150,ST150..XL |
4 | ||
| 71581C - PAD, FRONT SEAT BACK CORNER, C | ||||
| 71583-20070 |
AT151,CT150,ST150 |
4 | ||
| 71583-20070 |
AT151,CT150,ST150..XL |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20320 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71610-20330 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) W/VERTICAL ADJUSTER |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20150 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71620-20160 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,XL) W/O VERTICAL ADJUSTER |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20310 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71630-20330 |
AT151,CT150,ST150..RHD..(GL,XL) W/LUMBER SUPPORT |
1 | ||
| 71630-20310 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O LUMBER SUPPORT |
1 | ||
| 71630-20440 |
AT151,CT150,ST150..RHD..XL..GEN W/LUMBER SUPPORT |
1 | ||
| 71630-20480 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-20220 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O LUMBER SUPPORT |
1 | ||
| 71640-20220 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71640-20310 |
AT151,CT150,ST150..RHD..XL..GEN W/LUMBER SUPPORT |
1 | ||
| 71640-20330 |
AT151,CT150,ST150..XL W/O LUMBER SUPPORT |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1458005 |
AT151,CT150,ST150..XL W/ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-2038014 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1458002 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038005 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-1458014 |
AT151,CT150,ST150..XL W/ADJUSTABLE,LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038002 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2038003 |
AT151,CT150,ST150..STD,XL W/O ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458003 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1458024 |
AT151,CT150,ST150..XL..(GEN,SAA) W/ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2038024 |
AT151,CT150,ST150..XL W/O ADJUSTABLE,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409003 |
AT151,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402014 |
AT151,CT150,ST150 W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402003 |
AT151,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409002 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409014 |
AT151,CT150,ST150 W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409024 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402012 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409034 |
AT151,CT150,ST15# W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409023 |
AT151,CT150,ST15# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT151,CT150,ST15# W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409012 |
AT151,CT150,ST15# W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409005 |
AT151,CT150,ST150 W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402005 |
AT151,CT150,ST150 W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1402023 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT151,CT150,ST15# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT151,CT150,ST15# W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90523-08001 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1406004 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1406003 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010004 |
AT151,CT150,ST150..RHD..(GL,XL) W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2010002 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010003 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1406012 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010014 |
AT151,CT150,ST15#..RHD W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1406034 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..XL W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407003 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O *VA,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1407004 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1407034 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,XL) W/O *VA,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-1407012 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O *VA,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2001002 |
AT151,CT150,ST15#..GEN,SAA,TH DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71861-2001003 |
AT151,CT150,ST15#..GEN,SAA,TH SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71861-2001004 |
AT151,CT150,ST150..GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 71861-2001014 |
AT151,CT150,ST15#..GEN,SAA,TH BLUE,BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2001003 |
AT151,CT150,ST15#..GEN,SAA,TH SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71862-2001002 |
AT151,CT150,ST15#..GEN,SAA,TH DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862-2001004 |
AT151,CT150,ST150..GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 71862-2001014 |
AT151,CT150,ST15#..GEN,SAA,TH BLUE,BLUE,TRIM8# |
1 | ||
| 72043 - LEVER SUB-ASSY, SEAT LIFTER | ||||
| 72043-2001002 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043-2001004 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 72043-2001003 |
AT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-20230 |
ST150..RHD..XL;AT151..LHD..GL..GEN;AT151,CT150..STD,XL;ST150..LHD..(GEN,SAA) W/O *VA |
1 | ||
| 72130-20190 |
AT151,CT150,ST15#..RHD..(GL,XL)..(GEN,TH) W/*VA |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-20130 |
ST150..RHD;AT151..LB..GEN;ST150..LHD..XL;CT150,ST151..GEN;AT151..SED..RHD..(GEN,TH);AT151..SED..LHD..(STD,XL) W/O *VA |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-3201001 |
AT151,CT150,ST15# BLACK,BLACK |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20180 |
AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA) |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-1201004 |
AT151,CT150,ST150..DX,GL,XL BLUE,BLUE,TRIM8# |
1 | ||
| 72459-1201002 |
AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72459-1201024 |
AT151,CT150,ST15#..EUR,GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 72459-1201003 |
AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-20170 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..XL W/O *VA |
1 | ||
| 72010-20110 |
AT151,CT150,ST15#..RHD..(GL,XL) W/*VA |
1 | ||
| 72010-20100 |
CT150..DX,XL;CT150..LHD..GL;AT151,ST150..LHD;AT151,ST150..RHD..(STD,XL) W/O *VA |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AT151,CT150,ST15# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AT151,CT150,ST15# |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-20130 |
AT151,CT150,ST150..RHD;AT151,CT150,ST150..LHD..(DX,STD,XL) W/O *VA |
1 | ||
| 72020-20170 |
AT151,CT150,ST15#..RHD;AT151,CT150,ST150..LHD..(DX,XL) W/O *VA |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT151,CT150,ST150 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401043 |
AT151,CT150,ST15# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401014 |
AT151,CT150,ST150 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401013 |
AT151,CT150,ST150 RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT151,CT150,ST15# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401043 |
AT151,CT150,ST15# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401044 |
AT151,CT150,ST15# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401022 |
AT151,CT150,ST15# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401013 |
AT151,CT150,ST150 LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401044 |
AT151,CT150,ST15# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT151,CT150,ST150 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401043 |
AT151,CT150,ST15# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401014 |
AT151,CT150,ST150 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401013 |
AT151,CT150,ST150 RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT151,CT150,ST15# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401043 |
AT151,CT150,ST15# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401044 |
AT151,CT150,ST15# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401022 |
AT151,CT150,ST15# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401013 |
AT151,CT150,ST150 LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401044 |
AT151,CT150,ST15# RH,BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-06230 | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10290 | ||||
| 90154-80002 | ||||
| 90168-40043 | ||||
| 93560-55014 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
