AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

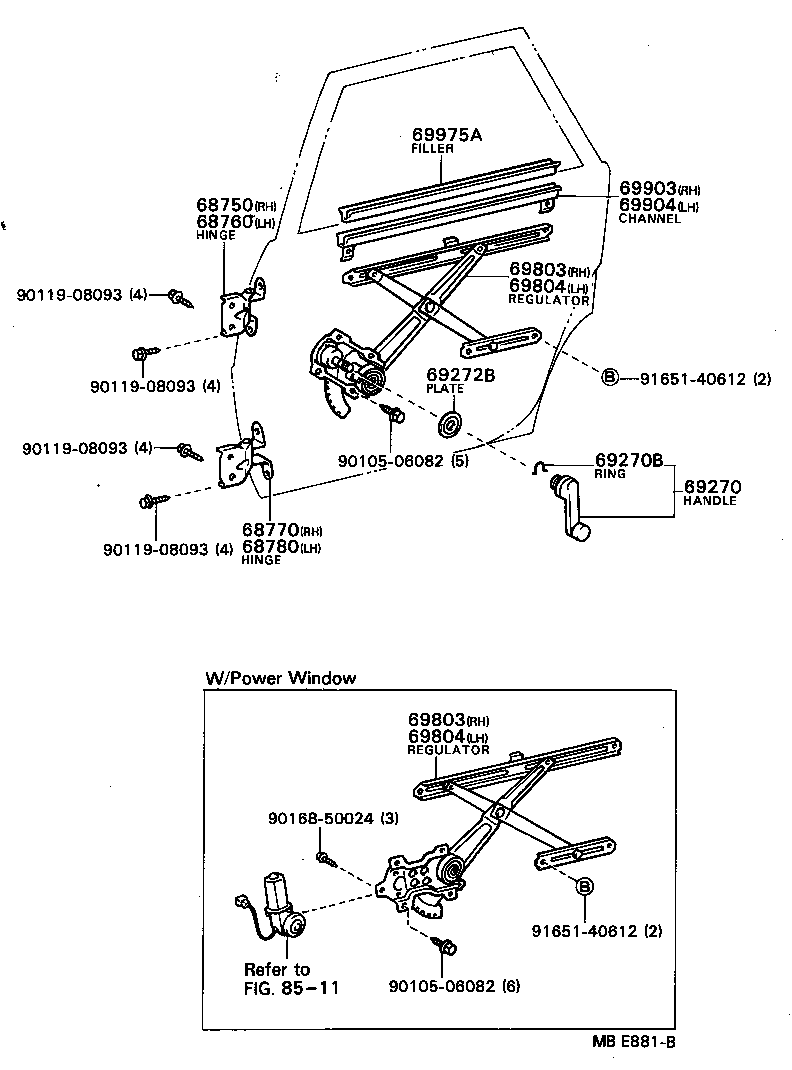

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69270 69270B 69272B 69803 69803 69804 69804 69903 69904 69975A 8511 9010506082 9010506082 9011908093 9011908093 9011908093 9011908093 9016850024 9165140612 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20050

AT151,CT150,ST15#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20040

AT151,CT150,ST15#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20040

AT151,CT150,ST15#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20040

AT151,CT150,ST15#

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1402004

AT151..SDZ;AT151,CT150,ST150..GEN,SAA

BLUE,BLUE,TRIM8#

 2
69260-1402012

AT151..SDZ;AT151,CT150,ST15#..GEN,SAA

DEEP MAROON,RED/MAROON,TRIM3#

 2
69260-1402033

AT151..SDZ;AT151,CT150,ST15#..GEN,SAA

SHADOW GRAY,GRAY,TRIM1#

 2
69260-1402044

AT151..SDZ;AT151,CT150,ST15#..GEN,SAA,TH

BLUE,BLUE,TRIM8#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

AT151,CT150,ST15#

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-22010

AT151,CT150,ST15#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-20090

AT151,CT150,ST15#

W/O *PW

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-20090

AT151,CT150,ST15#

W/O *PW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-20090

AT151,CT150,ST15#

W/O *PW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-20090

AT151,CT150,ST15#

W/O *PW

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-20050

AT151,CT150,ST15#

W/GLASS T=3.5

 1
69905-20080

AT151..LHD..GL..GEN;ST150..SED..RHD..GL..GEN;ST150..LB..RHD..5F..GL..GEN;AT151..SED..RHD..MTM..XL..GEN

W/GLASS T=4.0

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-20080

AT151..LHD..GL..GEN;ST150..SED..RHD..GL..GEN;ST150..LB..RHD..5F..GL..GEN;AT151..SED..RHD..MTM..XL..GEN

W/GLASS T=4.0

 1
69905-20050

AT151,CT150,ST15#

W/GLASS T=3.5

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-20020

AT151,CT150,ST15#

 2
Common parts
90105-06082
90119-08093
90168-50024
91651-40612
Linked diagrams
8511
