AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

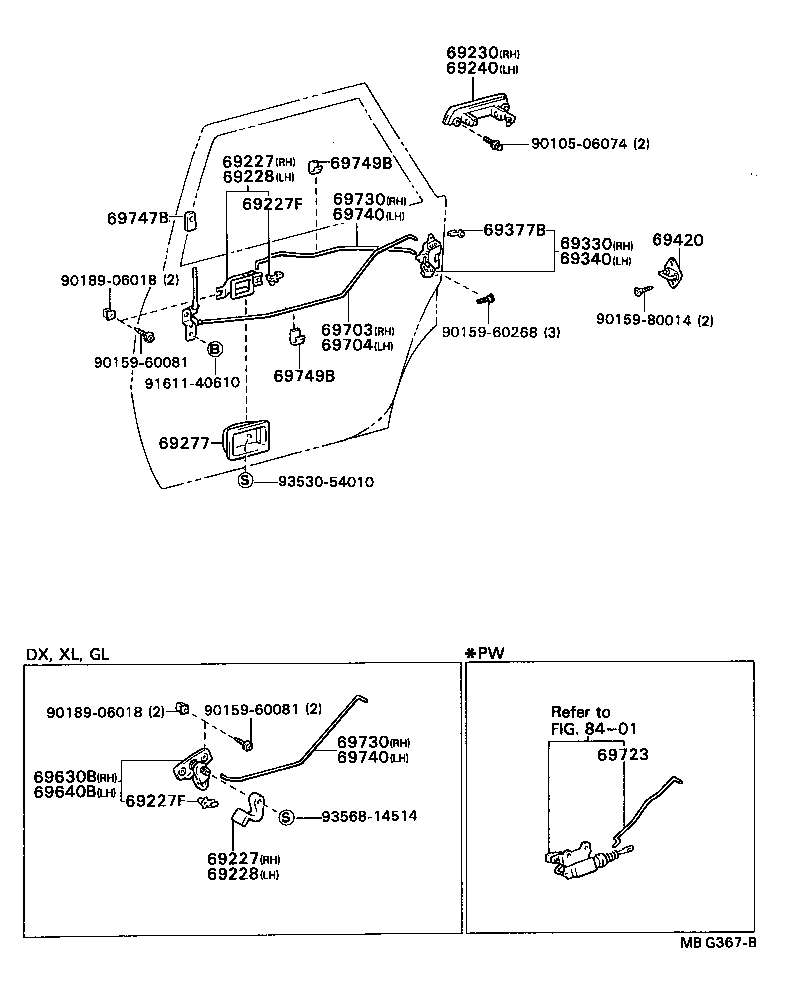

Click highlighted areas on diagram

diagram 69227 69227 69227F 69227F 69228 69228 69230 69240 69277 69330 69340 69377B 69420 69630B 69640B 69703 69704 69723 69730 69730 69740 69740 69747B 69749B 69749B 8401 9010506074 9015960081 9015960081 9015960268 9015980014 9018906018 9018906018 9161140610 9353054010 9356814514
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69271-2006003

AT151,CT150,ST150..DX,GL,XL

W/O *PW,SHADOW GRAY,GRAY,TRIM1#

 1
69271-2006002

AT151,CT150,ST150..DX,GL,XL

W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

 1
69271-2006004

AT151,CT150,ST150..DX,GL,XL

W/O *PW,BLUE,BLUE,TRIM8#

 1
69271-2010002

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,MAROON,MAROON,TRIM3#

 1
69271-2010004

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,BLUE,BLUE,TRIM8#

 1
69271-2010003

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,GRAY,GRAY,TRIM1#

 1
69227 - HANDLE, REAR DOOR INSIDE, RH
69271-2006003

AT151,CT150,ST150..DX,GL,XL

W/O *PW,SHADOW GRAY,GRAY,TRIM1#

 1
69271-2006002

AT151,CT150,ST150..DX,GL,XL

W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

 1
69271-2006004

AT151,CT150,ST150..DX,GL,XL

W/O *PW,BLUE,BLUE,TRIM8#

 1
69271-2010002

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,MAROON,MAROON,TRIM3#

 1
69271-2010004

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,BLUE,BLUE,TRIM8#

 1
69271-2010003

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,GRAY,GRAY,TRIM1#

 1
69227F - SNAP(FOR REAR DOOR INSIDE HANDLE)
69759-20060

AT151,CT150,ST15#

RH

 1
69759-20070

AT151,CT150,ST15#

LH

 1
69227F - SNAP(FOR REAR DOOR INSIDE HANDLE)
69759-20060

AT151,CT150,ST15#

RH

 1
69759-20070

AT151,CT150,ST15#

LH

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69272-2003002

AT151,CT150,ST150..DX,GL,XL

W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

 1
69272-2003004

AT151,CT150,ST150..DX,GL,XL

W/O *PW,BLUE,BLUE,TRIM8#

 1
69272-2003003

AT151,CT150,ST150..DX,GL,XL

W/O *PW,SHADOW GRAY,GRAY,TRIM1#

 1
69272-2007004

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,BLUE,BLUE,TRIM8#

 1
69272-2007002

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,MAROON,MAROON,TRIM3#

 1
69272-2007003

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,GRAY,GRAY,TRIM1#

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69272-2003002

AT151,CT150,ST150..DX,GL,XL

W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

 1
69272-2003004

AT151,CT150,ST150..DX,GL,XL

W/O *PW,BLUE,BLUE,TRIM8#

 1
69272-2003003

AT151,CT150,ST150..DX,GL,XL

W/O *PW,SHADOW GRAY,GRAY,TRIM1#

 1
69272-2007004

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,BLUE,BLUE,TRIM8#

 1
69272-2007002

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,MAROON,MAROON,TRIM3#

 1
69272-2007003

AT151,CT150,ST15#..EUR,GEN,SAA

W/O *PW,GRAY,GRAY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-20090

AT151,CT150,ST15#..SED..(GEN,SAA)

PLATING

 1
69230-20080

AT151,CT150,ST15#

BLACK

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-20090

AT151,CT150,ST15#..SED..(GEN,SAA)

PLATING

 1
69240-20080

AT151,CT150,ST15#

BLACK

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-20180

AT151,CT150,ST15#..EUR,GEN,TH

W/O *PW

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-20180

AT151,CT150,ST15#..EUR,GEN,TH

W/O *PW

 1
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-20050

AT151,CT150,ST15#

RH

 3
69759-20040

AT151,CT150,ST15#

LH

 3
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

AT151,CT150,ST15#

 2
69630B - CONTROL ASSY, REAR DOOR LOCK REMOTE, RH
69610-20070

AT151,CT150,ST15#..DX,GL,XL

 1
69640B - CONTROL ASSY, REAR DOOR LOCK REMOTE, LH
69620-20040

AT151,CT150,ST15#..DX,GL,XL

 1
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-20030

AT151,CT150,ST15#

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-20030

AT151,CT150,ST15#

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-20040

AT151,CT150,ST15#..DX,GL,XL

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-20040

AT151,CT150,ST15#..DX,GL,XL

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-20040

AT151,CT150,ST15#..DX,GL,XL

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-20040

AT151,CT150,ST15#..DX,GL,XL

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-3201023

AT151,CT150,ST15#

SHADOW GRAY,GRAY,TRIM1#

 2
69741-3201012

AT151,CT150,ST15#

DEEP MAROON,RED/MAROON,TRIM3#

 2
69741-3201004

AT151,CT150,ST150

BLUE,BLUE,TRIM8#

 2
69741-3201014

AT151,CT150,ST15#

BLUE,BLUE,TRIM8#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-20010

AT151,CT150,ST15#

 6
69749B - CLAMP, REAR DOOR LOCK LINK
69749-20010

AT151,CT150,ST15#

 6
Common parts
90105-06074
90159-60081
90159-60268
90159-80014
90189-06018
91611-40610
93530-54010
93568-14514
Linked diagrams
8401
