AT151R-TEKDS (1983)
Toyota Corona/Carina 2
(8310- )

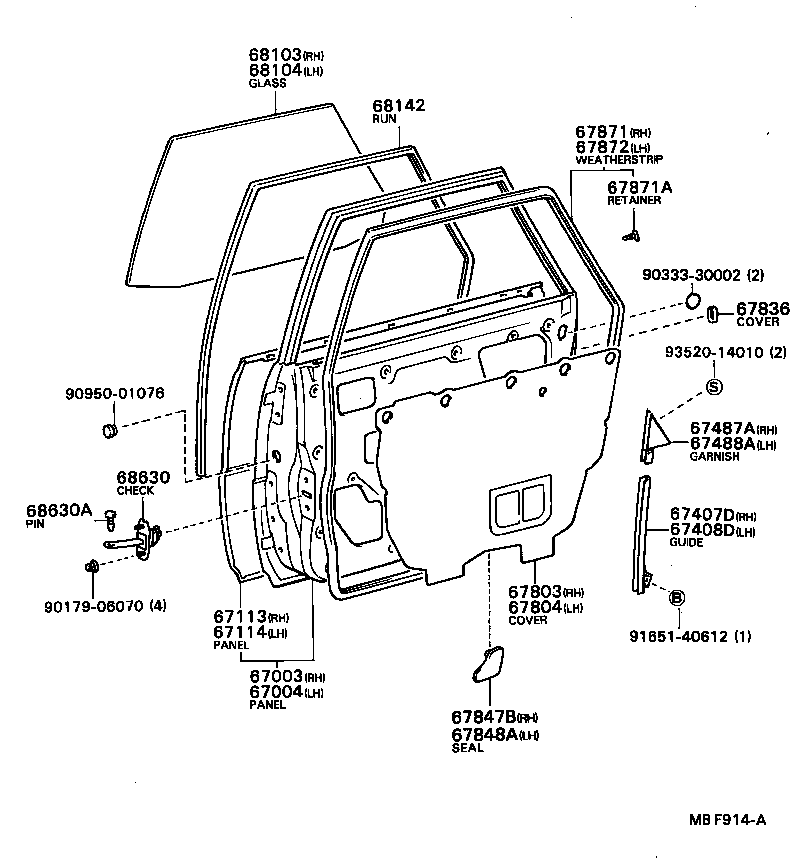

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20340 |
AT151,CT150,ST150..(DX,STD,XL)..(EUR,GEN) |
1 | ||
| 67003-20340 |
AT151,CT150,ST15#..EUR,GEN,TH |
1 | ||
| 67003-20330 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)..(EUR,GEN) W/*WPM |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20330 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)..(EUR,GEN) W/*WPM |
1 | ||
| 67004-20340 |
AT151,CT150,ST150..EUR,GEN,TH |
1 | ||
| 67004-20340 |
AT151,CT150,ST150..(DX,STD,XL)..(EUR,GEN) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-20160 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL) W/*WPM |
1 | ||
| 67113-20170 |
AT151,CT150,ST150..DX,STD,XL |
1 | ||
| 67113-20170 |
AT151,CT150,ST15# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-20180 |
AT151,CT150,ST15# |
1 | ||
| 67114-20170 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL) W/*WPM |
1 | ||
| 67114-20180 |
AT151,CT150,ST150..DX,STD,XL |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-20100 |
AT151,CT150,ST15# |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-20090 |
AT151,CT150,ST15# |
1 | ||
| 67487A - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 67487-20010 |
AT151,CT150,ST15# |
1 | ||
| 67488A - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 67488-20020 |
AT151,CT150,ST15# |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-20130 |
AT151,CT150,ST15#..EUR,GEN,TH |
1 | ||
| 67841-20130 |
AT151,CT150,ST150 |
1 | ||
| 67841-20160 |
AT151,CT150,ST15#..GEN W/INDOOR DUST PROOFING |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-20040 |
AT151,CT150,ST150 |
1 | ||
| 67842-20040 |
AT151,CT150,ST15#..EUR,GEN,TH |
1 | ||
| 67841-20160 |
AT151,CT150,ST15#..GEN W/INDOOR DUST PROOFING |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
AT151,CT150,ST150..GEN,SAA |
2 | ||
| 67836-20060 |
AT151,CT150,ST15#..GEN,SAA |
2 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-20020 |
AT151,CT150,ST15#..GEN,SAA |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-20020 |
AT151,CT150,ST15#..GEN,SAA |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20150 |
AT151,CT150,ST15# |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AT151,CT150,ST15# |
38 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20150 |
AT151,CT150,ST15# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-20260 |
AT151,CT150,ST15#..EUR,GEN,SAA *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-20180 |
AT151,CT150,ST15#..EUR,GEN,SAA *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-20060 |
AT151,CT150,ST15# |
2 | ||
| 68142-20061 |
AT151,CT150,ST15# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20030 |
AT151,CT150,ST15# |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-22010 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
2 | ||
| 68617-12010 |
AT151,CT150,ST150 |
2 | ||
| 68617-90A00 |
AT151,CT150,ST15# |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90950-01076 | ||||
| 91651-40612 | ||||
| 93520-14010 | ||||

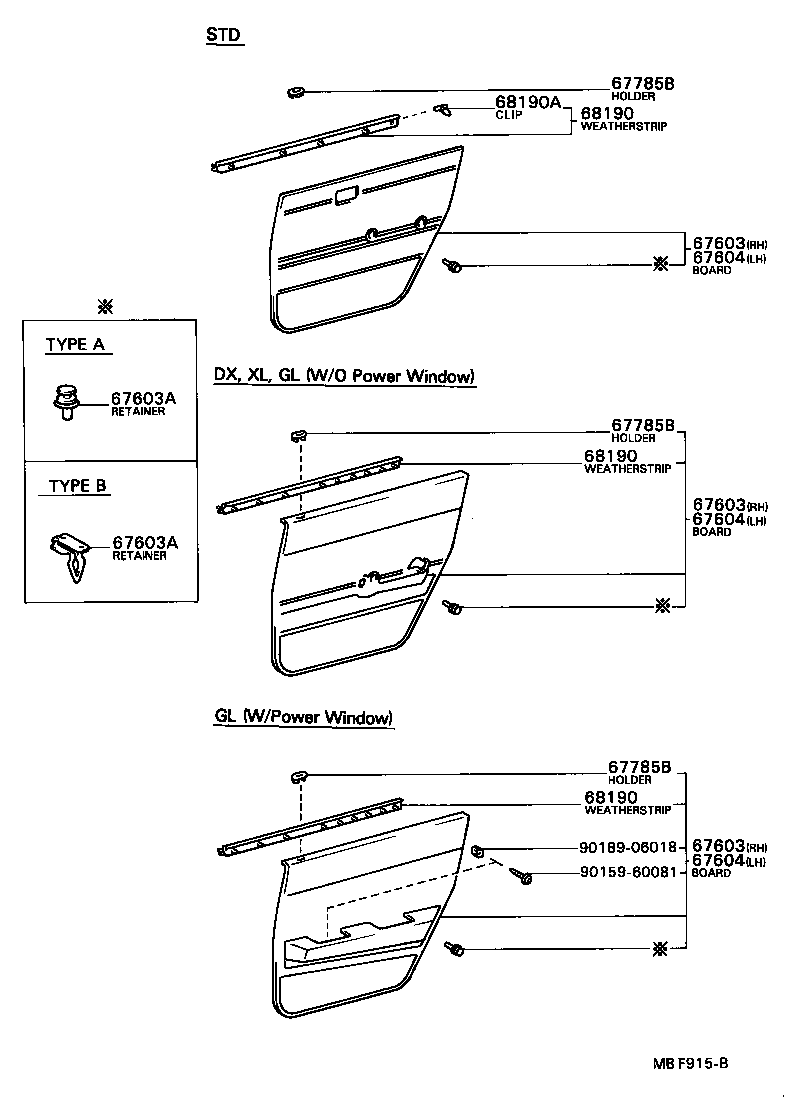

(8310-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-32010 |
AT151,CT150,ST15# |
26 | ||
| 67771-22010 |
AT151,CT150,ST15# TYPE A |
26 | ||
| 67771-14010 |
AT151,CT150,ST150 TYPE B |
2 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-32010 |
AT151,CT150,ST15# |
26 | ||
| 67771-22010 |
AT151,CT150,ST15# TYPE A |
26 | ||
| 67771-14010 |
AT151,CT150,ST150 TYPE B |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B30002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B30002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B30002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006003 |
AT151,CT150,ST15# GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006024 |
AT151,CT150,ST15# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 69751-2006002 |
AT151,CT150,ST15# MAROON,MAROON,TRIM3# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006003 |
AT151,CT150,ST15# GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006024 |
AT151,CT150,ST15# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 69751-2006002 |
AT151,CT150,ST15# MAROON,MAROON,TRIM3# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006003 |
AT151,CT150,ST15# GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006024 |
AT151,CT150,ST15# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 69751-2006002 |
AT151,CT150,ST15# MAROON,MAROON,TRIM3# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-20140 |
AT151,CT150,ST150..DX,XL |
2 | ||
| 68190-20140 |
AT151,CT150,ST15# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-20140 |
AT151,CT150,ST150..DX,XL |
2 | ||
| 68190-20140 |
AT151,CT150,ST15# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-20140 |
AT151,CT150,ST150..DX,XL |
2 | ||
| 68190-20140 |
AT151,CT150,ST15# |
2 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90189-06018 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2B31002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67630-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-32010 |
AT151,CT150,ST15# |
26 | ||
| 67771-22010 |
AT151,CT150,ST15# TYPE A |
26 | ||
| 67771-14010 |
AT151,CT150,ST150 TYPE B |
2 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-32010 |
AT151,CT150,ST15# |
26 | ||
| 67771-22010 |
AT151,CT150,ST15# TYPE A |
26 | ||
| 67771-14010 |
AT151,CT150,ST150 TYPE B |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B30002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B30002 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089003 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2089004 |
AT151,CT150,ST150..XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30003 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2089002 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2B30004 |
AT151,CT150,ST150..(DX,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2B30002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-2083003 |
AT151,CT150,ST150..XL..GEN SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2084102 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083103 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2084104 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083102 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083002 |
AT151,CT150,ST150..XL..GEN DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-2083104 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2083004 |
AT151,CT150,ST150..XL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2084103 |
AT151,CT150,ST150..DX,XL W/DUST PROOFING,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2083112 |
AT151,CT150,ST150..DX,XL MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2083113 |
AT151,CT150,ST150..DX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 67640-2083114 |
AT151,CT150,ST150..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006003 |
AT151,CT150,ST15# GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006024 |
AT151,CT150,ST15# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 69751-2006002 |
AT151,CT150,ST15# MAROON,MAROON,TRIM3# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006003 |
AT151,CT150,ST15# GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006024 |
AT151,CT150,ST15# BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 69751-2006002 |
AT151,CT150,ST15# MAROON,MAROON,TRIM3# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-20140 |
AT151,CT150,ST150..DX,XL |
2 | ||
| 68190-20140 |
AT151,CT150,ST15# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-20140 |
AT151,CT150,ST150..DX,XL |
2 | ||
| 68190-20140 |
AT151,CT150,ST15# |
2 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90189-06018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
