AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

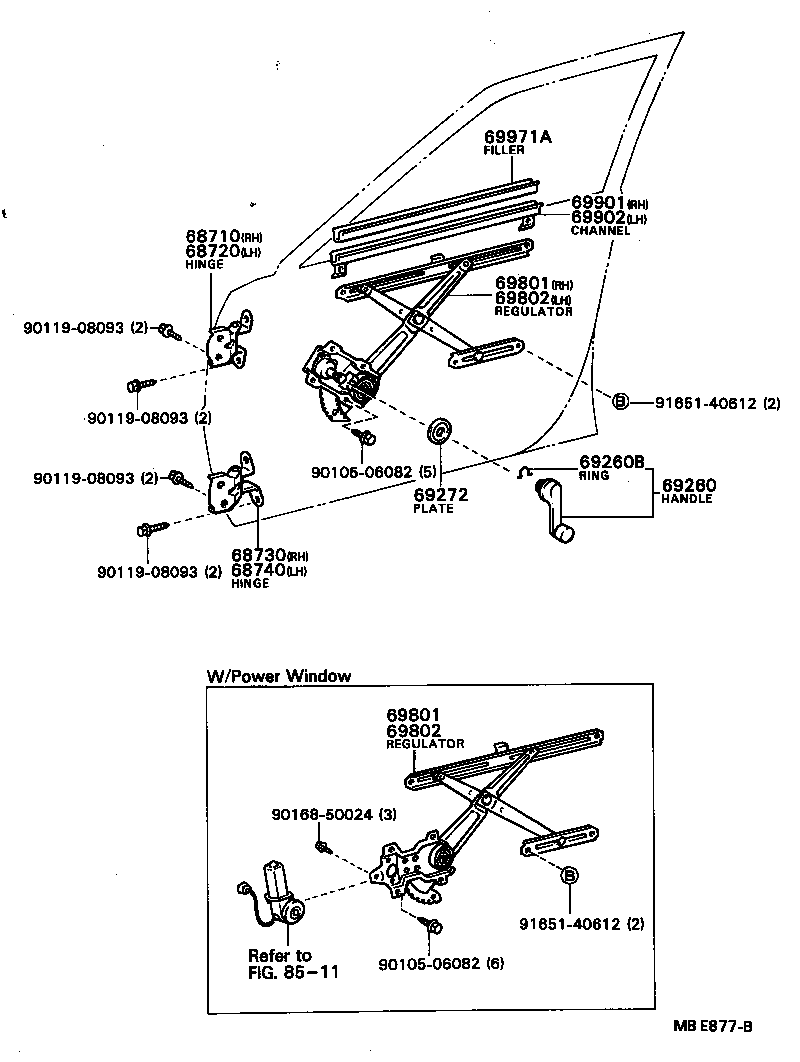

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9010506082 9010506082 9011908093 9011908093 9011908093 9011908093 9016850024 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14030

AT151,CT150,ST15#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14030

AT151,CT150,ST15#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14030

AT151,CT150,ST15#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14030

AT151,CT150,ST15#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402004

AT151..SDZ;AT151,CT150,ST150..GEN,SAA

BLUE,BLUE,TRIM8#

 2
69260-1402012

AT151..SDZ;AT151,CT150,ST15#..GEN,SAA,TH

DEEP MAROON,RED/MAROON,TRIM3#

 2
69260-1402044

AT151..SDZ;AT151,CT150,ST15#..GEN,SAA,TH

BLUE,BLUE,TRIM8#

 2
69260-1402033

AT151..SDZ;AT151,CT150,ST15#..GEN,SAA,TH

SHADOW GRAY,GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AT151,CT150,ST15#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-22010

AT151,CT150,ST15#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-20100

AT151,CT150,ST15#

W/O *PW

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-20100

AT151,CT150,ST15#

W/O *PW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-20100

AT151,CT150,ST15#

W/O *PW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-20100

AT151,CT150,ST15#

W/O *PW

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-20110

AT151,CT150,ST15#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-20110

AT151,CT150,ST15#

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-22010

AT151,CT150,ST15#

 2
Common parts
90105-06082
90119-08093
90168-50024
91651-40612
Linked diagrams
8511
