AT151R-TEKDS (1983)
Toyota Corona/Carina 2
(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69271-2006002 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69271-2006003 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 69271-2010003 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 69271-2010002 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,MAROON,MAROON,TRIM3# |
1 | ||
| 69271-2006004 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 69271-2010004 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69271-2006002 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69271-2006003 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 69271-2010003 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 69271-2010002 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,MAROON,MAROON,TRIM3# |
1 | ||
| 69271-2006004 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 69271-2010004 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69272-2003002 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69272-2003003 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 69272-2003004 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 69272-2007002 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,MAROON,MAROON,TRIM3# |
1 | ||
| 69272-2007003 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 69272-2007004 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69272-2003002 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69272-2003003 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 69272-2003004 |
AT151,CT150,ST150..DX,GL,XL W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 69272-2007002 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,MAROON,MAROON,TRIM3# |
1 | ||
| 69272-2007003 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 69272-2007004 |
AT151,CT150,ST15#..EUR,GEN,SAA W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20090 |
AT151,CT150,ST15# BLACK |
1 | ||
| 69210-20100 |
AT151,CT150,ST15#..SED..(GEN,SAA) PLATING |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-20100 |
AT151,CT150,ST15#..SED..(GEN,SAA) PLATING |
1 | ||
| 69220-20090 |
AT151,CT150,ST15# BLACK |
1 | ||
| 69273 - SNAP, DOOR INSIDE HANDLE ROD | ||||
| 69759-20070 |
AT151,CT150,ST15# LH |
1 | ||
| 69759-20060 |
AT151,CT150,ST15# RH |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-16050 |
AT151,CT150,ST15# LH,BLACK |
1 | ||
| 69293-16060 |
AT151,CT150,ST15#..SED..(GEN,SAA) LH,PLATING |
1 | ||
| 69293-16050 |
AT151,CT150,ST15#..SED..(GEN,SAA) RH,PLATING |
1 | ||
| 69293-16060 |
AT151,CT150,ST15# RH,BLACK |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-20250 |
AT151,CT150,ST15#..EUR,GEN,TH W/O *PW |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-20250 |
AT151,CT150,ST15#..EUR,GEN,TH W/O *PW |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-20250 |
AT151,CT150,ST15#..EUR,GEN,TH W/O *PW |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-20250 |
AT151,CT150,ST15#..EUR,GEN,TH W/O *PW |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-20100 |
AT151,CT150,ST15# RH,RED |
1 | ||
| 69759-20110 |
AT151,CT150,ST15# LH,BLACK |
1 | ||
| 69759-20050 |
AT151,CT150,ST15# BROWN |
2 | ||
| 69759-20040 |
AT151,CT150,ST15# YELLOW |
2 | ||
| 69759-24010 |
AT151,CT150,ST15# RH,NATURAL |
1 | ||
| 69759-24020 |
AT151,CT150,ST15# LH,NATURAL |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-20100 |
AT151,CT150,ST15# RH,RED |
1 | ||
| 69759-20110 |
AT151,CT150,ST15# LH,BLACK |
1 | ||
| 69759-20050 |
AT151,CT150,ST15# BROWN |
2 | ||
| 69759-20040 |
AT151,CT150,ST15# YELLOW |
2 | ||
| 69759-24010 |
AT151,CT150,ST15# RH,NATURAL |
1 | ||
| 69759-24020 |
AT151,CT150,ST15# LH,NATURAL |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AT151,CT150,ST15# |
2 | ||
| 69610A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, RH | ||||
| 69610-20070 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH | ||||
| 69620-20040 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-20050 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-20050 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-20050 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-20050 |
AT151,CT150,ST15#..DX,GL,XL |
1 | ||
| 69736A - GUIDE, FRONT DOOR LOCK LINK | ||||
| 69736-12030 |
AT151,CT150,ST15# |
2 | ||
| 69736-22021 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69741-3201004 |
AT151,CT150,ST150 BLUE,BLUE,TRIM8# |
2 | ||
| 69741-3201012 |
AT151,CT150,ST15# DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 69741-3201014 |
AT151,CT150,ST15# BLUE,BLUE,TRIM8# |
1 | ||
| 69741-3201023 |
AT151,CT150,ST15# SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-20010 |
AT151,CT150,ST15# |
2 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-80014 | ||||
| 90189-06018 | ||||
| 93530-54010 | ||||
| 93568-14514 | ||||

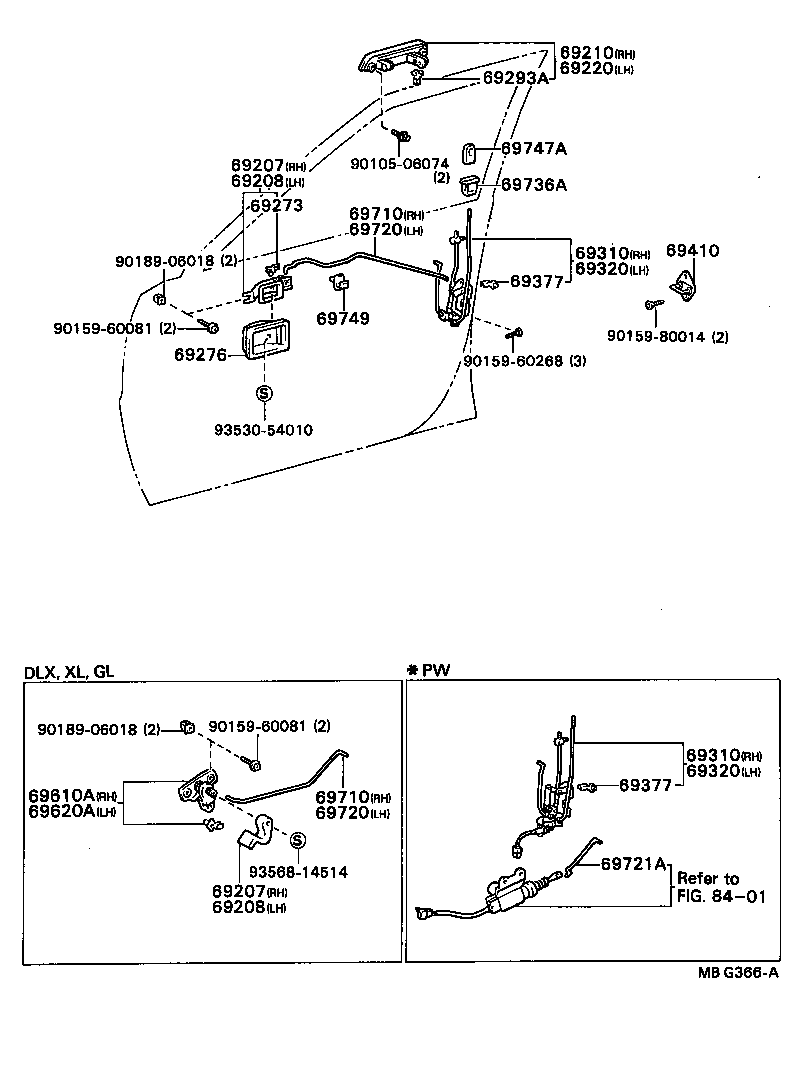

| Linked diagrams | ||||
| 8401 | ||||
