AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8508)

Click highlighted areas on diagram

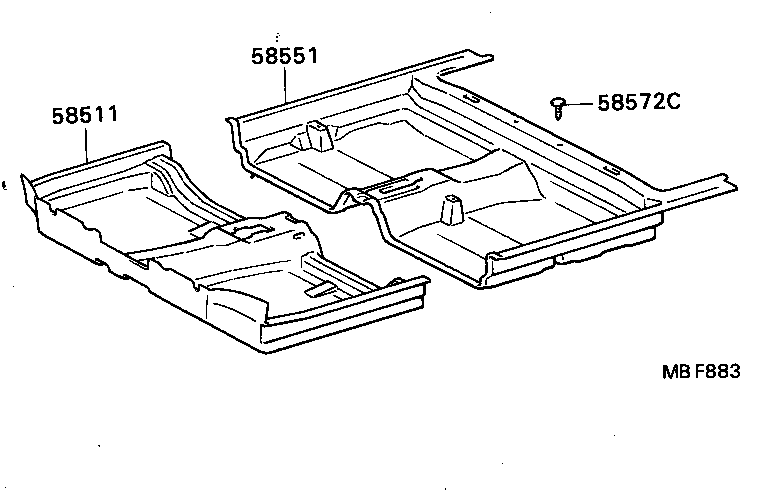

diagram 58511 58551 58572C
Part # Description Qty Price

(8310- )

Click highlighted areas on diagram

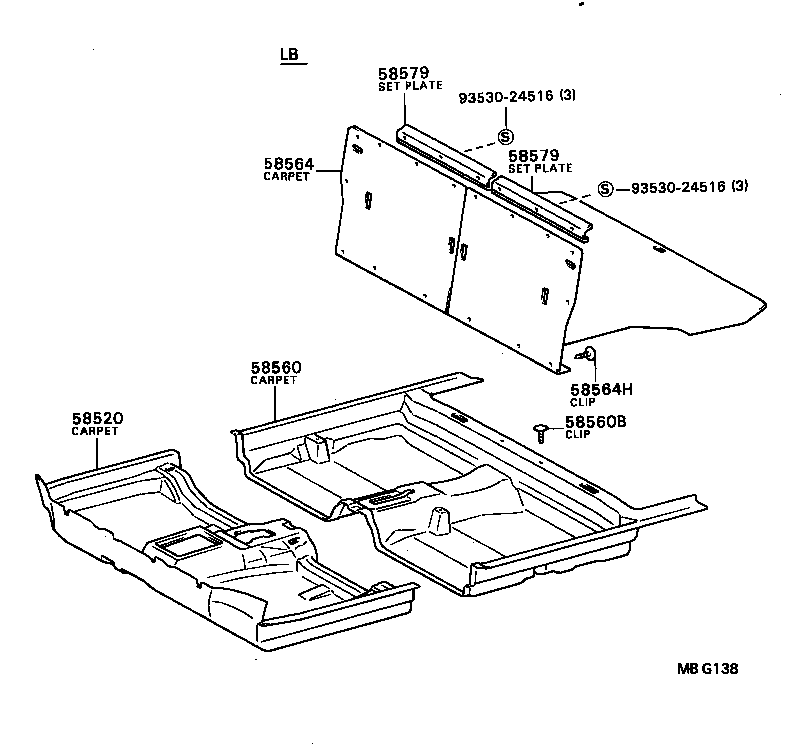

diagram 58520 58560 58560B 58564 58564H 58579 58579 9353024516 9353024516
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-2077003

AT151,ST150..RHD

GRAY,GRAY,TRIM1#

 1
58510-2077012

AT151,ST150..RHD..XL..GEN

CKD,MAROON,MAROON,TRIM3#

 1
58510-2077002

AT151,ST150..RHD

MAROON,RED/MAROON,TRIM3#

 1
58510-2078012

AT151,CT150,ST150..RHD..XL..GEN

MAROON,MAROON,TRIM3#

 1
58510-2077004

AT151,ST150..RHD

BLUE,BLUE,TRIM8#

 1
58510-2077014

AT151,ST150..RHD..XL..GEN

CKD,BLUE,BLUE,TRIM8#

 1
58510-2077013

AT151,ST150..RHD..XL..GEN

CKD,GRAY,GRAY,TRIM1#

 1
58510-2078014

AT151,CT150,ST150..RHD..XL..GEN

BLUE,BLUE,TRIM8#

 1
58510-2078013

AT151,CT150,ST150..RHD..XL..GEN

GRAY,GRAY,TRIM1#

 1
58510-2B10002

AT151,ST150..RHD..XL..GEN

CKD,W/CONSOLE,MAROON,MAROON,TRIM3#

 1
58510-2B11003

AT151,CT150,ST150..RHD..XL..GEN

W/CONSOLE BOX,GRAY,GRAY,TRIM1#

 1
58510-2B11002

AT151,CT150,ST150..RHD..XL..GEN

W/CONSOLE BOX,MAROON,MAROON,TRIM3#

 1
58510-2B11004

AT151,CT150,ST150..RHD..XL..GEN

W/CONSOLE BOX,BLUE,BLUE,TRIM8#

 1
58510-2B10004

AT151,ST150..RHD..XL..GEN

CKD,W/CONSOLE,BLUE,BLUE,TRIM8#

 1
58510-2B10003

AT151,ST150..RHD..XL..GEN

CKD,W/CONSOLE,GRAY,GRAY,TRIM1#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-2043002

AT151,ST150

MAROON,RED/MAROON,TRIM3#

 1
58540-2043004

AT151,ST150

BLUE,BLUE,TRIM8#

 1
58540-2043014

ST15#..RHD..GEN;AT151..SED..RHD..GEN;AT151..LB..5F..GL..GEN

CKD,BLUE,BLUE,TRIM8#

 1
58540-2043003

AT151,ST150

GRAY,GRAY,TRIM1#

 1
58540-2044014

AT151,CT150,ST150..EUR,GEN,SAA

BLUE,BLUE,TRIM8#

 1
58540-2043023

ST15#..RHD..GEN;AT151..SED..RHD..GEN;AT151..LB..5F..GL..GEN

CKD,GRAY,GRAY,TRIM1#

 1
58540-2043022

ST15#..RHD..GEN;AT151..SED..RHD..GEN;AT151..LB..5F..GL..GEN

CKD,MAROON,MAROON,TRIM3#

 1
58540-2044012

AT151,CT150,ST150..EUR,GEN,SAA

MAROON,MAROON,TRIM3#

 1
58540-2044013

AT151,CT150,ST150..EUR,GEN,SAA

GRAY,GRAY,TRIM1#

 1
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-0601604

AT151,CT150,ST150

BLUE,BLUE,TRIM8#

 2
90467-0601620

AT151,CT150,ST15#

BLUE,DEEP BLUE,TRIM8#

 1
90467-0601633

AT151,CT150,ST15#

SHADOW GRAY,GRAY,TRIM1#

 2
90467-0601622

AT151,CT150,ST15#

DEEP MAROON,RED/MAROON,TRIM3#

 2
Common parts
93530-24516
