AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )RHD

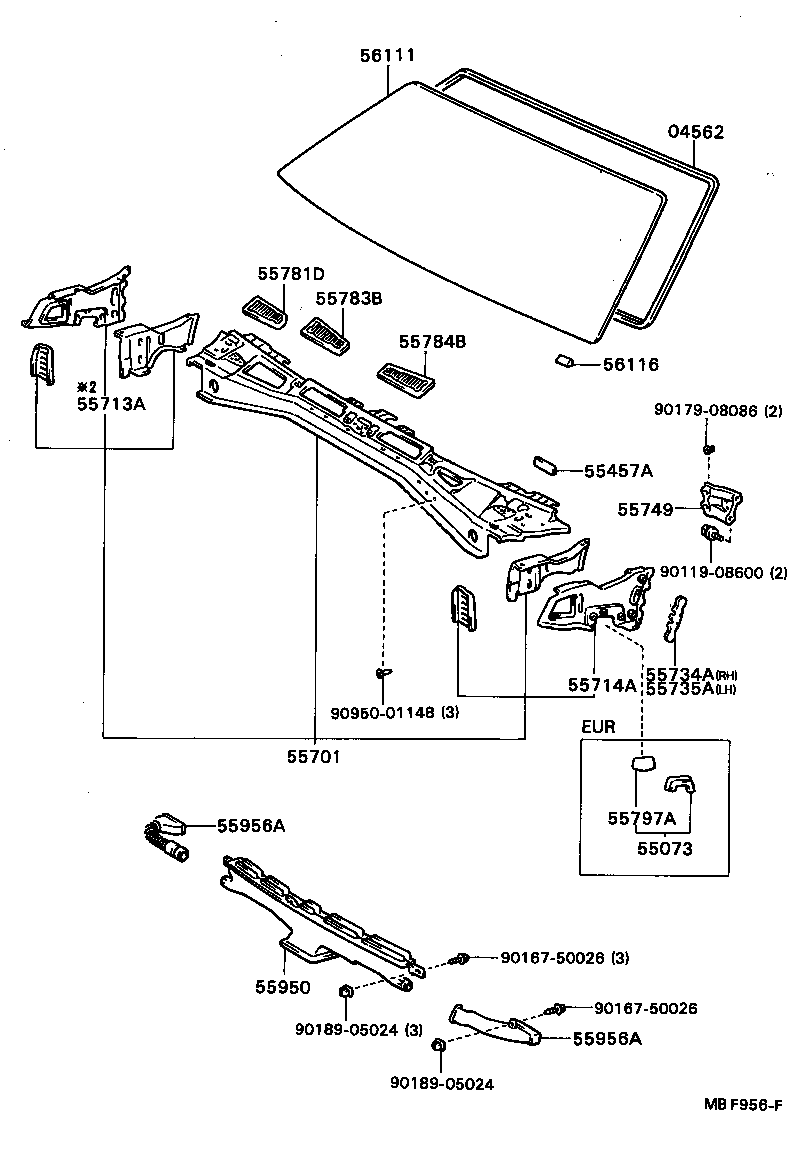

Click highlighted areas on diagram

diagram 04562 55073 55457A 55701 55713A 55714A 55734A 55735A 55749 55781D 55783B 55784B 55797A 55950 55956A 55956A 56111 56116 9011908600 9016750026 9016750026 9017908086 9018905024 9018905024 9095001148
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-14010

AT151,CT150,ST15#

 1
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-22030

AT151,CT150,ST15#

 4
55701 - PANEL SUB-ASSY, COWL
55700-20350

AT151..RHD

 1
55700-20351

AT151..RHD..(GEN,TH)

 1
55700-20351

AT151..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-20060

AT151,CT150,ST15#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-20060

AT151,CT150,ST15#

 1
55734A - PLATE, WATER GUARD, RH
55734-20060

AT151,CT150,ST150

 1
55734-20080

AT151,CT150,ST15#

TYPE A

 1
55734-20060

AT151,CT150,ST15#

TYPE B

 1
55735A - PLATE, WATER GUARD, LH
55735-20040

AT151,CT150,ST150

 1
55735-20040

AT151,CT150,ST15#

TYPE B

 1
55734-20080

AT151,CT150,ST15#

TYPE A

 1
55749 - BRACE, COWL TOP TO PILLAR, LH
55749-20030

AT151,CT150,ST15#..RHD

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-20100

AT151,CT150,ST15#..RHD

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-20060

AT151,CT150,ST15#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-20030

AT151,CT150,ST15#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-20040

AT151,CT150,ST15#..RHD

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-20040

AT151,CT150,ST15#..RHD

RH

 1
55970-20030

AT151,CT150,ST15#..RHD..(GEN,TH)

LH

 1
55971-20041

AT151,CT150,ST15#..RHD

RH

 1
55970-20030

AT151,CT150,ST150..RHD

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-20040

AT151,CT150,ST15#..RHD

RH

 1
55970-20030

AT151,CT150,ST15#..RHD..(GEN,TH)

LH

 1
55971-20041

AT151,CT150,ST15#..RHD

RH

 1
55970-20030

AT151,CT150,ST150..RHD

LH

 1
56111 - GLASS, WINDSHIELD
56111-20380

AT151..GEN,TH;AT151..EUG,FRG;CT150,ST15#..EUR,GEN,TH

*TZT,T=5.0

 1
56111-20420

AT151,CT150,ST15#..EUR,GEN,SAA

*TL,T=5.3

 1
56111-20400

AT151,CT150,ST15#..GEN,SAA

*TL,T=5.3,W/SUN SHADE

 1
56116 - SPACER, WINDSHIELD GLASS
56116-14070

AT151,CT150,ST15#

 2
Common parts
90119-08600
90167-50026
90179-08086
90189-05024
90950-01148
