AT151R-TEKDS (1983)
Toyota Corona/Carina 2
(8310- )RHD

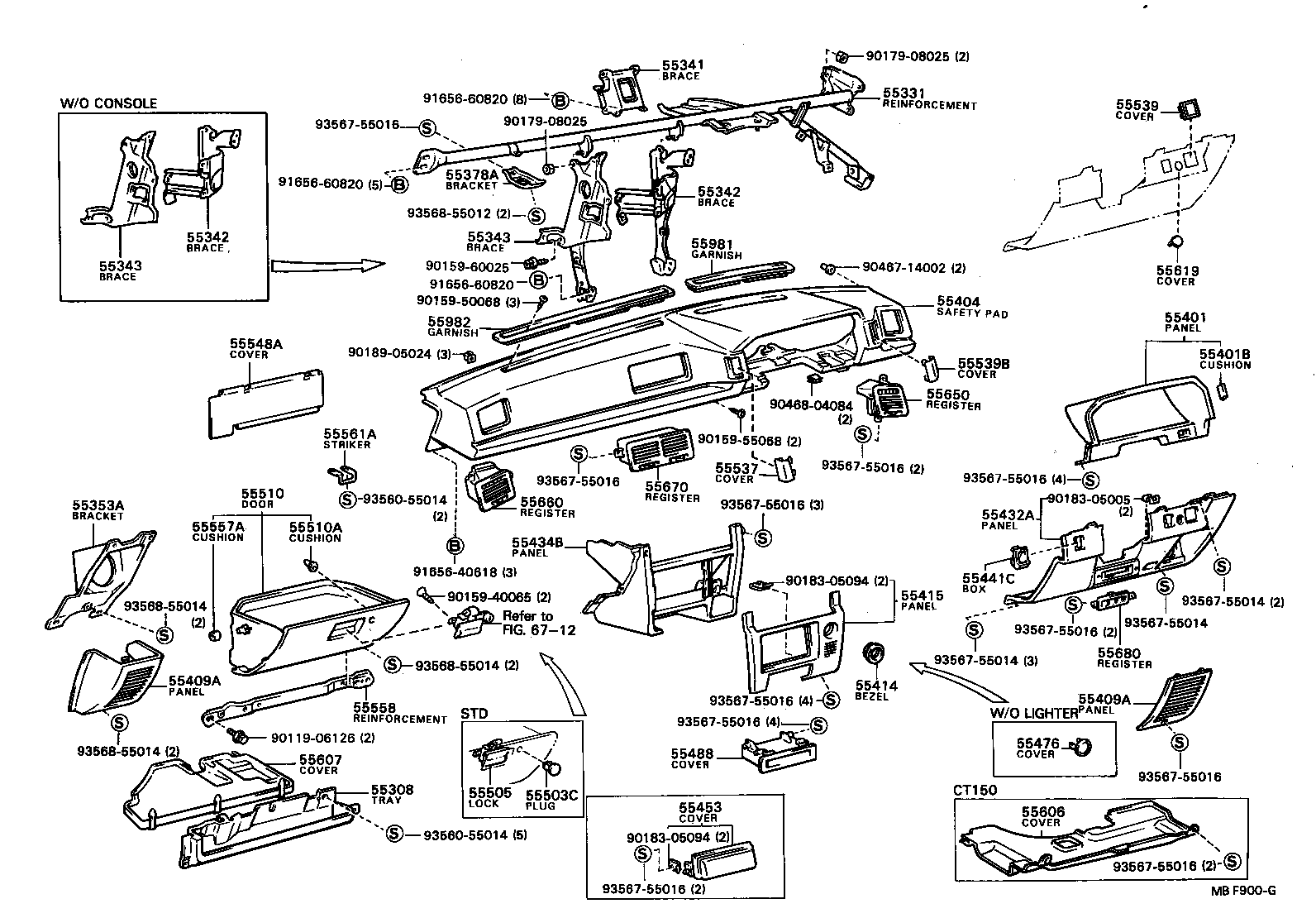

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55611-2006004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55611-2006003 |
AT151,CT150,ST15#..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55611-2006002 |
AT151,CT150,ST15#..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55611-2006014 |
AT151,CT150,ST15#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-20051 |
AT151,CT150,ST15#..RHD..(GEN,TH) |
1 | ||
| 55330-20050 |
AT151,CT150,ST150..RHD..GEN |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-20081 |
AT151,CT150,ST15#..RHD..(GEN,TH) |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55306-20080 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/FRONT CONSOLE |
1 | ||
| 55351-20040 |
AT151,CT150,ST150..RHD |
1 | ||
| 55351-20090 |
AT151,CT150,ST150..RHD..XL..GEN W/O FRONT CONSOLE |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55306-20080 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/FRONT CONSOLE |
1 | ||
| 55351-20040 |
AT151,CT150,ST150..RHD |
1 | ||
| 55351-20090 |
AT151,CT150,ST150..RHD..XL..GEN W/O FRONT CONSOLE |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55307-20080 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/FRONT CONSOLE |
1 | ||
| 55352-20060 |
AT151,CT150,ST150..RHD |
1 | ||
| 55352-20061 |
AT151,CT150,ST150..RHD..XL..GEN W/O FRONT CONSOLE |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55307-20080 |
AT151,CT150,ST15#..RHD..(EUR,GEN) W/FRONT CONSOLE |
1 | ||
| 55352-20060 |
AT151,CT150,ST150..RHD |
1 | ||
| 55352-20061 |
AT151,CT150,ST150..RHD..XL..GEN W/O FRONT CONSOLE |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-20030 |
AT151,CT150,ST15#..RHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-20060 |
AT151,CT150,ST15# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-20140 |
AT151,CT150,ST15#..RHD |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55629-14010 |
AT151,CT150,ST150 |
2 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-2044004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-2044014 |
AT151,CT150,ST15#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-2044003 |
AT151,CT150,ST15#..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55401-2044002 |
AT151,CT150,ST15#..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-2006004 |
AT151,CT150,ST150..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-2006003 |
AT151,CT150,ST15#..RHD RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55473-2005004 |
AT151,CT150,ST150..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-2006002 |
AT151,CT150,ST15#..RHD RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-2005002 |
AT151,CT150,ST15#..RHD LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-2005003 |
AT151,CT150,ST15#..RHD LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55473-2005014 |
AT151,CT150,ST15#..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-2006014 |
AT151,CT150,ST15#..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-2006004 |
AT151,CT150,ST150..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-2006003 |
AT151,CT150,ST15#..RHD RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55473-2005004 |
AT151,CT150,ST150..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-2006002 |
AT151,CT150,ST15#..RHD RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-2005002 |
AT151,CT150,ST15#..RHD LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-2005003 |
AT151,CT150,ST15#..RHD LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55473-2005014 |
AT151,CT150,ST15#..RHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-2006014 |
AT151,CT150,ST15#..RHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-20050 |
AT151,CT150,ST15# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-2023002 |
AT151,CT150,ST15#..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55412-2023003 |
AT151,CT150,ST15#..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55412-2023004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55412-2023014 |
AT151,CT150,ST15#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-2015004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55432-2015014 |
AT151,CT150,ST15#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55432-2015003 |
AT151,CT150,ST15#..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55432-2015002 |
AT151,CT150,ST15#..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-2003002 |
AT151,CT150,ST150..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55434-2003003 |
AT151,CT150,ST150..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55434-2003004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55434-2009004 |
AT151,CT150,ST15#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55434-2009003 |
AT151,CT150,ST15#..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55434-2009002 |
AT151,CT150,ST15#..RHD MAROON,MAROON,TRIM3# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2014002 |
AT151,CT150,ST15# DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 55441-2014014 |
AT151,CT150,ST15# BLUE,BLUE,TRIM8# |
1 | ||
| 55441-2014003 |
AT151,CT150,ST15# SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 55441-2014004 |
AT151,CT150,ST150 BLUE,BLUE,TRIM8# |
2 | ||
| 55441-2014024 |
AT151,CT150,ST15# BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-20050 |
AT151..SDZ;AT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA) |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AT151,CT150,ST15# |
1 | ||
| 55521-16010 |
AT151,CT150,ST15#..GEN,SAA |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2006004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-2006002 |
AT151,CT150,ST15#..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55550-2006003 |
AT151,CT150,ST15#..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55550-2006014 |
AT151,CT150,ST15#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AT151,CT150,ST15# |
3 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55537-2003004 |
AT151,CT150,ST150..RHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55537-2003002 |
AT151,CT150,ST15#..RHD..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55537-2003014 |
AT151,CT150,ST15#..RHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55537-2003003 |
AT151,CT150,ST15#..RHD..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 74267-2401003 |
AT151,CT150,ST15#..EUR,GEN,SAA SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 74267-2401012 |
AT151,CT150,ST150 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74267-2401004 |
AT151,CT150,ST150 BLUE,BLUE,TRIM8# |
1 | ||
| 74267-2401014 |
AT151,CT150,ST15#..EUR,GEN,SAA BLUE,BLUE,TRIM8# |
1 | ||
| 74267-2401012 |
AT151,CT150,ST15#..EUR,GEN,SAA DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74267-2401003 |
AT151,CT150,ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55528-2001004 |
AT151,CT150,ST150..RHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55528-2001003 |
AT151,CT150,ST15#..RHD..(GEN,TH) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55528-2001002 |
AT151,CT150,ST15#..RHD..(GEN,TH) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55528-2001014 |
AT151,CT150,ST15#..RHD..(GEN,TH) BLUE,BLUE,TRIM8# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-20040 |
AT151,CT150,ST15# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
AT151,CT150,ST150 |
2 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-20010 |
AT151,CT150,ST15#..RHD W/UNDER TRAY |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
AT151,CT150,ST15# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-2009003 |
AT151,CT150,ST150..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55650-2009002 |
AT151,CT150,ST150..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55650-2009004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-2009002 |
AT151,CT150,ST15#..RHD..(GEN,TH) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55650-2009014 |
AT151,CT150,ST15#..RHD..(GEN,TH) BLUE,BLUE,TRIM8# |
1 | ||
| 55650-2009003 |
AT151,CT150,ST15#..RHD..(GEN,TH) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2003003 |
AT151,CT150,ST150..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55660-2003002 |
AT151,CT150,ST150..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55660-2003002 |
AT151,CT150,ST15#..RHD..(GEN,TH) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55660-2003003 |
AT151,CT150,ST15#..RHD..(GEN,TH) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55660-2003004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55660-2003014 |
AT151,CT150,ST15#..RHD..(GEN,TH) BLUE,BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-2003003 |
AT151,CT150,ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55670-2003002 |
AT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55670-2003003 |
AT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55670-2003014 |
AT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55670-2003002 |
AT151,CT150,ST150 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55670-2003004 |
AT151,CT150,ST150 BLUE,BLUE,TRIM8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-32010 |
AT151,CT150,ST15#..RHD..(GEN,TH) |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-2003003 |
AT151,CT150,ST15#..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55981-2003004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55981-2003014 |
AT151,CT150,ST15#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55981-2003002 |
AT151,CT150,ST15#..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-2003003 |
AT151,CT150,ST15#..RHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55982-2003004 |
AT151,CT150,ST150..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55982-2003014 |
AT151,CT150,ST15#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55982-2003002 |
AT151,CT150,ST15#..RHD DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90159-40065 | ||||
| 90159-50068 | ||||
| 90159-55068 | ||||
| 90159-60025 | ||||
| 90179-08025 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90189-05024 | ||||
| 90467-14002 | ||||
| 90468-04084 | ||||
| 91656-40618 | ||||
| 91656-60820 | ||||
| 93560-55014 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 6712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
