AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

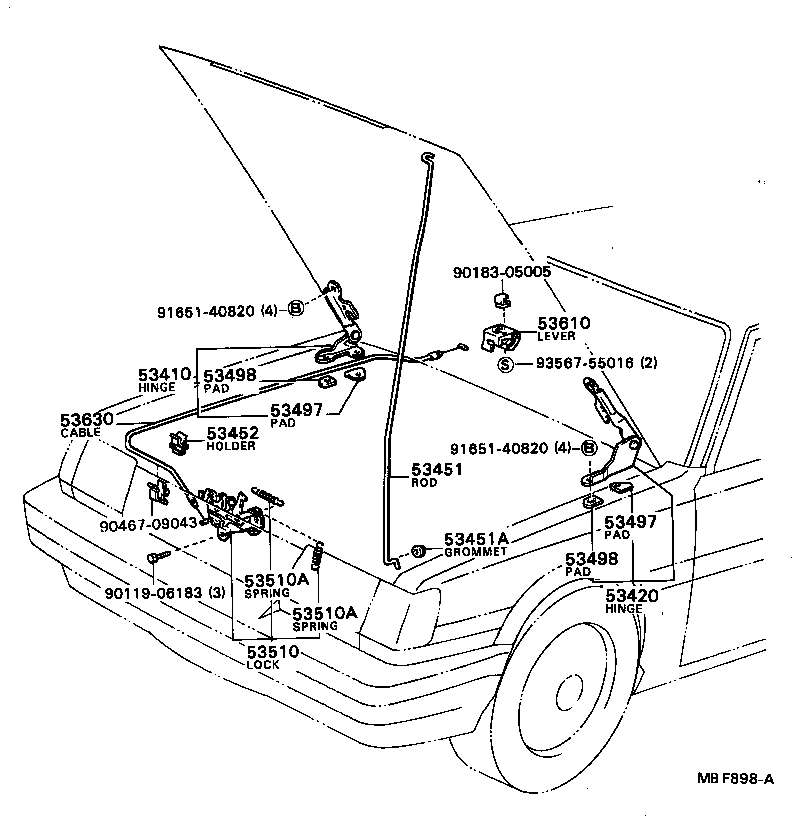

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53498 53498 53510 53510A 53510A 53610 53630 9011906183 9018305005 9046709043 9165140820 9165140820 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-12050

AT151,CT150,ST15#

 1
53410-12080

AT151,CT150,ST150

 1
53420 - HINGE ASSY, HOOD, LH
53420-12070

AT151,CT150,ST150

 1
53420-12040

AT151,CT150,ST15#

 1
53451 - ROD, HOOD SUPPORT
53451-20020

AT151,CT150,ST150

 1
53451-20050

AT151,CT150,ST150

 1
53451-20020

AT151,CT150,ST15#..GEN,SAA,TH

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15011

AT151,CT150,ST15#

 1
53452 - HOLDER, HOOD STAY
53452-90351

AT151,CT150,ST15#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12010

AT151,CT150,ST15#

T=1.0

 2
53497 - PAD, HOOD HINGE, NO.1
53497-12010

AT151,CT150,ST15#

T=1.0

 2
53498 - PAD, HOOD HINGE, NO.2
53498-12010

AT151,CT150,ST15#

 2
53498 - PAD, HOOD HINGE, NO.2
53498-12010

AT151,CT150,ST15#

 2
53510 - LOCK ASSY, HOOD
53510-20130

AT151,CT150,ST15#..RHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AT151,CT150,ST15#

WD=2.0,CW=17,WD=2.0,OD=1.5

 1
90506-09029

AT151,CT150,ST15#

WD=0.9,WD=0.9,OD=9.0

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AT151,CT150,ST15#

WD=2.0,CW=17,WD=2.0,OD=1.5

 1
90506-09029

AT151,CT150,ST15#

WD=0.9,WD=0.9,OD=9.0

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-2006002

AT151,CT150,ST15#

DEEP MAROON,RED/MAROON,TRIM3#

 1
53601-2006034

AT151,CT150,ST15#

BLUE,BLUE,TRIM8#

 1
53601-2006014

AT151,CT150,ST150

BLUE,BLUE,TRIM8#

 1
53601-2006003

AT151,CT150,ST15#

SHADOW GRAY,GRAY,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-20140

AT151,CT150,ST15#

 1
Common parts
90119-06183
90183-05005
90467-09043
91651-40820
93567-55016
