AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

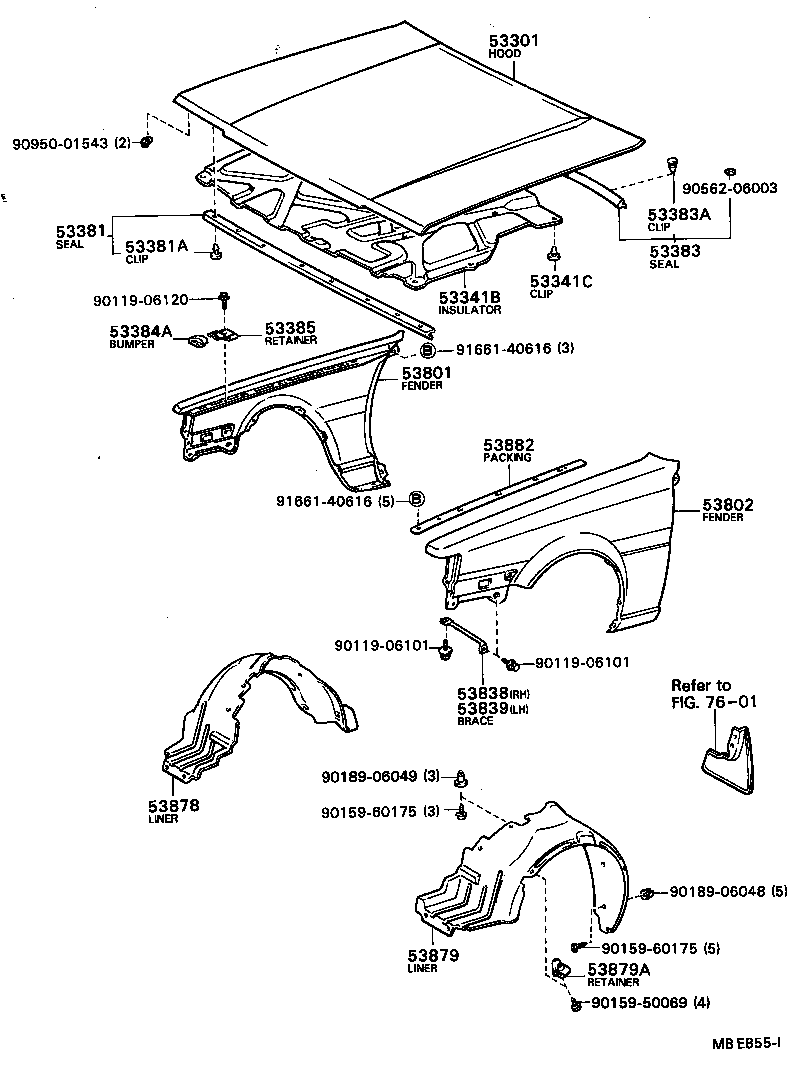

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53383 53383A 53384A 53385 53801 53802 53838 53839 53878 53879 53879A 53882 7601 9011906101 9011906101 9011906120 9015950069 9015960175 9015960175 9018906048 9018906049 9056206003 9095001543 9166140616 9166140616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-20180

AT151,CT150,ST15#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20070

AT151,CT150,ST15#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AT151,CT150,ST15#

 8
53383 - SEAL, HOOD TO COWL TOP
53383-20050

AT151,CT150,ST15#

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08044

AT151,CT150,ST15#

CENTER

 7
90467-08044

AT151,CT150,ST150

 9
90467-08050

AT151,CT150,ST15#

SIDE

 2
53384A - BUMPER, FENDER TO HOOD
53384-14030

AT151,CT150,ST15#

 2
53385 - RETAINER, HOOD, BUMPER
53385-14010

AT151,CT150,ST15#

RH

 1
53386-14010

AT151,CT150,ST15#

LH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-20740

AT151,CT150,ST15#..SED..RHD..(GEN,TH)

*GIS

 1
53801-20740

AT151,CT150,ST150..SED..(GL,XL)..GEN

*GIS

 1
53801-20730

AT151,CT150,ST150..GEN,SAA

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-20740

AT151,CT150,ST150..GEN,SAA

 1
53802-20750

AT151,CT150,ST15#..SED..RHD..(GEN,TH)

*GIS

 1
53802-20750

AT151,CT150,ST150..SED..(GL,XL)..GEN

*GIS

 1
53838 - BRACE, FRONT FENDER, RH
53835-20030

AT151,CT150,ST15#

 1
53839 - BRACE, FRONT FENDER, LH
53835-20030

AT151,CT150,ST15#

 1
53878 - LINER, FRONT FENDER, RH
53875-20060

AT151,CT150,ST15#

 1
53879 - LINER, FRONT FENDER, LH
53876-20070

AT151,CT150,ST15#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AT151,CT150,ST15#

 8
53882 - PACKING, FRONT FENDER MAIN
53882-20050

AT151,CT150,ST15#

 2
Common parts
90119-06101
90119-06120
90159-50069
90159-60175
90189-06048
90189-06049
90562-06003
90950-01543
91661-40616
Linked diagrams
7601
