AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8508)SED..EUR,GEN ; (8508-8608)XL..TH

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52526A 52526A 52711 9011912007 9015960096 9017906086 9018906048 9166540820 9166540820 9166640618 9166640618 9166640618
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-20170

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
52011-20120

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-20090

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 1
52012-20120

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20180

AT151,CT150,ST15#..EUR,GEN,SAA

 1
52115-20120

AT151,CT150,ST150

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20160

AT151,CT150,ST15#..EUR,GEN,SAA

 1
52116-20100

AT151,CT150,ST150

 1
52119A - COVER, FRONT BUMPER
52119-20100

AT151,CT150,ST150..DX,GL,XL

W/*UB,W/O *HC

 1
52119-20120

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER,W/O *HC

 1
52119-20260

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
52119-20280

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 8
52565-12040

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 8
52526-20020

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 8
52565-12040

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 8
52526-20020

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52711 - MOULDING, FRONT BUMPER
52711-20030

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52711-20040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 1
52711-20100

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52711-20090

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
Common parts
90119-12007
90159-60096
90179-06086
90189-06048
91665-40820
91666-40618

(8310-8508)DX,GL,XL ; (8508-8608)GL..TH

Click highlighted areas on diagram

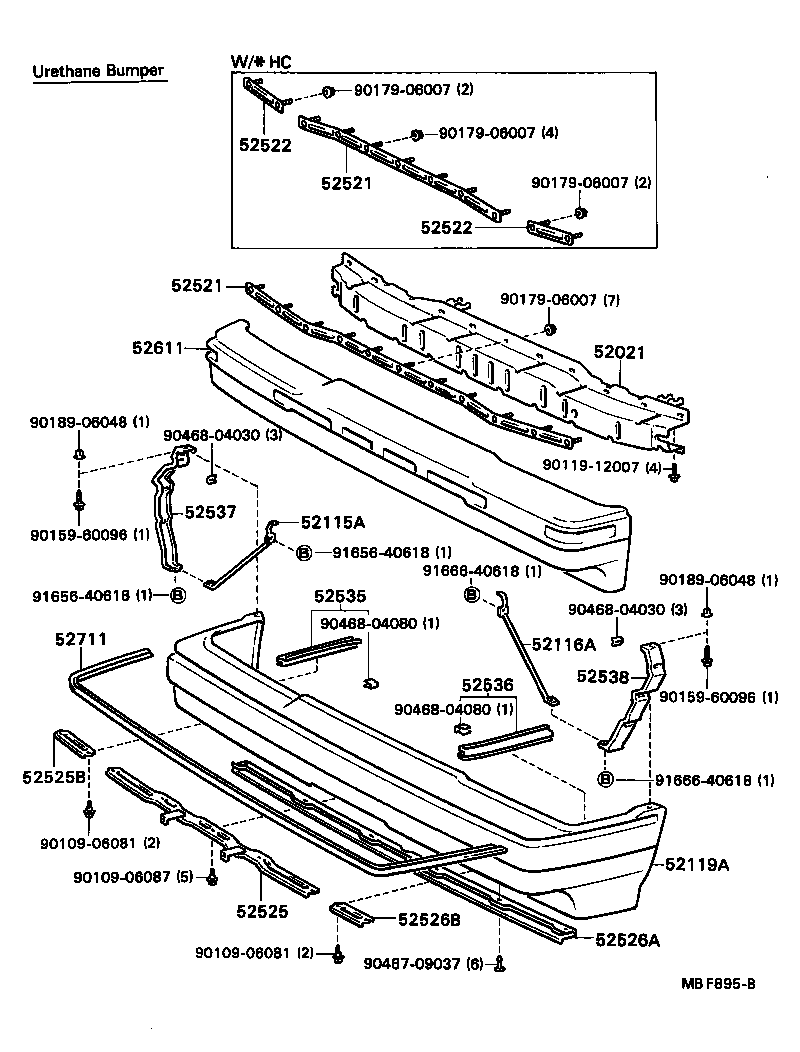

diagram 52021 52115A 52116A 52119A 52521 52521 52522 52522 52525 52525B 52526A 52526B 52535 52536 52537 52538 52611 52711 9010906081 9010906081 9010906087 9011912007 9015960096 9015960096 9017906007 9017906007 9017906007 9017906007 9018906048 9018906048 9046709037 9046804030 9046804030 9046804080 9046804080 9165640618 9165640618 9166640618 9166640618
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20060

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52021-20130

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20180

AT151,CT150,ST15#..EUR,GEN,SAA

 1
52115-20120

AT151,CT150,ST150

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20160

AT151,CT150,ST15#..EUR,GEN,SAA

 1
52116-20100

AT151,CT150,ST150

 1
52119A - COVER, FRONT BUMPER
52119-20100

AT151,CT150,ST150..DX,GL,XL

W/*UB,W/O *HC

 1
52119-20120

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER,W/O *HC

 1
52119-20260

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
52119-20280

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20030

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB,W/O *HC

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20030

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB,W/O *HC

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20030

AT151,CT150,ST150..DX,GL,XL

W/*UB,W/O *HC

 1
52506-20080

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-14030

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 8
52565-12040

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 8
52526-20020

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-14030

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20020

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52535-20010

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20010

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52536-20020

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52537 - RETAINER, FRONT BUMPER END, RH
52537-20020

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52537-20010

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52538 - RETAINER, FRONT BUMPER END, LH
52538-20020

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52538-20010

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20030

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52611-20080

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52711 - MOULDING, FRONT BUMPER
52711-20030

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52711-20040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 1
52711-20100

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52711-20090

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
Common parts
90109-06081
90109-06087
90119-12007
90159-60096
90179-06007
90189-06048
90467-09037
90468-04030
90468-04080
91656-40618
91666-40618

(8508- )SED..EUR,GEN

Click highlighted areas on diagram

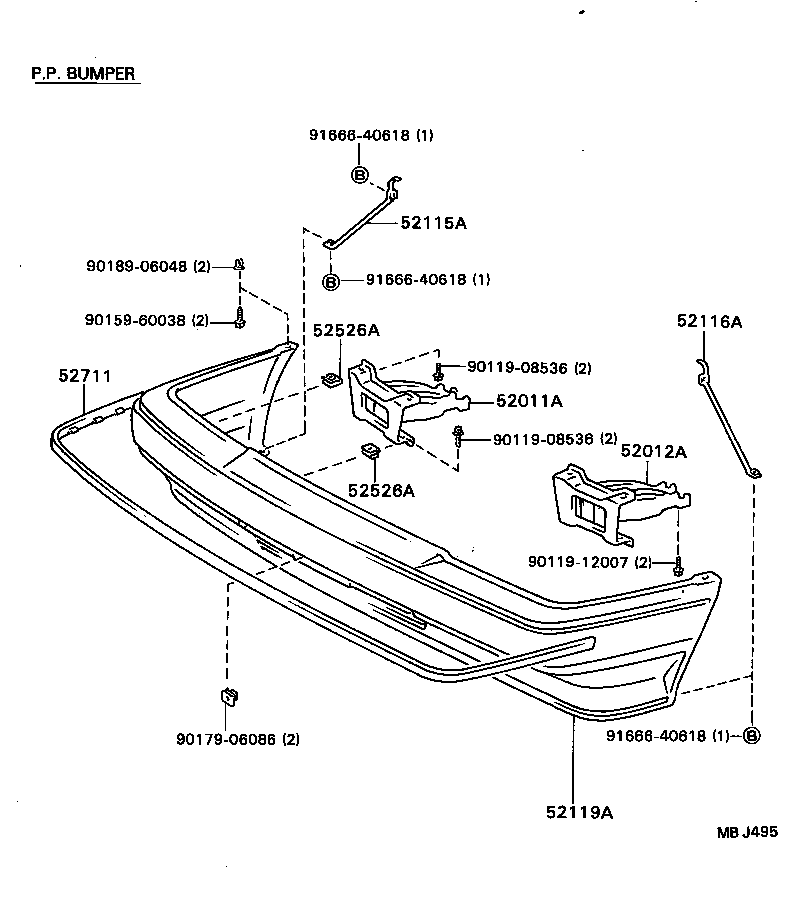

diagram 52011A 52012A 52115A 52116A 52119A 52526A 52526A 52711 9011908536 9011908536 9011912007 9015960038 9017906086 9018906048 9166640618 9166640618 9166640618
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-20170

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
52011-20120

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-20090

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 1
52012-20120

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20180

AT151,CT150,ST15#..EUR,GEN,SAA

 1
52115-20120

AT151,CT150,ST150

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20160

AT151,CT150,ST15#..EUR,GEN,SAA

 1
52116-20100

AT151,CT150,ST150

 1
52119A - COVER, FRONT BUMPER
52119-20100

AT151,CT150,ST150..DX,GL,XL

W/*UB,W/O *HC

 1
52119-20120

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER,W/O *HC

 1
52119-20260

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
52119-20280

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 8
52565-12040

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 8
52526-20020

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 8
52565-12040

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 8
52526-20020

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52711 - MOULDING, FRONT BUMPER
52711-20030

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52711-20040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 1
52711-20100

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52711-20090

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
Common parts
90119-08536
90119-12007
90159-60038
90179-06086
90189-06048
91666-40618

(8508- )EUR,GEN,SAA

Click highlighted areas on diagram

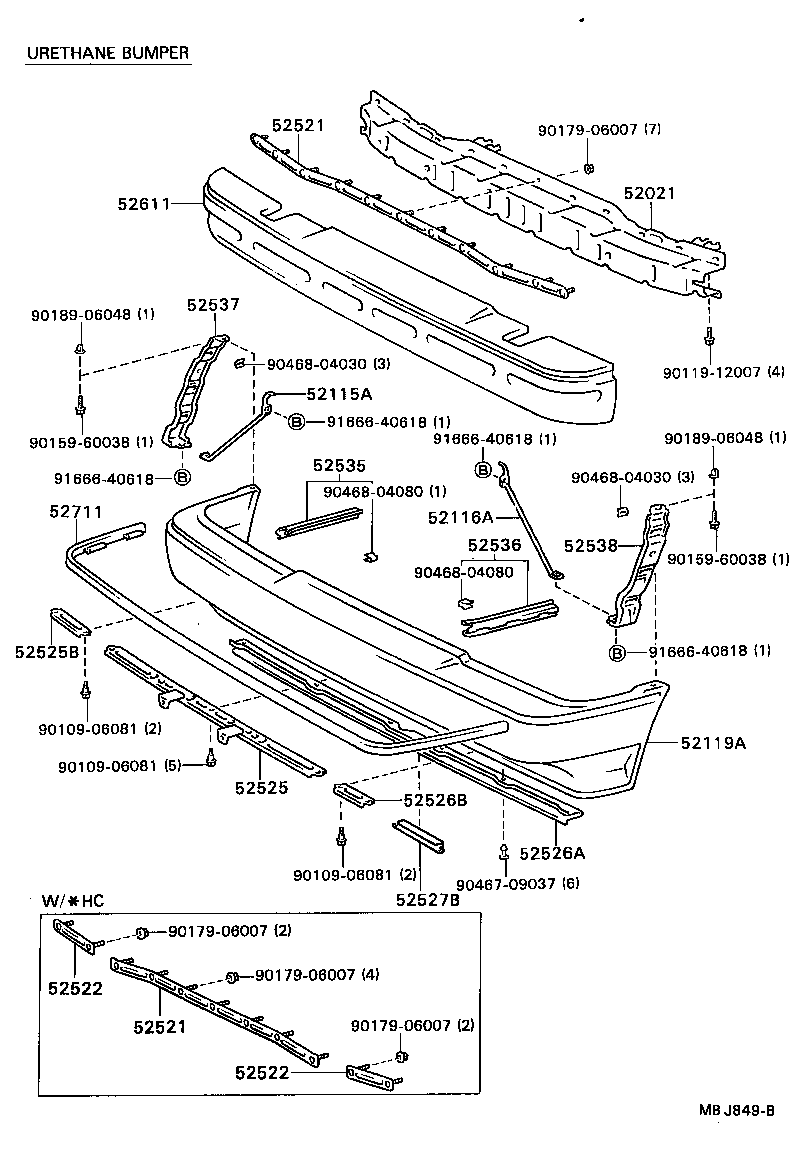

diagram 52021 52115A 52116A 52119A 52521 52521 52522 52522 52525 52525B 52526A 52526B 52527B 52535 52536 52537 52538 52611 52711 9010906081 9010906081 9010906081 9011912007 9015960038 9015960038 9017906007 9017906007 9017906007 9017906007 9018906048 9018906048 9046709037 9046804030 9046804030 9046804080 9046804080 9166640618 9166640618 9166640618 9166640618
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20060

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52021-20130

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20180

AT151,CT150,ST15#..EUR,GEN,SAA

 1
52115-20120

AT151,CT150,ST150

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20160

AT151,CT150,ST15#..EUR,GEN,SAA

 1
52116-20100

AT151,CT150,ST150

 1
52119A - COVER, FRONT BUMPER
52119-20100

AT151,CT150,ST150..DX,GL,XL

W/*UB,W/O *HC

 1
52119-20120

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER,W/O *HC

 1
52119-20260

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
52119-20280

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20030

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB,W/O *HC

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20030

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB,W/O *HC

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20030

AT151,CT150,ST150..DX,GL,XL

W/*UB,W/O *HC

 1
52506-20080

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-14030

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 8
52565-12040

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 8
52526-20020

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-14030

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

W/*UB

 1
52527B - RETAINER, FRONT BUMPER, LOWER NO.2
52527-20010

AT151,CT150,ST15#..EUR,GEN,SAA

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20020

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52535-20010

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20010

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52536-20020

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52537 - RETAINER, FRONT BUMPER END, RH
52537-20020

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52537-20010

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52538 - RETAINER, FRONT BUMPER END, LH
52538-20020

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52538-20010

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20030

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52611-20080

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52711 - MOULDING, FRONT BUMPER
52711-20030

AT151,CT150,ST150..DX,GL,XL

W/*UB

 1
52711-20040

AT151,CT150,ST150..SED..(EUR,GEN)

W/PP BUMPER

 1
52711-20100

AT151,CT150,ST15#..EUR,GEN,SAA

W/*UB

 1
52711-20090

AT151,CT150,ST150..SED..GEN

W/PP BUMPER

 1
Common parts
90109-06081
90119-12007
90159-60038
90179-06007
90189-06048
90467-09037
90468-04030
90468-04080
91666-40618
