AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

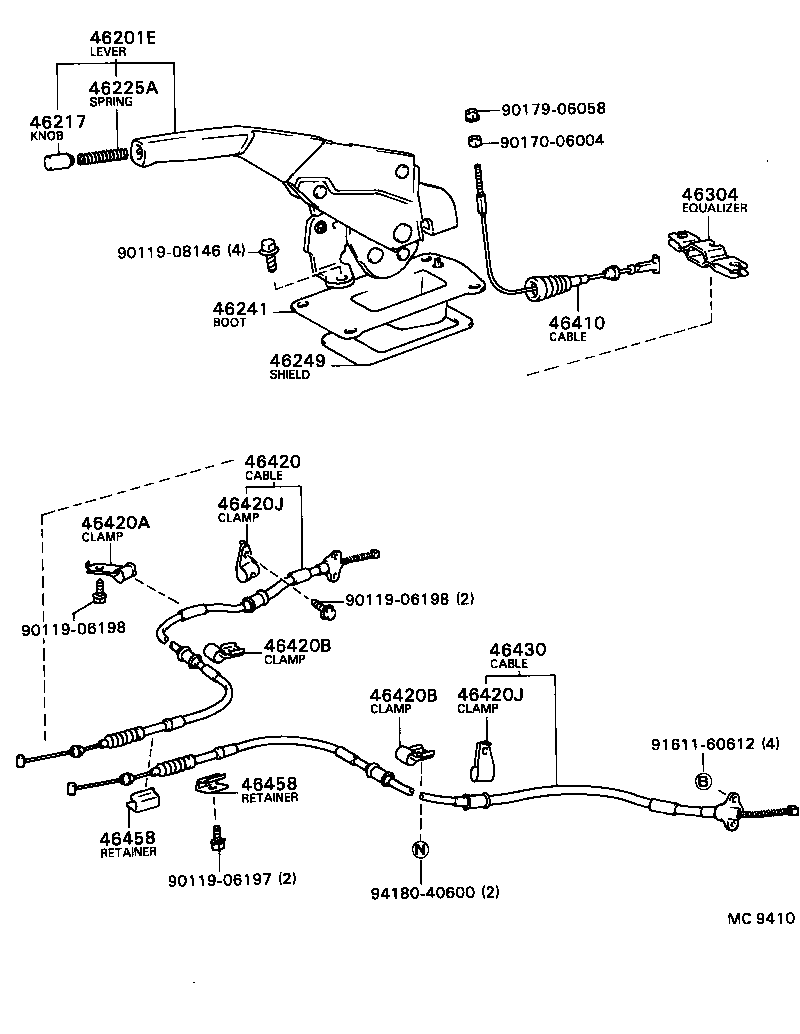

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46304 46410 46420 46420A 46420B 46420B 46420J 46420J 46430 46458 46458 9011906197 9011906198 9011906198 9011908146 9017006004 9017906058 9161160612 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2012002

CT150;AT151..EUR;AT151,ST150..STD,XL

MAROON,RED/MAROON,TRIM3#

 1
46201-2012004

CT150;AT151..EUR;AT151,ST150..STD,XL

BLUE,BLUE,TRIM8#

 1
46201-2012014

AT151,CT150,ST150..DX,XL

BLUE,BLUE,TRIM8#

 1
46201-2012003

AT151,CT150,ST150..DX,XL

GRAY,GRAY,TRIM1#

 1
46201-2012002

AT151,CT150,ST150..DX,XL

MAROON,RED/MAROON,TRIM3#

 1
46201-2012003

CT150;AT151..EUR;AT151,ST150..STD,XL

GRAY,GRAY,TRIM1#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002022

AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F

DEEP MAROON,RED/MAROON,TRIM3#

 1
46217-2002004

AT151,CT150,ST150

BLUE,BLUE,TRIM8#

 1
46217-1002014

AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F

BLUE,BLUE,TRIM8#

 1
46217-2002024

AT151,CT150,ST15#

BLUE,BLUE,TRIM8#

 1
46217-1002033

AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F

SHADOW GRAY,GRAY,TRIM1#

 1
46217-2002003

AT151,CT150,ST15#

GRAY,SHADOW GRAY,TRIM1#

 1
46217-2002002

AT151,CT150,ST15#

MAROON,DEEP MAROON,TRIM3#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069

AT151,CT150,ST15#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20050

AT151,CT150,ST15#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20020

AT151,CT150,ST15#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-20040

AT151,CT150,ST15#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20230

AT151,CT150,ST15#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-39015

AT151,CT150,ST150

 1
46420-39016

AT151,CT150,ST15#

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01017

AT151,CT150,ST15#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016

AT151,CT150,ST15#

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016

AT151,CT150,ST15#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015

AT151,CT150,ST15#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015

AT151,CT150,ST15#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-29015

AT151,CT150,ST150

 1
46430-29016

AT151,CT150,ST15#

 1
46458 - RETAINER, CABLE
46458-20020

AT151,CT150,ST15#

 2
46458 - RETAINER, CABLE
46458-20020

AT151,CT150,ST15#

 2
Common parts
90119-06197
90119-06198
90119-08146
90170-06004
90179-06058
91611-60612
94180-40600
