AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )AT151..RHD..GL,XL..EUR,GEN

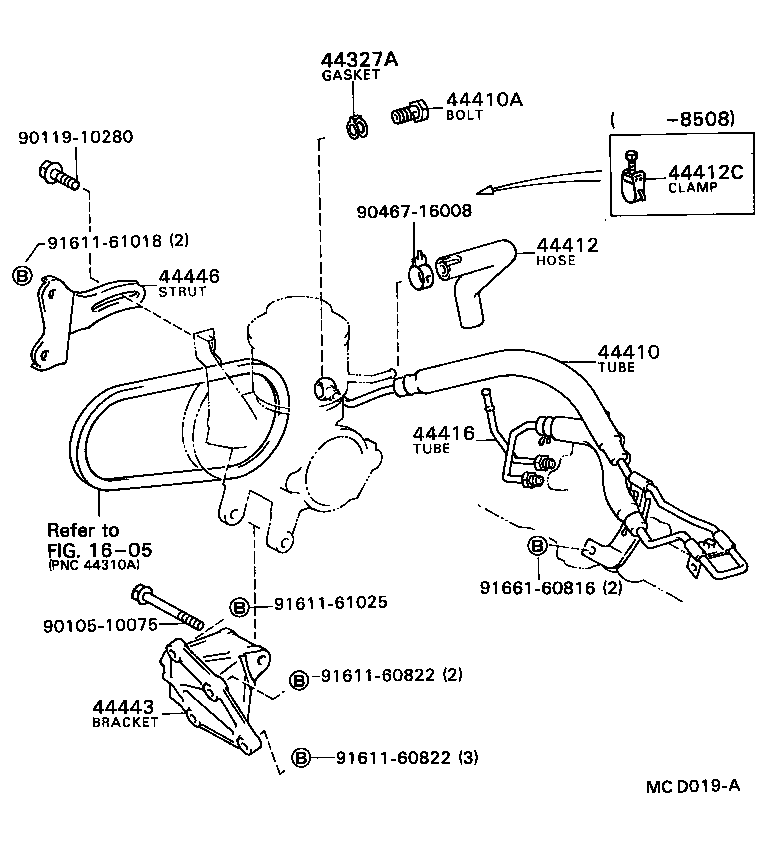

Click highlighted areas on diagram

diagram 1605 44327A 44410 44410A 44412 44412C 44416 44443 44446 9010510075 9011910280 9046716008 9161160822 9161160822 9161161018 9161161025 9166160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-20180

AT151..LB..RHD..4FC;AT151..RHD..(3FC,4F,5F)..(GL,XL)

 1
44410-20201

AT151..RHD..(GL,XL)..(EUR,GEN)

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT151,CT150..(DX,GL,XL)..(EUR,GEN,SAA)

 1
44412 - HOSE, RETURN
44412-12120

AT151..RHD..(GL,XL)..(EUR,GEN)

 1
44412C - CLAMP(FOR RETURN HOSE)
90460-01001

AT151..RHD..(GL,XL)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12140

AT151..RHD..(GL,XL)..(EUR,GEN)

 1
44443 - BRACKET, PUMP
44443-12050

AT151..(DX,GL,XL)..(EUR,GEN,SAA)

 1
44446 - STRUT, ADJUSTING
44446-12030

AT151..(DX,GL,XL)..(EUR,GEN,SAA)

 1
Common parts
90105-10075
90119-10280
90467-16008
91611-60822
91611-61018
91611-61025
91661-60816
Linked diagrams
1605
