AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8508)4AL..GEN ; (8508- )4AL..MTM..GEN,SAA,TH

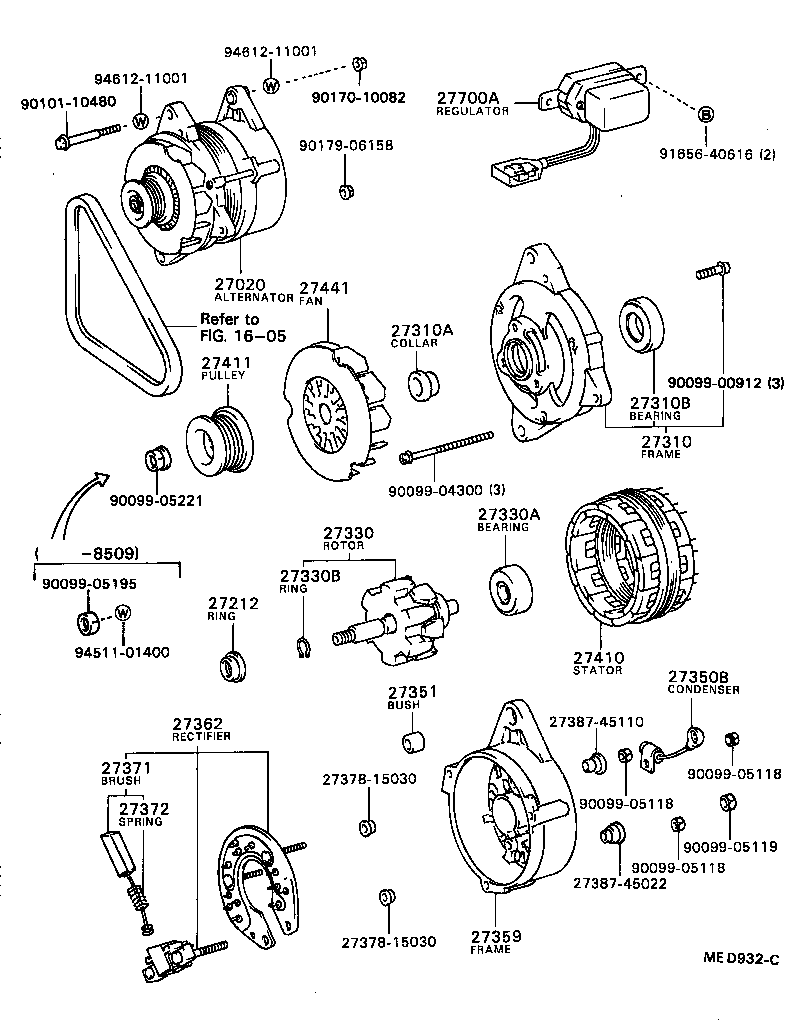

Click highlighted areas on diagram

diagram 1605 27020 27212 27310 27310A 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27441 27700A 9009900912 9009904300 9009905118 9009905118 9009905118 9009905119 9009905195 9009905221 9010110480 9017010082 9017906158 9165640616 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-16040

4AL..AT151..GEN

12V 45A

 1
27020-16040

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-15100

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27212-39050

4AL..AT151..GEN

12V 45A

 1
27412-15100

4AL..AT151..GEN

12V 45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16040

4AL..AT151..GEN

12V 45A

 1
27310-16041

4AL..AT151..GEN

12V 45A

 1
27310-16041

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-63030

4AL#..AT151

12V 45A,50A

 1
27412-16040

4AL#..AT151

12V 45A,50A

 1
27412-16030

4AL#..AT151

12V 45A,50A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-16040

4AL..AT151..GEN

12V 45A

 1
27330-15100

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27330-15100

4AL..AT151..GEN

12V 45A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
90099-10111

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
90099-10116

4AL..AT151..MTM..GEN

12V 45A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
90099-07048

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16040

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27359-16040

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27362-18011

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

4ALC..AT151..SDZ;4AL,1SL..AT151,ST150

12V 45A,50A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27410-38120

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-15150

4AL..AT151;4ALC..AT151..SDZ

12V 45A,50A

 1
27441 - FAN, ALTERNATOR
27441-16040

4AL,1SL..AT151,ST150..GEN,SAA

12V 45A

 1
27441-16040

4AL..AT151..MTM..(GEN,SAA,TH)

12V 45A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15040

4AL#,2CL,1SL..AT151,CT150,ST150

12V 45A,50A,55A,60A

 1
27700-15040

4AL,2CL,1SL..AT151,CT150,ST150..GEN,SAA,TH

12V 45A,50A

 1
Common parts
27378-15030
27387-45022
27387-45110
90099-00912
90099-04300
90099-05118
90099-05119
90099-05195
90099-05221
90101-10480
90170-10082
90179-06158
91656-40616
94511-01400
94612-11001
Linked diagrams
1605
